• Model NO.：HY400
• Productivity：12-14m³,H
• Feeding Height：1800 mm
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Chassis：off-Road
• Tread：1880
• Wheelbase：2250mm
• Loader Bucket Loader Capacity：0.6m3
• Engine Rated Power/Rpm：92kw,2200rpm
• Transport Package：Nude
• Specification：12675KG
• Trademark：SINOMADA
• Origin：China Hunan
• HS Code：8465416254
• Production Capacity：10 Units,Month

Basic Info.

Model NO. HY400 Productivity 12-14m³/H Feeding Height 1800 mm Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Yellow Chassis off-Road Tread 1880 Wheelbase 2250mm Loader Bucket Loader Capacity 0.6m3 Engine Rated Power/Rpm 92kw/2200rpm Transport Package Nude Specification 12675KG Trademark SINOMADA Origin China Hunan HS Code 8465416254 Production Capacity 10 Units/Month

Product Description

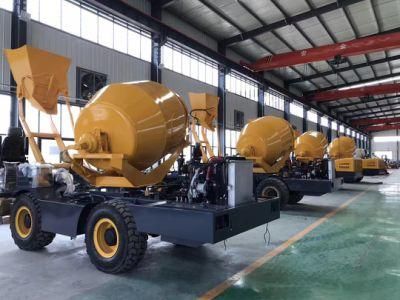

Self loading concrete mixer truck HY400 for sale
 Features&Advantages:
Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.

High efficiency:
Capacity:12-14cubic meters per hour
Labor-saving
4 WD
Accurate electric weighing system
The mixing unit is hydraulic slewing 270 degree for high discharge over 1.8m to the four sides of the vehicle
Loading,weighing,pumping,mixing,delivering and discharge

Ultimate tank capacity technology:
can discharge with different angles
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
Loading capacity is larger for the same volume
The center of gravity is low for the same loading capacity
Swing tank easy discharge to different way
High-strength wear-resistant application
Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.
Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%

New exterior styling:
Overall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience

Efficient hydraulic drive system:
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.

High precision weighing system:
It can be used for aggregate weighing in the process of loading,thus ensuring that concrete meets the construction requirements and weighing precision within ±3%

Four-dimensional mixing technology:
Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%
Unique continuous trace design is used,with residual rate≤0.4%
Large gliding angle is designed at rear cone,to ensure fast discharge at idle speed

Safe and flexible operation system:
Longitudinal resistance-free design is used,to provided more flexible manipulation
Front and rear linkage double-limit structure is used,to provide higher safety

Convenient water supply system:
Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.
Liner water tank structure is used with service life increased by 50%

Cabin:
Front cab on side of loading shovel
ROPS-FOPS type complete wit double closing door,camera,air conditioning,available upon Reques
Joystick:All hydraulic functions of shovel controlled by a single joystick
Loading shovel:effective capacity per loading complete with hydraulic opening gate with bigger blade.
Working table controlled by microcomputer, water temperature, oil temperature, current are all insight
Adjustable seat, convenient and comfortable to use
South Korea Swing motor with better quality

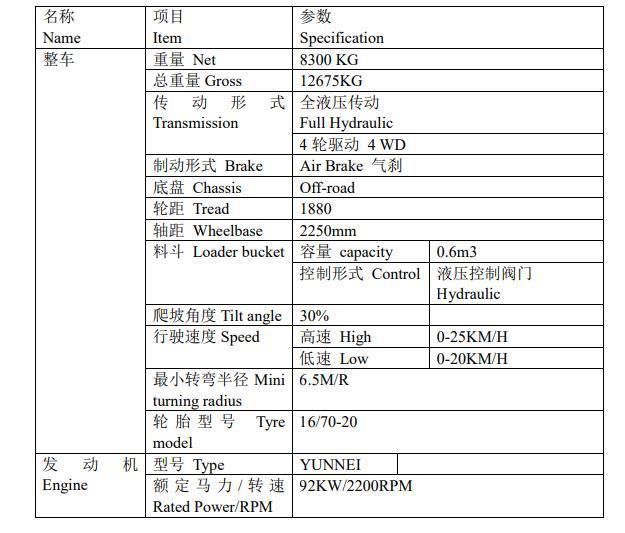

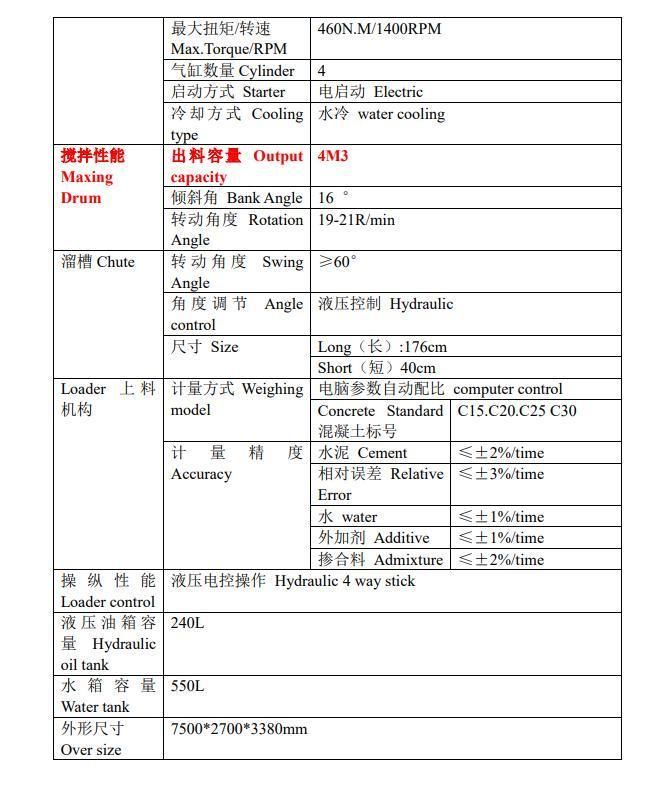

Main Specification:
