3.5m3 Portable Concrete Mixer in Weifang, Concrete Mixer 3500L
QINGDAO KONO DEERE MACHINERY CO., LTD.- Type：Concrete Mixer
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Rotor Type
- Productivity：240m²,h
- Feeding Height：1400mm
Base Info
- Model NO.：KD3500
- Vibrating Amplitude：2.6mm
- Certification：ISO9001: 2000
- Condition：New
- Color：Optional
- Name：3.5m3 Portable Concrete Mixer in Weifang, Concrete
- Capacity：3500L
- Transport Package：Nude Packing
- Specification：4.0m3
- Trademark：kono deere
- Origin：China
- HS Code：8705400000
- Production Capacity：30sets ,Month
Description
Transmission
Hydraulic
4 wheel driver,2 wheel steering
Tyre size
16/70-20
Engine
YUCHAI
Model
YUCHAI 4108
Diesel Water-cooled
85 KW
Speed Range
F1:1-8 KM/H
F2:8-25 KM/H
R1:1-8 KM/H
R2:8-15 KM/H
Gear on chassis
Power shift with CVT gearshift
Discharge
270°,discharging concrete
JOYMIX
One joystick control main functions
Weight
7200kg
Overall dimension(L*W*H)
7.5×2.3×3.2m

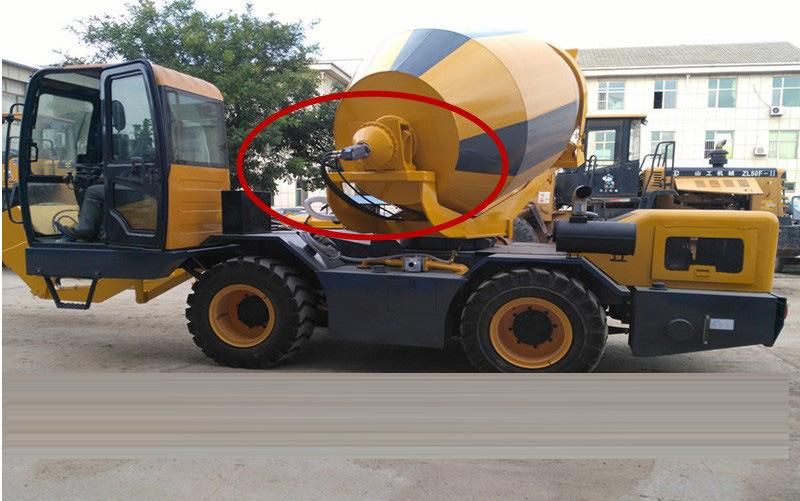

1.Name:Swing drum
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.

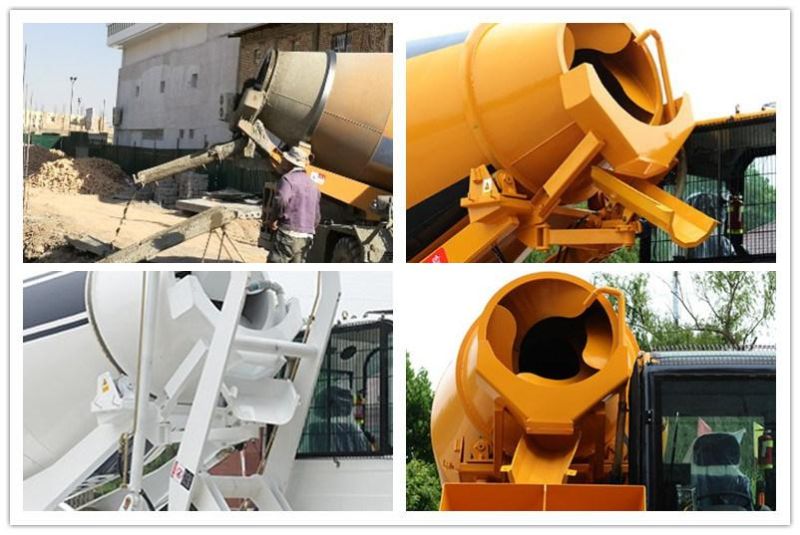

2.Detachable chute
Easy to dischange to different angles and transport

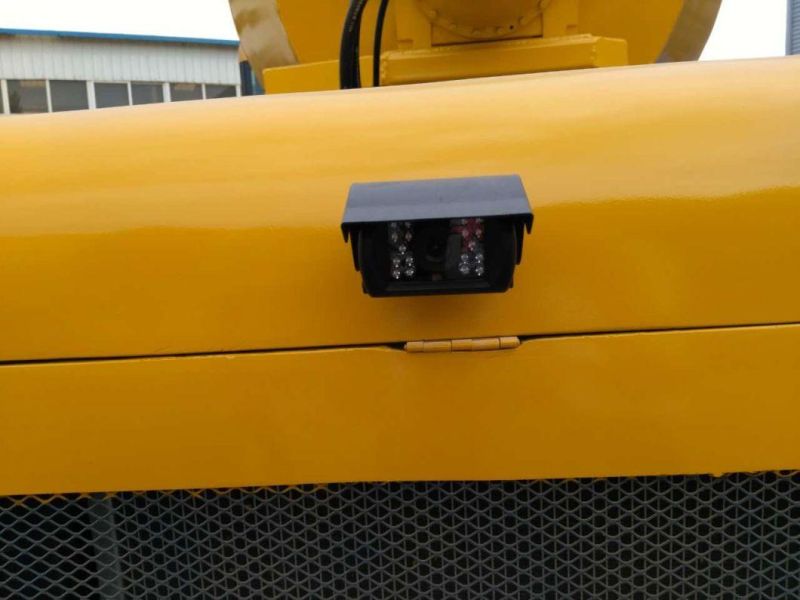

3.Rear view camera ,making the drive easy

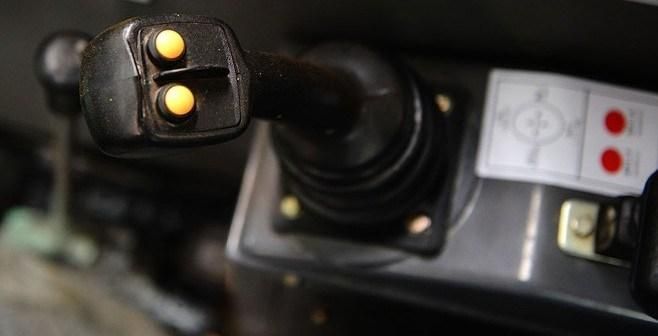

4.Joystick control , easy control
5.Bigger capacity rotary motor

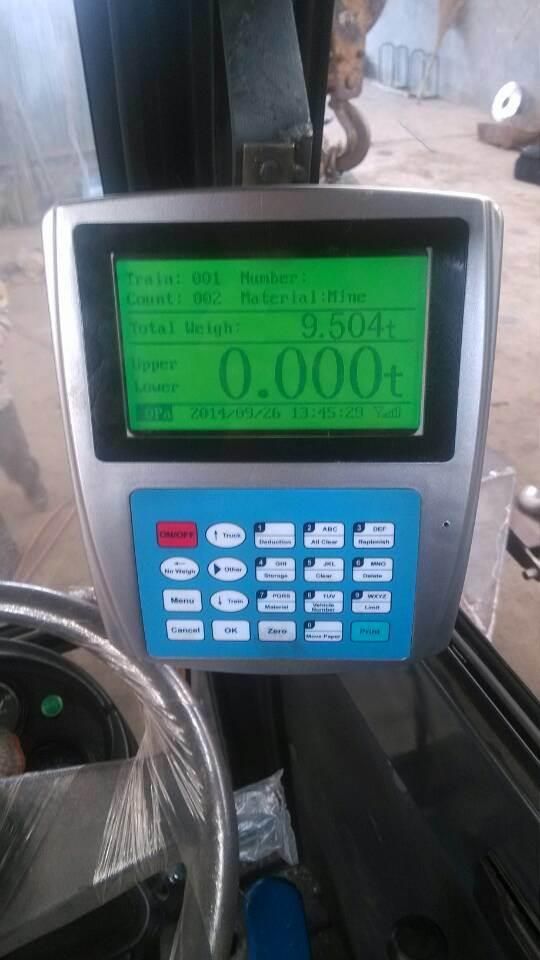

6.High precision weighing system
