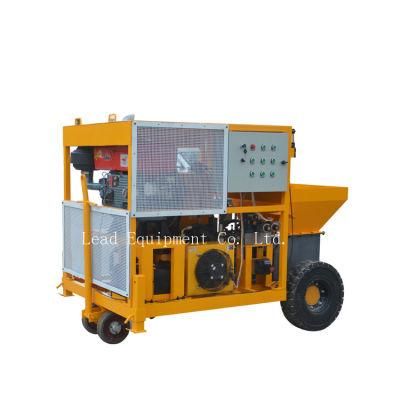

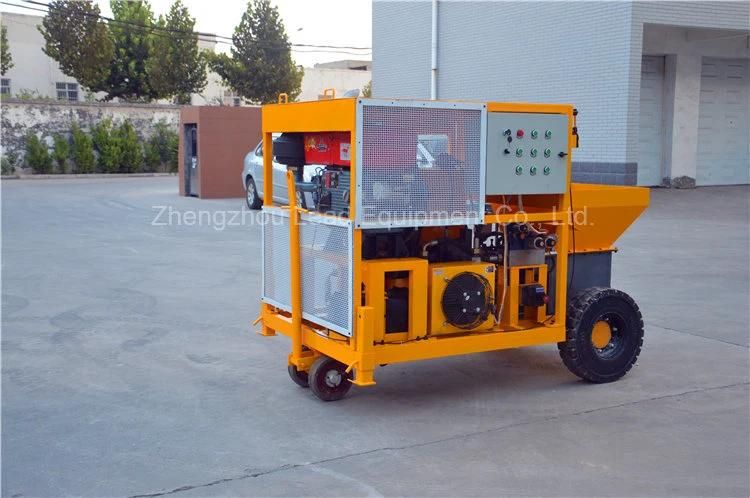

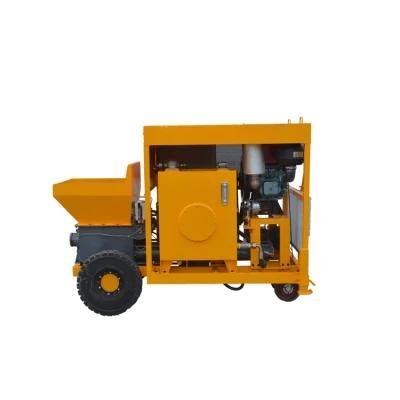

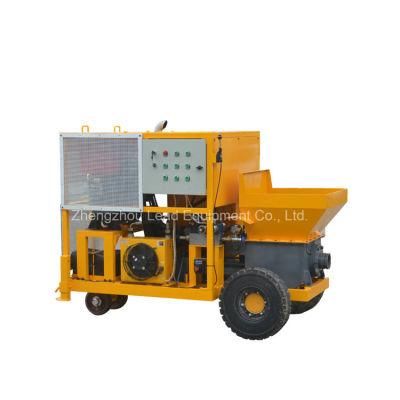

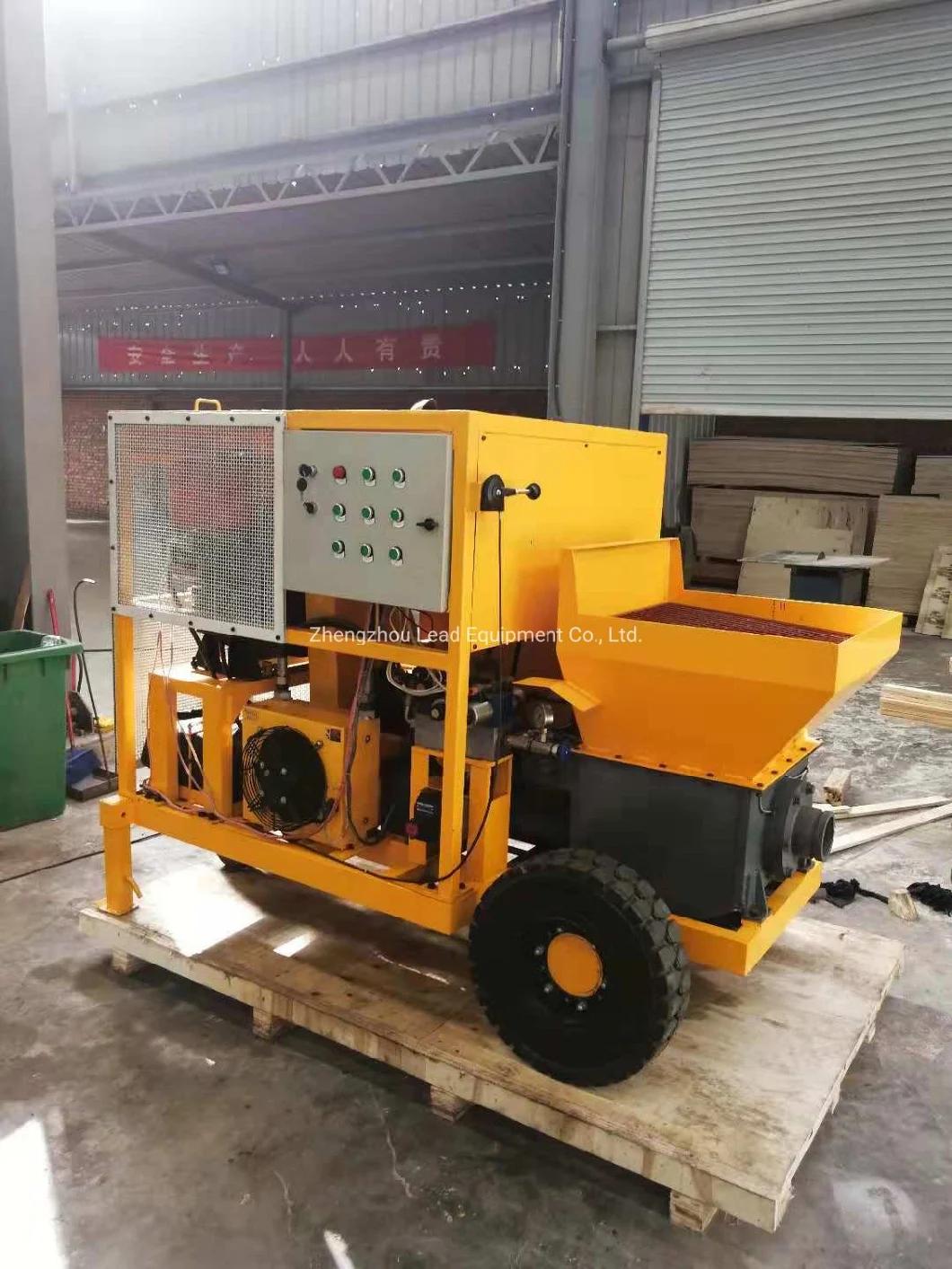

Fine Stone Mini Portable Lightweight Concrete Pump for Sale

Zhengzhou Lead Equipment Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Productivity：3-7m3 ,H
  • Certification：ISO9001: 2000, CE
  • Condition：New

Base Info

  • Model NO.：LMP7,35D
  • Color：Yellow
  • Pump Work Pressure：35 Bar
  • Cylinder Diameter：120mm
  • Cylinder Stroke：360mm
  • Concrete Slump：15 -25cm
  • Acceptable Max. Aggregate Size：20mm
  • Conveying Hose Inner Diameter：80,100mm
  • Net Weight：1190kg

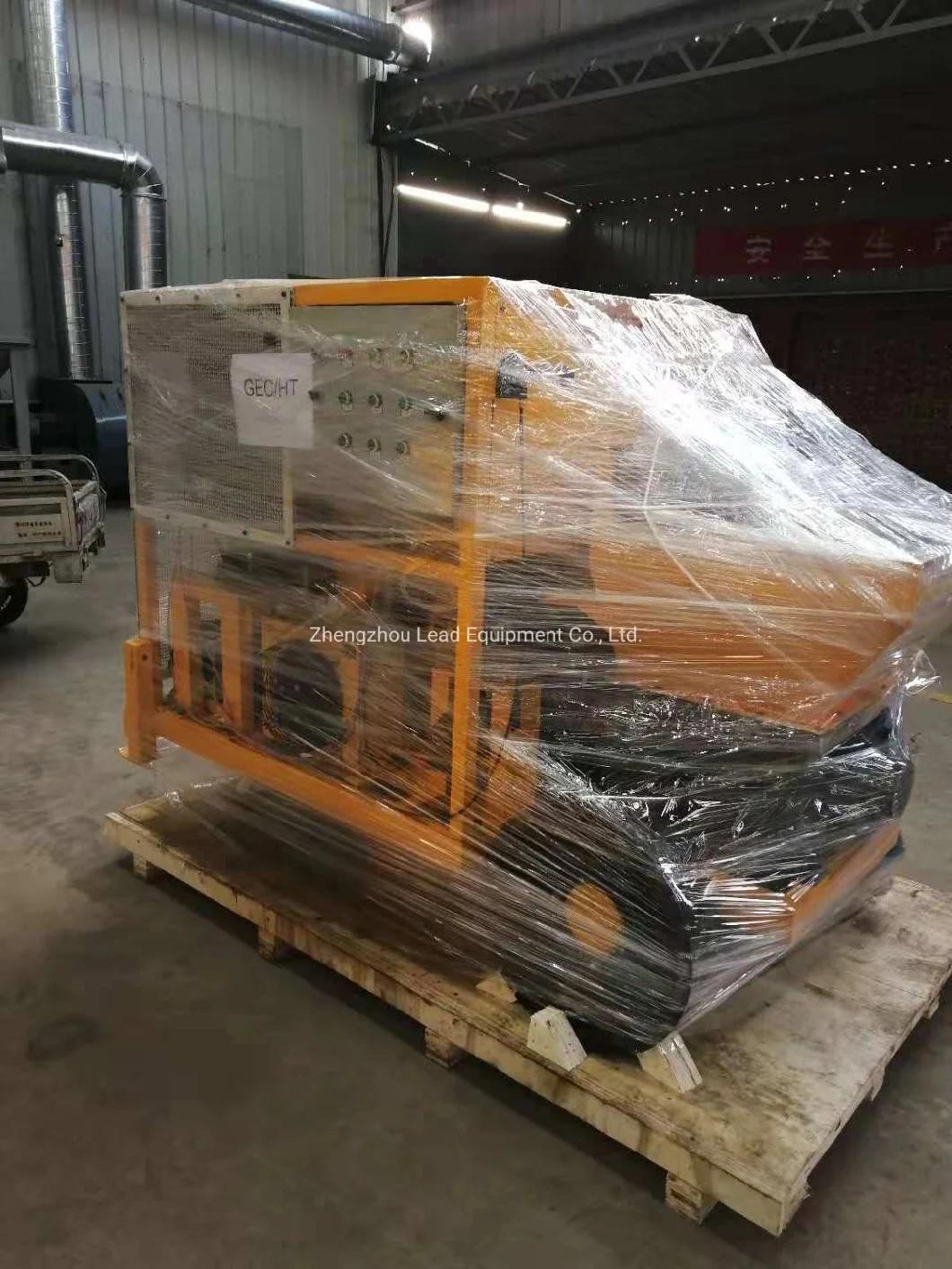

  • Transport Package：Standard Export Packing or as Your Request
  • Specification：2200*1250*1600mm
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：8413400000
  • Production Capacity：1000 Set,Year

Description

Model

LMP7/35

Rated Output

3-7m3 /h

Pump work pressure

35 Bar

Acceptable Max. Aggregate Size

20mm

Cylinder diameter

120mm

Cylinder Stroke

360mm

Pump Valve

S Valve

Max. Horizontal Conveying Distance

90m

Max. Vertical Conveying Distance

30m

Concrete Slump

15 -25cm

Conveying Hose Inner Diameter

80/100mm

Diesel engine

23kw/2200rpm single cylinder, water cooling

Dimension(L × W × H)

2200*1250*1600mm

Net Weight

1190kg
