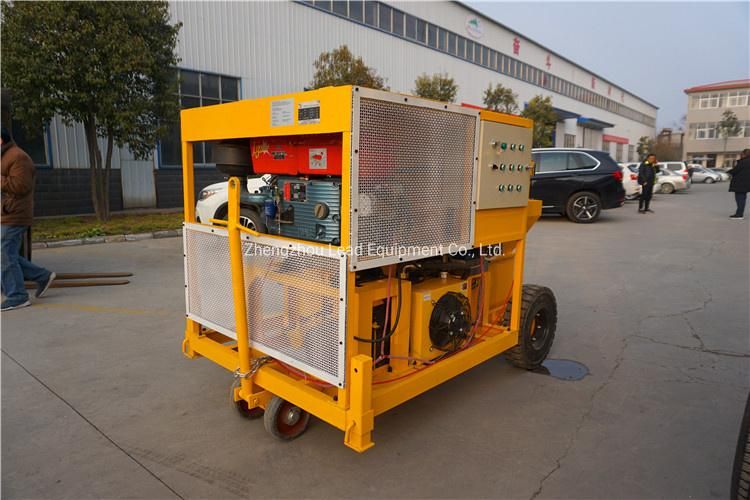

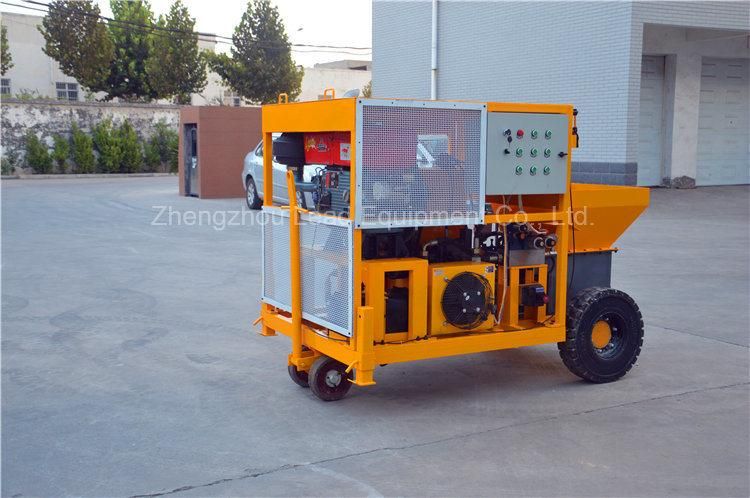

Chinese Manufacture Concrete Pump Price with Diesel Engine
Zhengzhou Lead Equipment Co., Ltd.- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Productivity：3-7m3 ,H
- Certification：CE
- Condition：New
Base Info
- Model NO.：LMP7,35D
- Color：Yellow
- Pump Work Pressure：35 Bar
- Cylinder Diameter：120mm
- Cylinder Stroke：360mm
- Concrete Slump：15 -25cm
- Acceptable Max. Aggregate Size：20mm
- Conveying Hose Inner Diameter：80,100mm
- Net Weight：1190kg
- Transport Package：Standard Export Packing or as Your Request
- Specification：2200*1250*1600mm
- Trademark：Leadcrete
- Origin：China
- HS Code：8413400000
- Production Capacity：1000 Set,Year
Description
Model
LMP7/35
Rated Output
3-7m3 /h
Pump work pressure
35 Bar
Acceptable Max. Aggregate Size
20mm
Cylinder diameter
120mm
Cylinder Stroke
360mm
Pump Valve
S Valve
Max. Horizontal Conveying Distance
90m
Max. Vertical Conveying Distance
30m
Concrete Slump
15 -25cm
Conveying Hose Inner Diameter
80/100mm
Diesel engine
23kw/2200rpm single cylinder, water cooling
Dimension(L × W × H)
2200*1250*1600mm
Net Weight
1190kg
