Best Heavy Equipment New Mini Motor Grader with Scarifier and Moldboard

Sinoway Industrial (Shanghai) Co., Ltd.
  • Warranty:1 Year
  • Certification:ISO, CE

Base Info

  • Model NO.:SWG130-II
  • Condition:New
  • Application:Railway, Farmland, Highway
  • Transmission:Hydraulic - Mechanical
  • Walking Mode:Wheeled
  • Type:Small Grader
  • Brand:Sinoway
  • Model:Swg130-II
  • Engine Make:Cummins
  • Engine Power:97kw
  • Steering:Articulated
  • Blade Width:3355mm
  • Weight:10650kg
  • Front Dozer:Optional
  • Rear Ripper:Optional
  • Unique Selling Point:Long Lifetime
  • Spare Parts Supply:Available
  • on-Site Service:Available
  • After Warranty Service:Available
  • Transport Package:Nude
  • Specification:ISO9001
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:84292090
  • Production Capacity:1000 Units Per Year
  • Package size per unit product:850.00cm * 260.00cm * 330.00cm
  • Gross weight per unit product:12000.000kg

Description

Basic Info.

Model NO. SWG130-II Condition New Application Railway, Farmland, Highway Transmission Hydraulic - Mechanical Walking Mode Wheeled Type Small Grader Brand Sinoway Model Swg130-II Engine Make Cummins Engine Power 97kw Steering Articulated Blade Width 3355mm Weight 10650kg Front Dozer Optional Rear Ripper Optional Unique Selling Point Long Lifetime Spare Parts Supply Available on-Site Service Available After Warranty Service Available Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84292090 Production Capacity 1000 Units Per Year

Packaging & Delivery

Package size per unit product 850.00cm * 260.00cm * 330.00cm Gross weight per unit product 12000.000kg

Product Description

Product Description

The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation.

The 6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability and flexibility are guaranteed.

The rear axle is 3-section drive axle with NO-SPIN self-locking differential.

Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.

The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is guaranteed.

The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible steering.

The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.

The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.

Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.

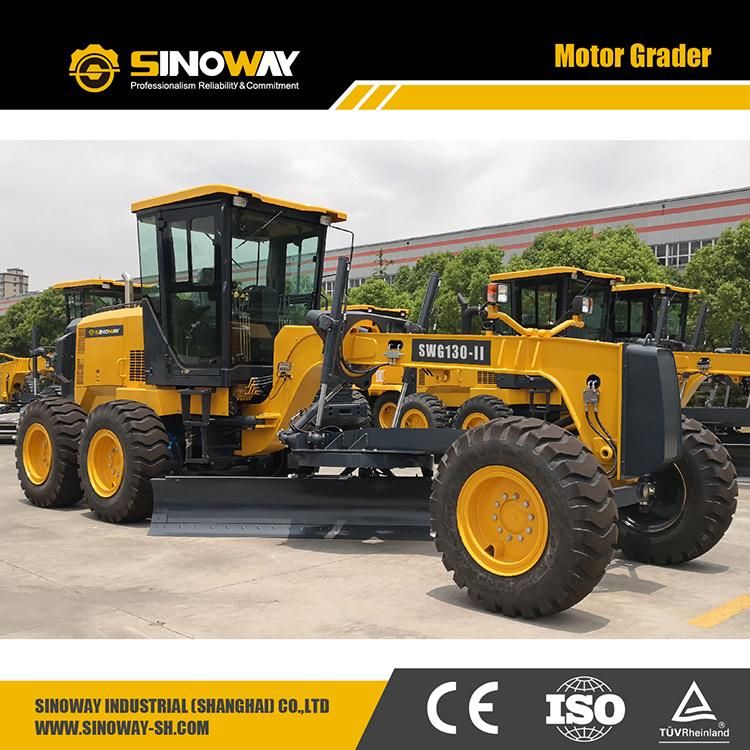

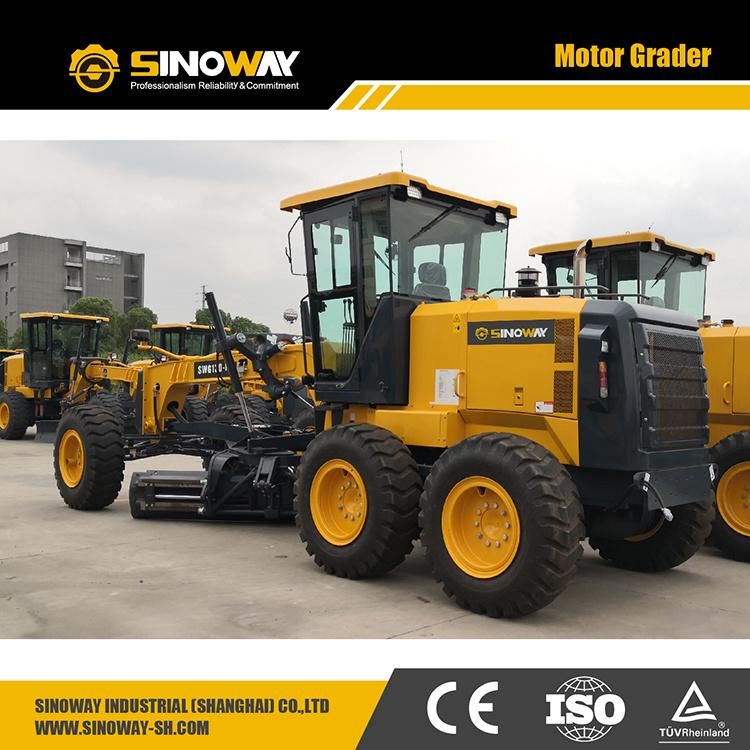

Best Heavy Equipment New Mini Motor Grader with Scarifier and MoldboardProduct Show
Best Heavy Equipment New Mini Motor Grader with Scarifier and MoldboardBest Heavy Equipment New Mini Motor Grader with Scarifier and Moldboard
Best Heavy Equipment New Mini Motor Grader with Scarifier and MoldboardBest Heavy Equipment New Mini Motor Grader with Scarifier and Moldboard
Specifications

Engine
ModelCummins
TypeSix-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power97KW
Rated speed2300rpm
Transmission System
Torque conveter type3 elements, single stage
Torque ratio1.5~3
Cooling typeOil cooled, pressure circulation
Gearbox typePower shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)F6/R3
Forward/Reverse I5.31/5.31
Forward/Reverse II8.21/13.33
Forward/Reverse III13.33/30.55
Forward IV20.47
Forward V30.55
Forward VI44.9
Steering System
Front wheel steering angle45º(L/R)
Articulated steering angle25º(L/R)
Drive typeDual action cylinder
Axle
Drive typeFour wheel drive(6×4)
Front axle ground clearance630mm
Front wheel lean17º(L/R)
Oscillation±15º
Drive axleThree stages with No-SPIN differential
Working Equipment
Control systemHydraulic drive system
Hydraulic pumpGear pump
Control valveTwo sets, five pieces per set
Control pressure18MPa
Hydraulic oil cylinderDual action cylinder
Max. tractive force73.5KN
Max. lift above ground450mm
Ground penetration500mm
Blade width3660mm
Blade cycling360º
Max. bank cutting angle90º(L/R)
Operating weight14000kg
Braking System
Service brakeHydraulic caliper disc brake actuate 4 rear wheels
Parking brakeHand operated hoop brake
Dimensions
Overall length8500mm
Overall width(wheel outside)2600mm
Overall height3500mm
Wheel base6062mm
Front tread2150mm
Rear tread2340mm
Tyre size17.5-25
Service Capacities
Fuel tank228L
Engine crank case19L
Hydraulic tank130L
Gear box21L
Rear axle28L
Balance box23L(each)
Worm gear case2.5L
Tandem Drive
TypeSwing type with roller chain transmission
Speed ratio18.03
