Construction Grader 15 Ton Road Scraper for Gravel and Soil Leveling

Sinoway Industrial (Shanghai) Co., Ltd.
  • After-sales Service:Available
  • Warranty:1 Year
  • Certification:ISO, RoHS, CE, ISO9001: 2000
  • Condition:New
  • Application:Railway, Mine, Farmland, Highway
  • Transmission:Hydraulic - Mechanical

Base Info

  • Model NO.:SWG165-II
  • Walking Mode:Wheeled
  • Type:Medium-sized Grader
  • Engine Make:Cummins
  • Engine Power:170HP
  • Drive Type:6X4
  • Blade Width:4268 mm
  • Max. Bank Cutting Angle:90 Degree
  • Color:Yellow
  • Volve:Husco
  • Operating Weight:15 Ton
  • Rear Ripper:Optional
  • Front Dozer:Optional
  • Transport Package:Nude
  • Specification:ISO2008
  • Trademark:Sinoway
  • Origin:China
  • HS Code:84292092
  • Production Capacity:30 Units,Month

Description

Basic Info.

Model NO. SWG165-II Walking Mode Wheeled Type Medium-sized Grader Engine Make Cummins Engine Power 170HP Drive Type 6X4 Blade Width 4268 mm Max. Bank Cutting Angle 90 Degree Color Yellow Volve Husco Operating Weight 15 Ton Rear Ripper Optional Front Dozer Optional Transport Package Nude Specification ISO2008 Trademark Sinoway Origin China HS Code 84292092 Production Capacity 30 Units/Month

Product Description

Highlights of SINOWAY SWG165-II Motor Graders

The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6 forward gears and 3 reverse gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

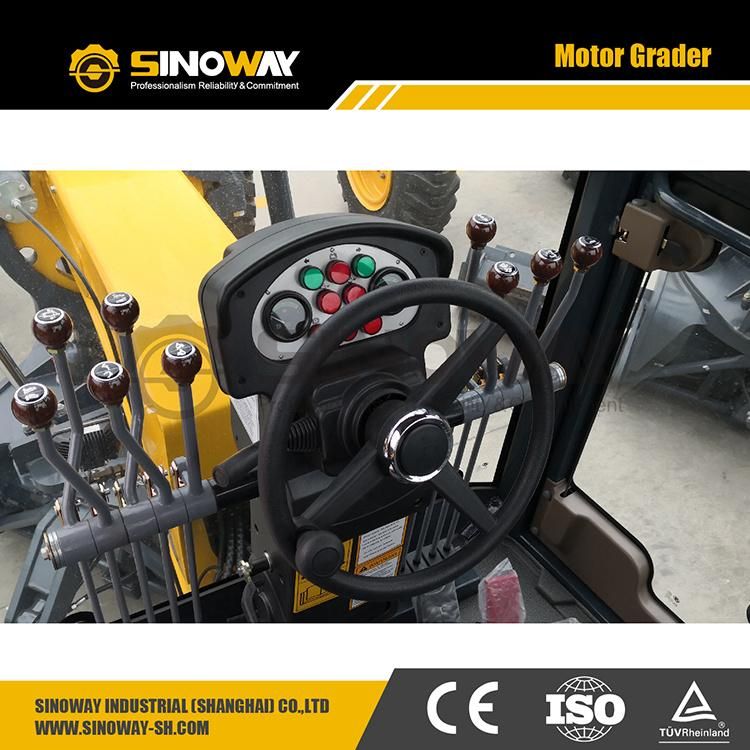

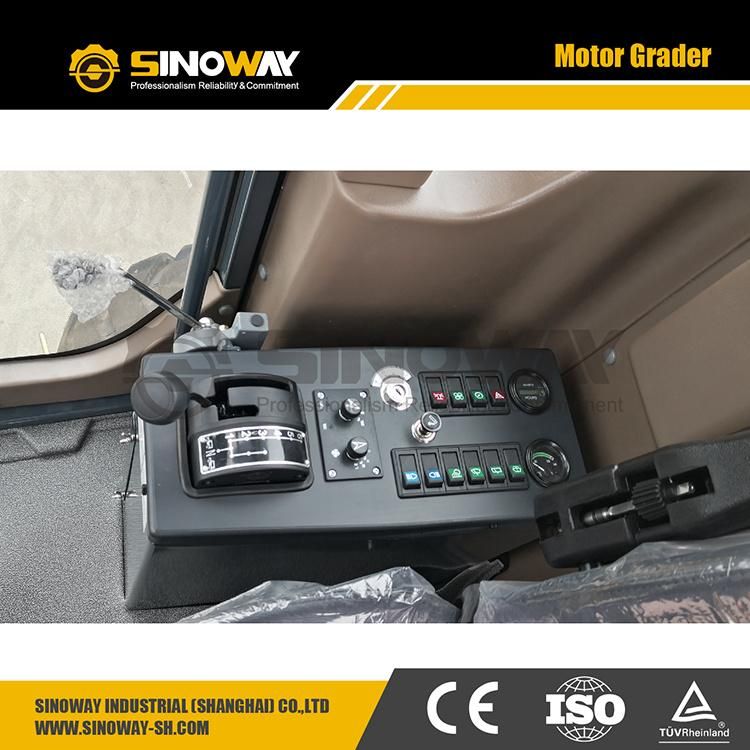

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
 Komatsu technology, Equipped with Cummins engine, 165hp, ZF tech. transmission, heavy duty blade, cabin with air conditioner. Front dozer and five shank ripper as optional.

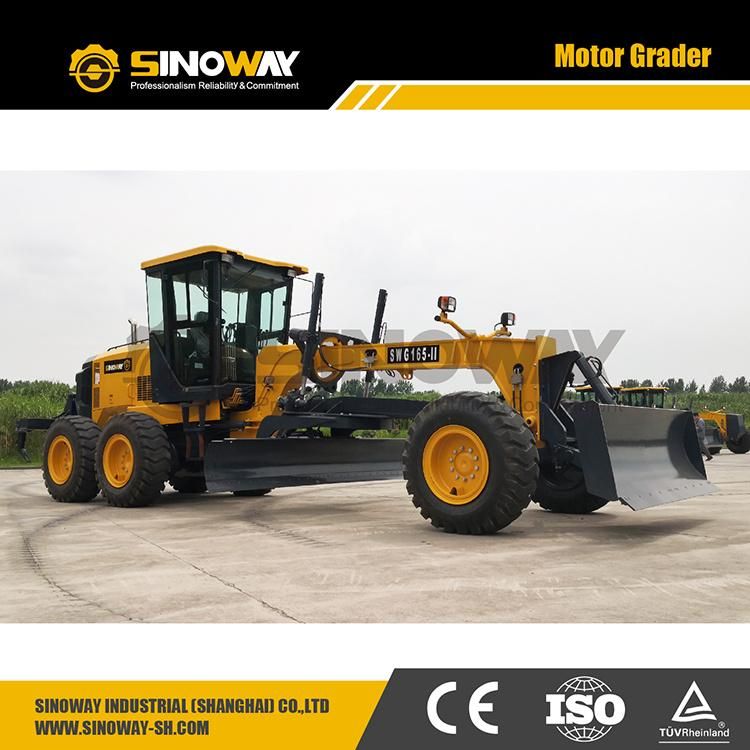

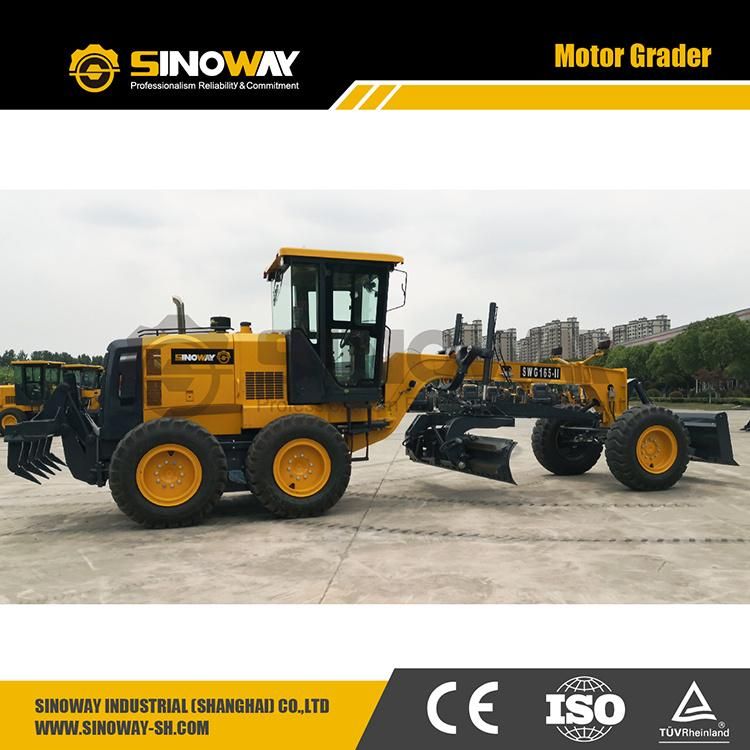

Product Show
Construction Grader 15 Ton Road Scraper for Gravel and Soil LevelingConstruction Grader 15 Ton Road Scraper for Gravel and Soil Leveling
Construction Grader 15 Ton Road Scraper for Gravel and Soil LevelingConstruction Grader 15 Ton Road Scraper for Gravel and Soil Leveling

Specifications
Engine
ModelCummins
TypeSix-cylinder,water-cooled turbocharged,mechanical injection
Rated power132KW
Rated speed2100rpm
Transmission System
Torque conveter type3 elements, single stage
Torque ratio2.52
Cooling typeOil cooled, pressure circulation
Gearbox typePower shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)F6/R3
Forward/Reverse I6.5/6.5
Forward/Reverse II11.4/14.6
Forward/Reverse III14.6/30.0
Forward IV24.8
Forward V30
Forward VI49.2
Steering System
Front wheel steering angle49º(L/R)
Articulated steering angle26º(L/R)
Drive typeDual action cylinder
Axle
Drive typeFour wheel drive(6×4)
Front axle ground clearance610mm
Front wheel lean32º(L/R)
Oscillation±15º
Drive axleImported No-SPIN differential
Working Equipment
Control systemHydrostatic drive system
Hydraulic pumpGear pump
Control valveHUSCO
Control pressure18MPa
Hydraulic oil cylinderHYUNDAI
Max. tractive force78.5KN
Ground penetration535mm
Blade width3660mm
Blade cycling360º
Max. bank cutting angle90º(L/R)
Operating weight14500kg
Braking System
Service brakeHydraulic assist actuated on inner-expanding drum brake
Parking brakeFlexible shaft control actuated drum brake
Dimensions
Overall length8630mm
Overall width(wheel outside)2600mm
Overall height3370mm
Wheel base6100mm
Front tread2120mm
Rear tread2120mm
Tyre size17.5-25
Service Capacities
Fuel tank350L
Engine crank case27L
Hydraulic tank70L
Gear box45L
Rear axle18L
Balance box42L(each)
Worm gear case3L
Tandem Drive
TypeSwing type with roller chain transmission
Speed ratio18.03
