New Construction Machinery Motor Grader Gr180

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Engine：Shangchai Engine D6114 Zg14b
  • Rated Power/Speed：147kw,2200rpm
  • Operating Weight(Standard)：16000kg
  • Tractive Force：82kn
  • Max. Gradeability：20%
  • Tire Inflation Pressure：260 Kpa

Base Info

  • Model NO.：GR180
  • Transmission Pressure：1.3~1.8MPa
  • Dimension：8932*2625*3470mm
  • Transport Package：Nude Package
  • Specification：ISO, CE, GOST
  • Trademark：ORIEMAC
  • Origin：China(Mainland), Jiangsu
  • Production Capacity：1500 Units, Year

Description

Basic specification

Engine model6CTAA8.3 D6114Rated power/speed138kW/2200  140kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15400kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)79KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3965×610mm
Photo Show

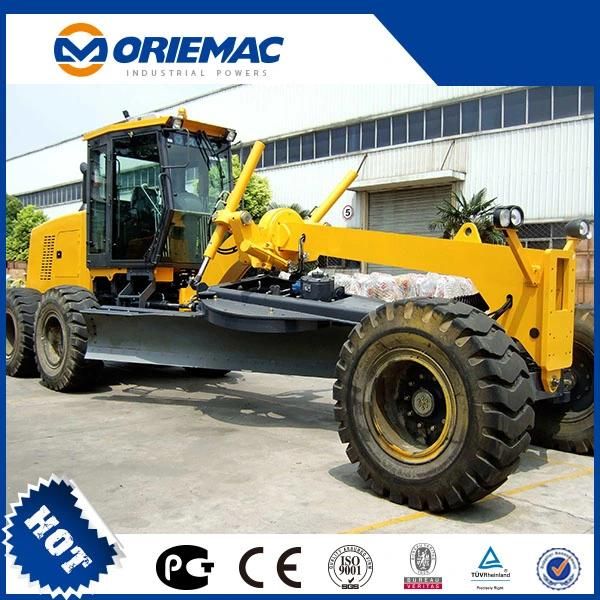

New Construction Machinery Motor Grader Gr180

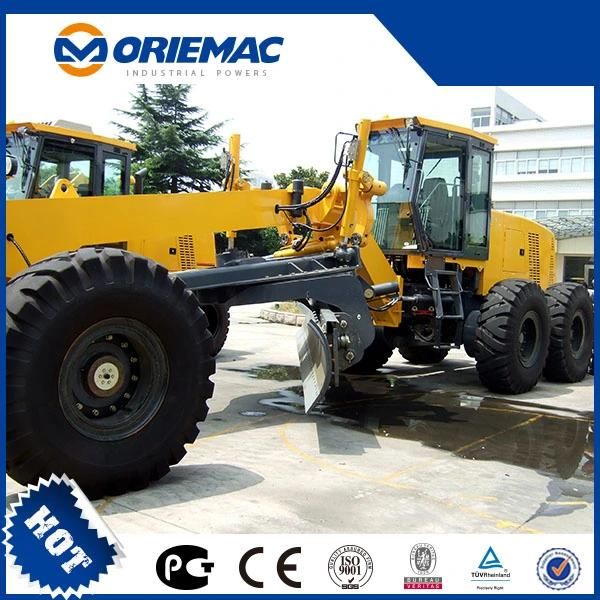

New Construction Machinery Motor Grader Gr180

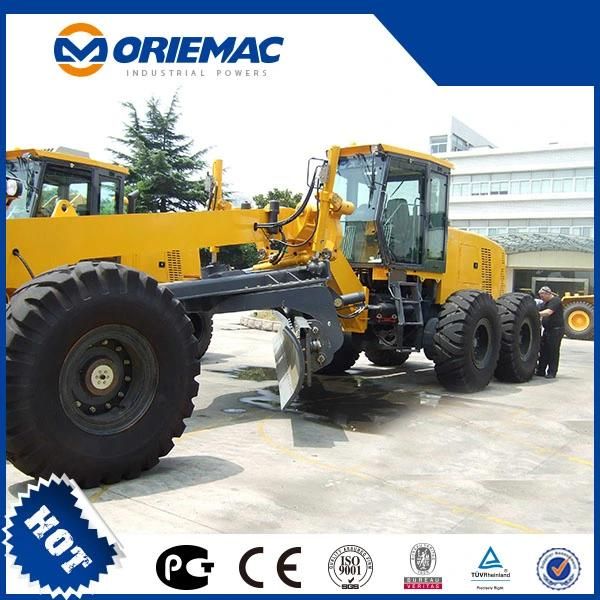

New Construction Machinery Motor Grader Gr180
