High Quality Motor Grader 180HP Motor Grader for Sale Gr180

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Engine：Shangchai Engine D6114 Zg14b
  • Rated Power/Speed：147kw,2200rpm
  • Operating Weight(Standard)：16000kg
  • Tractive Force：82kn
  • Max. Gradeability：20%
  • Tire Inflation Pressure：260 Kpa

Base Info

  • Model NO.：GR180
  • Transmission Pressure：1.3~1.8MPa
  • Dimension：8932*2625*3470mm
  • Transport Package：Nude Package
  • Specification：ISO, CE, GOST
  • Trademark：ORIEMAC
  • Origin：China(Mainland), Jiangsu
  • Production Capacity：1500 Units, Year

Description

Basic specification

Engine model6CTAA8.3 D6114Rated power/speed138kW/2200  140kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15400kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)79KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3965×610mm
Photo Show

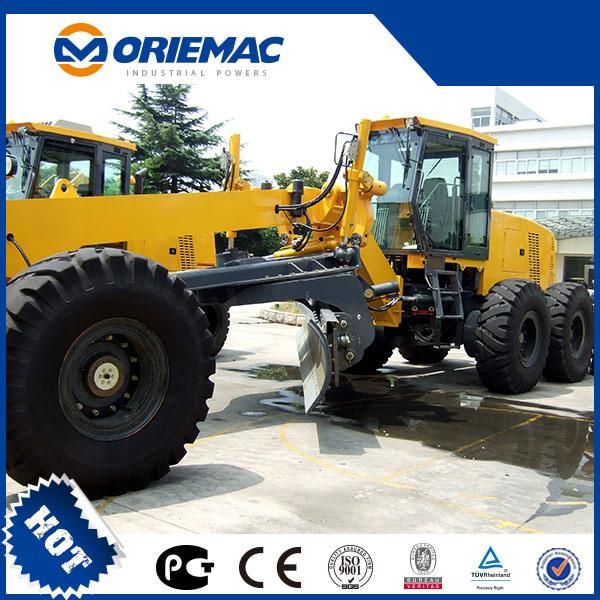

High Quality Motor Grader 180HP Motor Grader for Sale Gr180

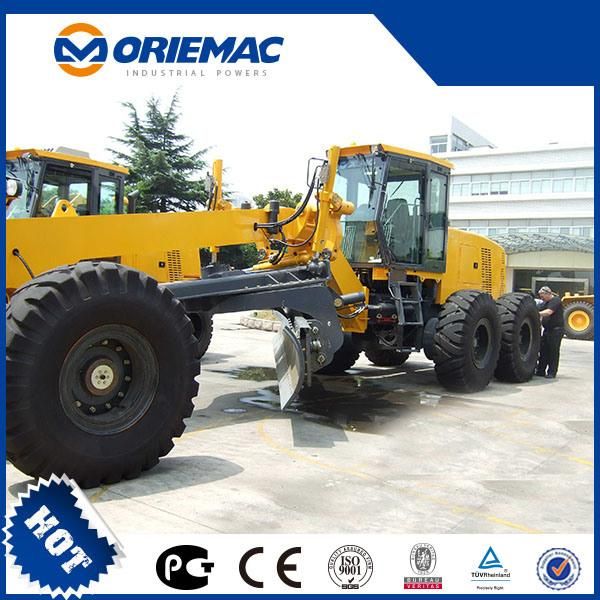

High Quality Motor Grader 180HP Motor Grader for Sale Gr180
High Quality Motor Grader 180HP Motor Grader for Sale Gr180
