• Model NO.：EV Sand Making Machine
• Productivity：250-300t,H
• Feeding Height：1400mm
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Green
• Transport Package：Naked
• Specification：Custom made
• Trademark：Ruromix
• Origin：China
• HS Code：847420900
• Production Capacity：250-300t,H

Company Profile

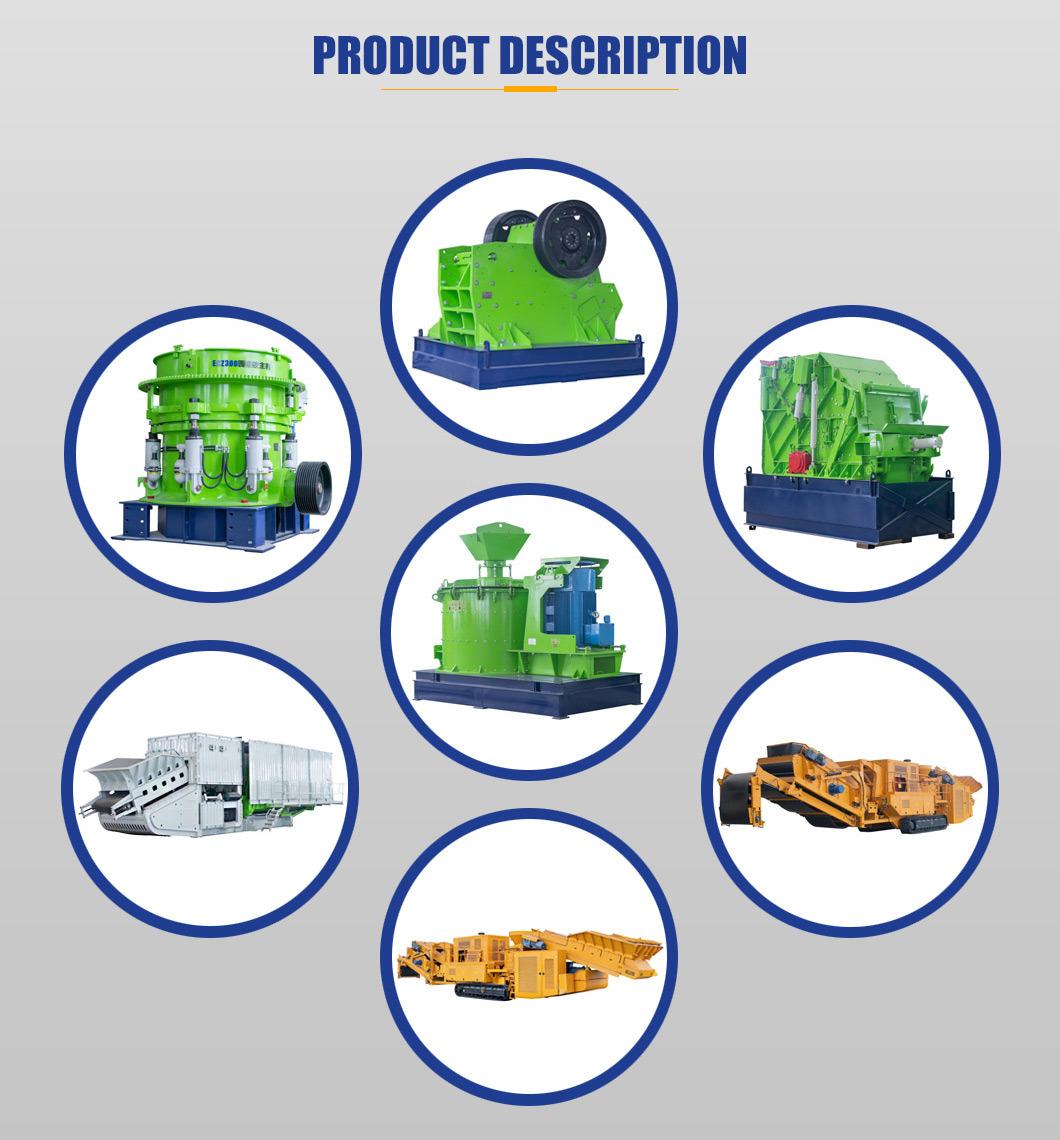

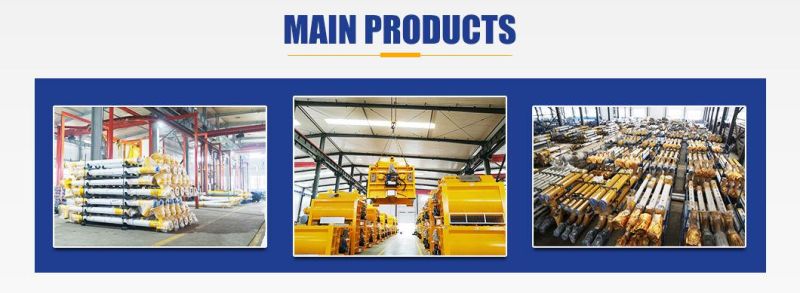

Main products

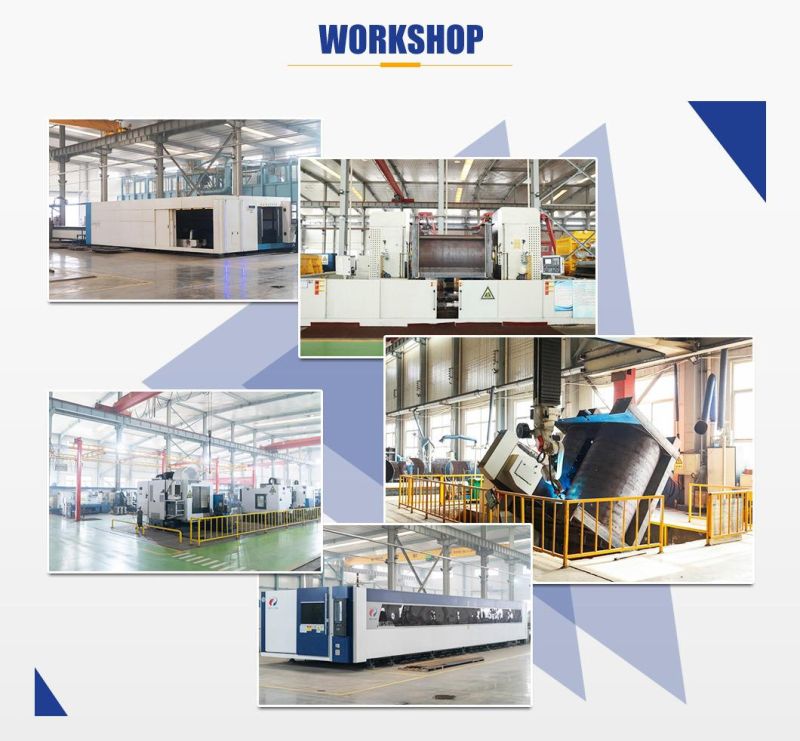

Workshop

Exhibition

Product Parameters

Based on the working conditions or crushing different materials to control the feeding, there are two types of crushing principles for EV  Vertical Shaft Impact Crusher, "Stone-Beat-Stone" and <fStone-Beat- lronM. "Stone-Beat-Stone" uses waterfall material separating system. One part of the material falling from the central feed tube to the impeller chamber with high speed. And the other part of the material falling from overflow holes around the feeding hopper to the machine chamber. The material falling to chamber is shot out from the discharge outlet of the impeller by the action of the centrifugal force. Then they are smashed with another part of the materials that have been distributed around impeller by the distributor.
"Stone-Beat-Iron": All the material falling from the feed tube to the impeller chamber with high speed. And it is shot out from the discharge outlets of impeller by the action of the high-speed centrifugal force, then crush with impact plate around the impeller.Wide range of application EV Series Vertical Shaft Impact Crusher can be widely used in many industries, such as metal and nonmetallic ore, refractory material, raw material for glass ceramics, construction material and highway, hydraulic engineering and hydraulic power project, aggregate production. It is superior to other types of crushers especially for the materials with medium and high degree of hardness as well as hard abrasive materials such as silicon carbide, bauxite, magnesia and so on.
The machine can use the high speed of impeller at 80m/s.lt can be used in making the final products with better shape to optimize grain size distribution and make the fineness modulus smaller.ModelMaximum feed particle(mm)Motor PowerProcessing powerEV200050250250EV2300502*200300







Packaging & Shipping



FAQ

Q:What is your advantage?

1. The design concept of deep V cavity enables the impeller to have a larger internal space and pass through more materials with higher efficiency.
2. Reasonable internal structure, forming material self-lining protection, can extend the life of the impeller and vulnerable parts, reduce the use cost.
3. Selection of high, medium and low multistage rotating speed, giving full play to the energy efficiency of the equipment,and set integrating crushing, sand making and shaping foundations in one.
4. The wear-resistant protection plate of the impeller upper plate and the wear-resistant surfacing welding are double protected to ensure the safety of the impeller can have multiple repair and use.
5. Higher manufacturing accuracy and static balance technology, so that the impeller has a stronger anti-imbalance ability.
6. Standard modular wear - resistant parts, strong versatility, small number, easy to replace.
7.Large capacity & stable running,Low consumption of wearing parts.
High-efficiency,Perfect product shape, suitable for sand-making and stone-shaping,Thinning oil lubricant and automatic maintenance.
Hydraulic device for easy maintenance and operation.
