• Model NO.：ZD220F-3
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Green
• Working Mass：23870kg
• Blade Capacity：4.8m3
• Max. Torque：1078,1251
• Blade Type：Straight Tilt Blade
• Transport Package：Nude Packing
• Specification：9570*2800*3140mm
• Trademark：Zoomlion
• Origin：China
• HS Code：84291190
• Production Capacity：1000 Units, Month

Overview Product Description

Product Parameters



ITEMUNITSD22L×W×H (Ripper not included)mm5750×3725×3395Operating weight (Ripper not included)t23.4Engine-NT855-C280S10Rated powerkW/rpm162/1800Gradeability°30Blade type-Straight tilt blade U-blade
Semi-U blade Angle bladeBlade widthmmStraight tilt blade 3725×1315
U blade 3800×1343
Semi-U blade 3725×1374
Angle blade 4365×1055Dozing capacitym3Straight tilt blade 6.4
U blade 7.5
Semi-U blade 7.0
Angle blade 4.7Ma× drop below ground of blademm540Lift height of blademm1210Ripper type Single ripper Three-shank ripperRipping depth of rippermmSingle ripper 695
Three-shank ripper 666Lifting height of rippermmSingle ripper515
Three-shank ripper 555Number of carriers (each side)-2Number of track rollers (each side)-6Number of track shoes (each side)-38Width of track shoemm560Track gaugemm2000Ground length and ground pressuremm/MPa2730-0.077Pitchmm216Forward speedkm/h0-3.60-6.50-11.2Reverse speed

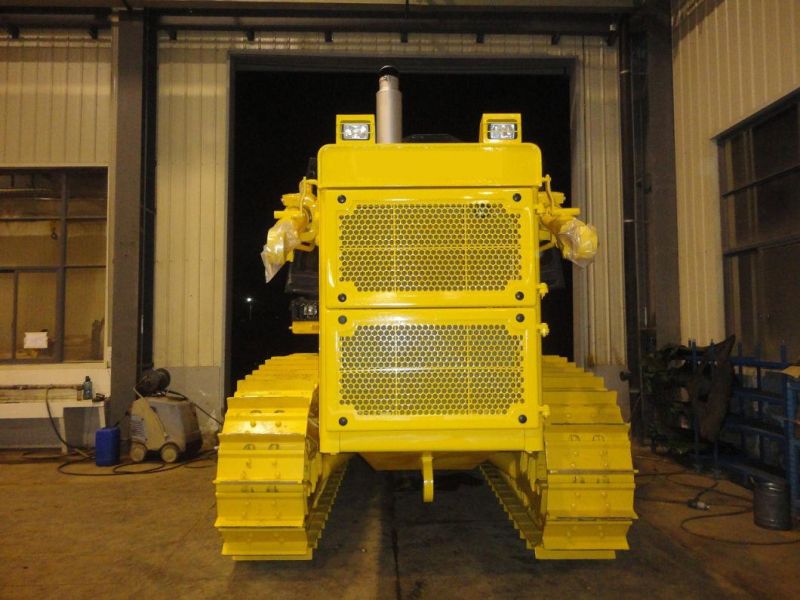

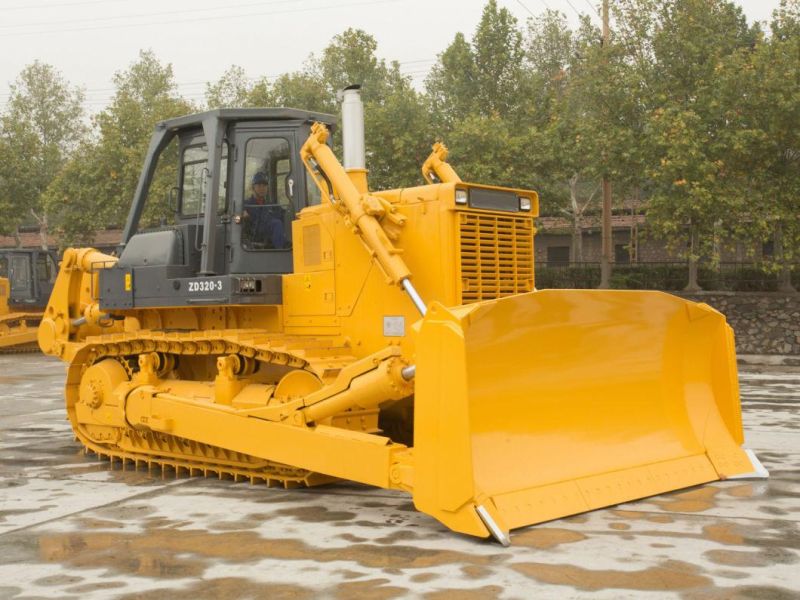

km/h0-4.30-7.70-13.2 Detailed Photos
