• Model NO.：HW940
• Certification：CE, RoHS, ISO 9001:2000
• Condition：New
• Ratational Speed：1-14r,Min
• Loader Type：930
• Engine Power：55,60kw
• Hydraulic System Flow：220-280L,Min
• Power Head：#75
• Weight：5.2t
• Transport Package：Container
• Specification：6100*1850*3000mm
• Trademark：HW
• Origin：China
• Production Capacity：3000pieces,Month

HWH940L Main technical parameters

Working dimension(mm)

4700*2550*2900

Engine power(kw)

76

Transport dimension(mm)

6115*2400*2850

Drive way

four-wheel drive

Chassis body width(mm)

1980

Rotating motor torque(Nm)

1600

Vehicle weight(kg)

5200(13-8)

Mast stroke(mm)

2000

Loader model

ZL940L

Drilling depth(mm)

1650

Hydraulic hammer model

AR68/AR75/AR85

Drilling diameter(mm)

0-300

Work flow(Lmin)

40-70/50-90/60-100

Rail frame inclination0

left35right10

Impact frequency(bmp)

500-900/400-800/400-800

Adjust the angle0

±10

Work plan(mm)

700-3130

Hydraulic system pressure(Mpa)

16-20

Drill rod diameter(mm)

68/75/85

Gear pump flow(mL/min)

40-50

Hammer force(T)

4-7/6-8/7-14

Sliding stroke left and right(mm)

0-450

Piling efficiency(mm/min)

1500/2000/2500

Height from ground(mm)

7203100

Walking speed(km/h)

0~26

Air compressor displacement(m3)

13

Braking method

Air cap oil four-wheel disc brake

Air compressor pressure(MPa)

0.8

Engine model

YN38GBZ

Gradeability0

19

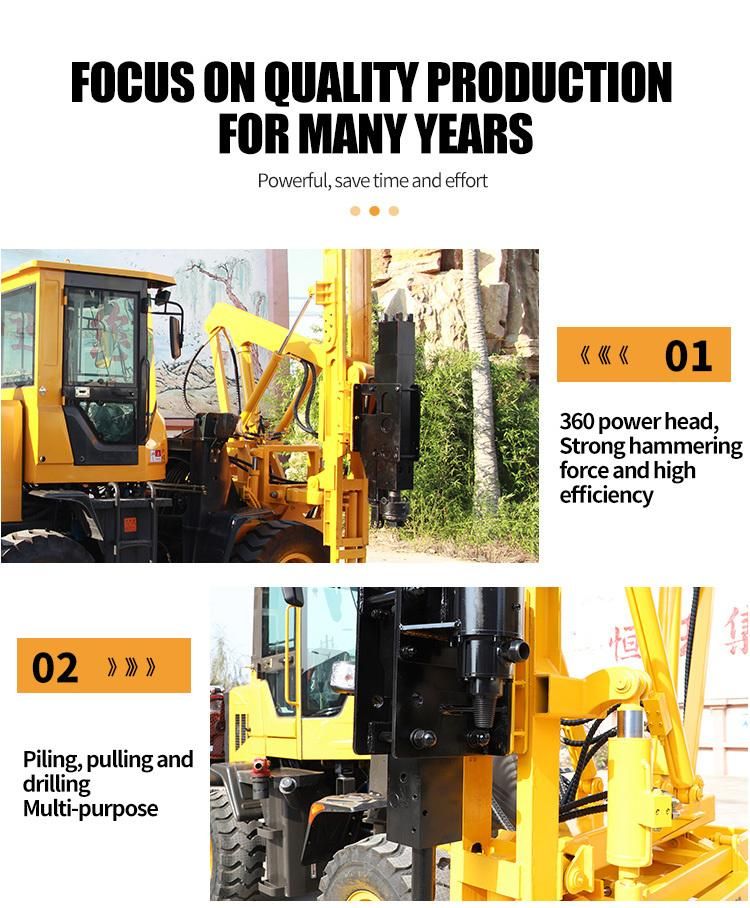

More details about this pile driver machine

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor ds for your clients, and will prefer providing accessories to clients.

Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
