Hydrostatic Soil Compactors Garbage Disposals Hydraulic Trash Compactors

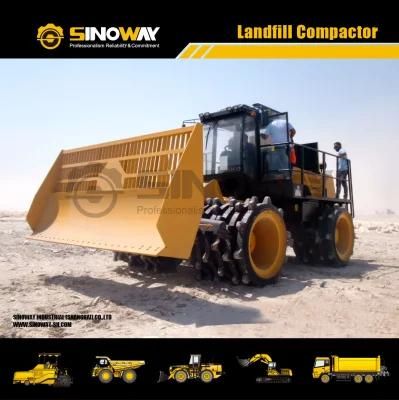

Sinoway Industrial (Shanghai) Co., Ltd.- Type：Landfill Compactor
- Working Method：Steel Wheel
- Axle：Triaxial Three-Wheel
- Grinding Wheel Type：Sheep Foot Roller
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：SWLLC330H
- Travel Speed：30cm,s
- Centrifugal Force：40KN
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Rolling Width：2910 mm
- Rated Power：250 Kw
- Operation Weight：33000 Kg
- Engine Make：Cummins
- Service Brake：Hydrostatic
- Teeh Number：60,50
- Operating Weight：33 Ton
- Transport Package：Naked
- Specification：ISO
- Trademark：SINOWAY
- Origin：China
- HS Code：84294990
- Production Capacity：100 Units,Month
Description
Man Technical SpecificationsOperating weight 33000kg Front axle load 16500kg Rear axle load 16500kg Overall dimension 8090 x 3800 x 3755mm Wheelbase 3500mm Ground clearance 610mm Wheel width (F/R) 1350/1150mm Wheel diameter (F/R) 1620/1620mm Teeth No. per wheel (F/R) 60/50 Engine Cummins Rated power 260kw Rated speed 2100rpm Electric system 24V Drive mode 4 x 4 Travelling speed I (F/R) 0 - 4km/h Travelling speed II (F/R) 0 - 11.5km/h Gradeability 100° Blade width 3800mm Blade height 2000mm Blade lifting height 1200mm Blade depth 200mm Service brake Hydro-static, actuate 4 wheels Parking/emergency brake Mechanical, brake shoe actuate Steering type Hydraulic, middle articulated, moveable Steering angle ±40° Transverse swing angle ±15° Min. steering radius at the front wheel 6750mm Fuel tank 440L Hydraulic tank 305L
Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.
For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.
Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.
| Condition | Brand New |
| Warranty | One year or 2000 working hours, whichever comes earlier. |
| Shipment Terms | FOB, CFR, CIF, CIP DAF |
| Company Name | Sinoway Industrial (Shanghai) Co.,Ltd |
| Add | 30 A1, No.58, New Jinqiao Road ,Shanghai, China |
| Tel | +86 21 68598616 |
| Fax | +86 21 50191951 |
| Website | sinoway-sh.en.made-in-china.com |
