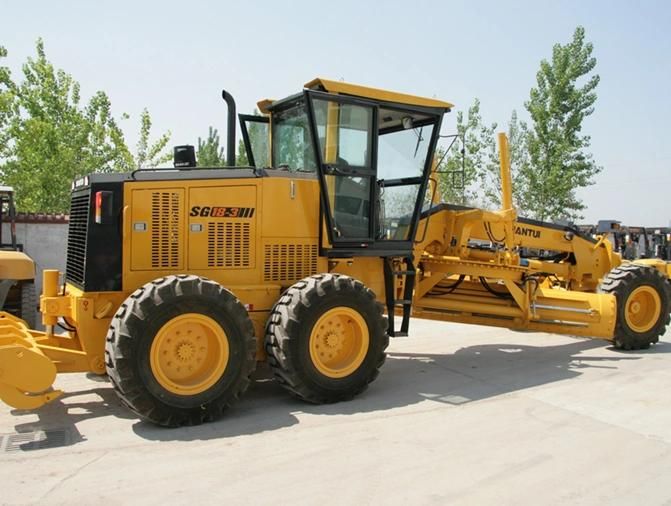

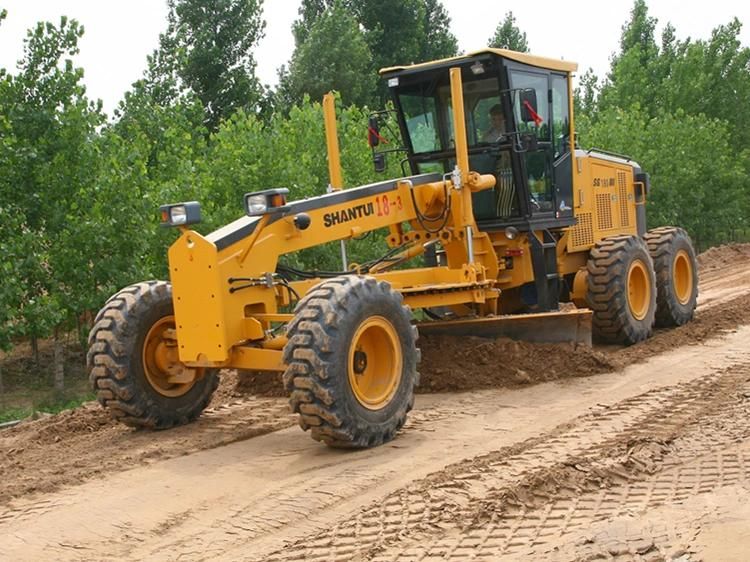

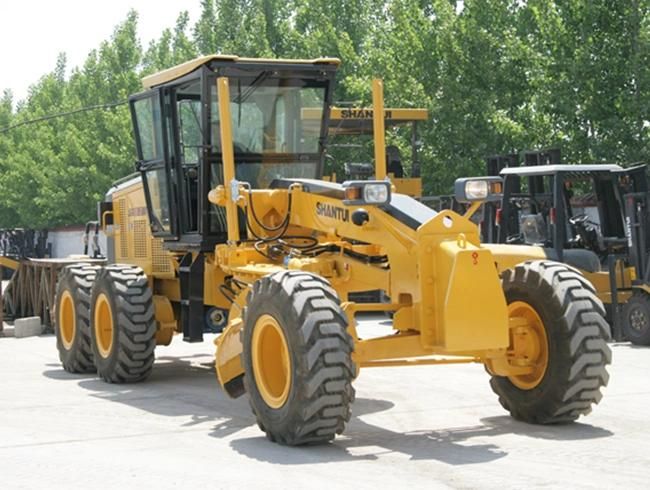

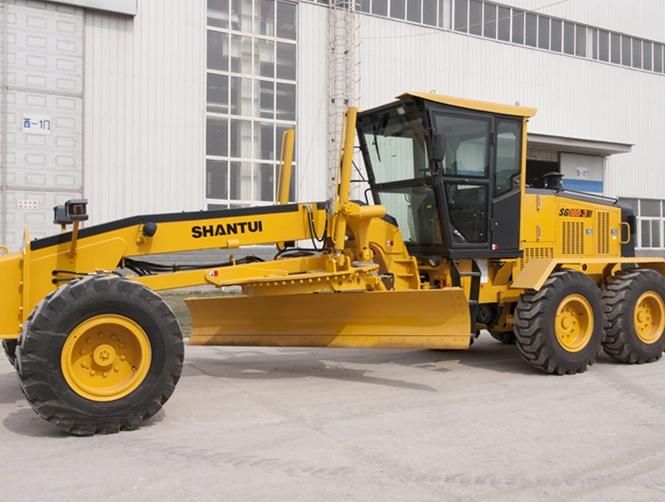

Shantui 180HP Motor Grader Sg18-3 with Front Blade and Rear Ripper

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：Forever
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：SG18-3
  • Walking Mode：Wheeled
  • Type：Large Grader
  • Engine Model：Cum-Mins
  • Rated Power：132kw
  • Blade Dimension：3965,635mm
  • Maximum Cutting Depth：500 mm
  • Operating Weight：16200 Kg
  • Transport Package：Nude Package
  • Specification：9130*2600*3400mm
  • Trademark：SHANTUI
  • Origin：Shandong, China
  • HS Code：84292090
  • Production Capacity：200units,Month

Description

EngineEngine modelCummin s 6BTAA5.9-C180Rated power/speed132   kW/2200 rpmEngine typeIn-line,   water-cooled, 4-cycle, direct injection, turbochargedNumber of cylinders6(102X120mm)Piston displacement5.9LMaximum torque/speed770   N·m/1500 rpmMinimum fuel consumption 206 g/kW·htravel speedTransmission   and torque converter: Electronic controlled transmission with 6 forward gears   and 3 reverse gears.Gear1st2nd3rd4th5th6thForward0~5.4   km/h0~9.3   km/h0~12.2   km/h0~20.7km/h0~25.6   km/h0~39.7   km/hReverse0~5.4   km/h0~12.2   km/h0~25.6   km/h   TRAVELTire   Type17.5-25PR12Steering systemMax.   steering angle of front wheel ±45°Max. tilting angle of front wheel±17°Max. oscillating angle of front axle±15°Steering angle of frame±25°Max. oscillating angle of rear axle±15°Min. turning radius7800 mmOperation weight

Operating   weight

(standard configuration)

16200 kgFront axle load4800 kgRear axle load11400 kgBladeBlade   length 3660/3965   mmBlade height635 mmBlade rotational angle360°Cutting angle adjustment range44~91°Maximum cutting depth 500 mmCutting force per dozing 24.47 kN/mMaximum lift above ground 440 mmMaximum blade lateral extension (left/right)1900/1950   mm
