• Model NO.：FL958G
• Type：Medium-sized Loader
• Transport Package：Nude Packing, 40hq
• Specification：ISO, CE
• Trademark：FOTON
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. FL958G Type Medium-sized Loader Transport Package Nude Packing, 40hq Specification ISO, CE Trademark FOTON Origin Shandong, China HS Code 84295100 Production Capacity 5000PCS/Year

Product Description

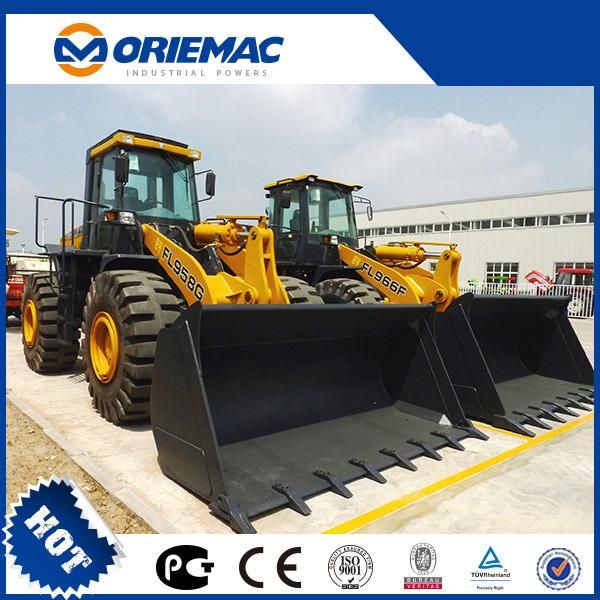

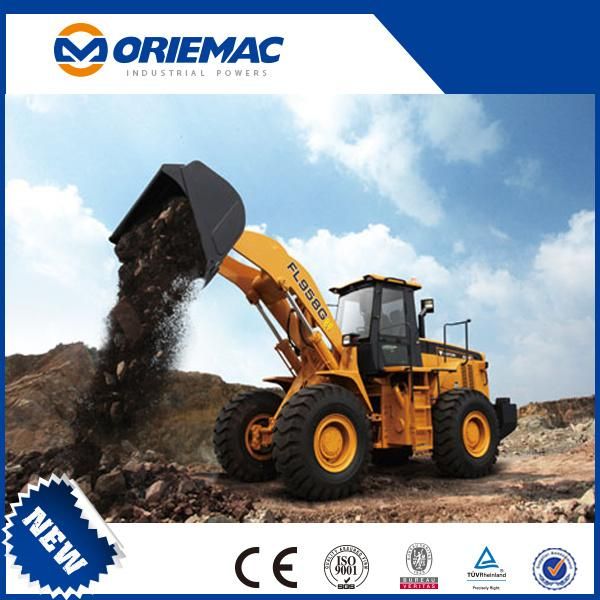

China Foton 5ton Payloader 3.0cbm FL958g Shovel Loader
Contact: +8618221045926 Betty

1. Adopt Model LR4105G83A engine;
2. Hydro-mechanical transmission avoids the stop due to the sudden increased external load, absorbs and eliminates the vibration and shocks on the engine due to the external load, and increases machine life cycle;
3. Four-wheeled driving, low-pressure, wide-base off-highway tires, has a good a performance for passing and off- highway;
4. Adopted a large vision, all closed damping cab, comfortable operation environment;

Parameter Items	Parameter Value
1. Main parameter
Rated load (KG)	5000
Operating Weight (standard) (KG)	17100
Rated Bucket Capacity (m3)	3
Maximum breakout force (KN)	185
Maximum traction force (KN)	160
Total hydraulic cycle time (S)	10.6
Maximum dump height (mm)	3180
Maximum dump distance (mm)	1160
Forward speed range (KM / H)	0~38.4
Back speed range (KM / H)	0~24.2
Transport dimensions (L × W × H) (mm)	7960× 2970× 3450
Maximum steering angle (° )	37
Max grade ability(° )	30
Minimum turning radius (mm)	6770
Tire Size	23.5-25-16PR
2. Engine parameter
Model	Weichai WD10G220E23
Type	6-cylinder, in-line, direct injection and turbocharged
Power (KW)	162
Maximum torque (N. M)	930
Cylinder diameter (mm)	126
Stroke (mm)	130
Displacement(L)	9.756
Fuel consumption (G / Kw. h)	220
3. Hydraulic system
Work system pressure (Mpa)	20
4. Braking System
Running braking system type	Single pipe air-oil 4-wheel clipper disc braking
Parking / emergency brake system type	Drum braking
5. Fuel Tank Capacity
Fuel tank (L)	280
Hydraulic Tank capacity (L)	210
