• Model NO.：LYFOOJED
• Trademark：LYFOOCRANE
• Origin：China
• HS Code：84253190
• Production Capacity：100

ItemParameterHoisting Speed65 (mm/s)Rated Capacity150 (kg)Lifting Stroke1.6 (m)Standby Hours/Continuous Hoisting20 days/300 timesWay to Start/StopRadio Remote ,Soft Start/stopSafety ProtectionUp/down Limit Switch, Emergency Stop



Performance Parameter -Host 2

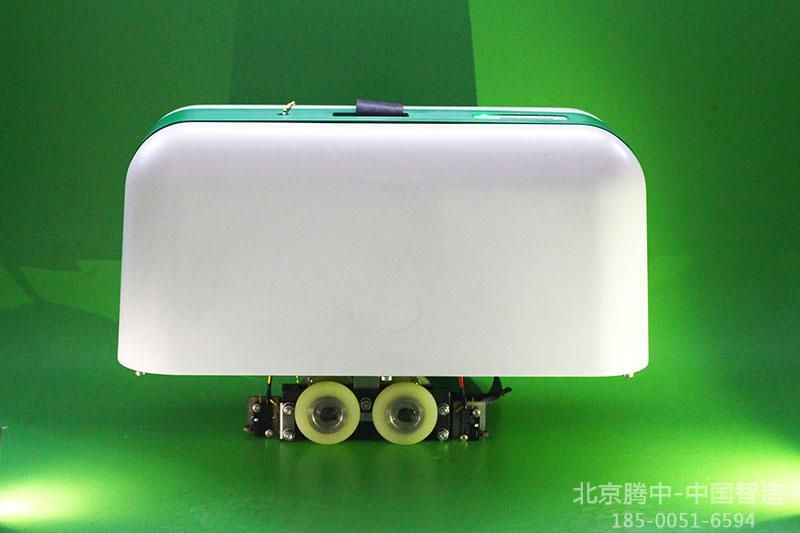

Plug-in Patient Lift host consists of body shell, bottom-carrying sling, hanging trolley, transmission mechanism, safety limit switch, etc. The power supply is 220 volts. The host can move along with track within the room or a certain area.
 ItemParameterHoisting Speed65 (mm/s)Rated Capacity150 (kg)Lifting Stroke1.6 (m) Power SupplyLithium BatteryWay to start/stopRadio Remote ,Soft Start/stopSafety ProtectionUp/down Limit Switch, Emergency Stop




Performance Parameter -Turning Disk
Turning Disk is a conjunction device for 'T' track or '+' track, with which the Patient Lift's movement direction can be easily adjusted. It consists of transmission mechanism, locating mechanism and control module. It can make the direction adjustment precisely in 90o clockwise or counter-clockwise. There are several sensors in the control module, which make the on/off control in an intelligent way.
 ItemParameterRotation speed5 (r/m)Power supplyAC (220v,50hz)ProtectionMechanical and Limit SwitchWay to start/stopRadio RemoteRated Capacity150 (kg)


Performance Parameter -Track Switch Device

Track switch device consists of transmission mechanism, locating mechanism and control module.
 ItemParameterSwitch Speed3~4 secondsPower SupplyAC (220v,50hz)ProtectionMechanical and Limit SwitchWay to start/stopRadio RemoteRated Capacity150 (kg)
