China 1.0 Ton Small Wheel Loader
Henan Haiheng Import and Export Co., Ltd.- Certification:ISO, CE
- Condition:New
- Rated Load:1-3t
- Transmission:Hydraulic
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
Base Info
- Model NO.:HH910F
- Type:Small Loader
- Transport Package:Container Load
- Specification:rated load: 1 TON
- Trademark:CHHGC
- Origin:China
Description
Bucket Capacity(m³)0.5 Operating Weight(kg) 3300 Bucket Width(mm) 1650 Rated Load(kg) 1000 Brake Mode Four-wheel hydraulic spead-shoed brake Driving Mode Four-wheel drive Overall Dimensions (mm)(L*W*H) 5200x1650x2720 Max. Breakout Force(KN) 32 Forward Speed 1st(km/h) 0-12 Forward Speed 2nd(km/h) 0-25 Reverse Speed (km/h) 0-25 Max. Dumping Height(mm) 2650 Max. Dumping Reach (mm) 850 Min. Turning Radius(mm) 3890 Full Bucket Lifting Time (s) 4.5 Total Hydraulic Cycle Time (s) 9 Tread Width (mm) 220 Wheel Base (mm) 1580 Min. Clearance Over Ground (mm) 230 MAX. Tilt Angel(°) 30 Diesel Engine Brand Yunnei Engine Optional brand Euro3 and EPA Xinchai Engine
Imported Yanmar/Perkins/Kubota/Cummins Engine Type In-line arrangement,Four-stroke,Water cooled,
4-cylinder diesel engine Rated Output(KW) 37KW Rated Speed (rpm) 2300 Engine starting mode Electric Transmission Type Hydraulic converter Drive axle Type Isuzu drive axle Rear Axle Oscillation Center oscillation Oscillating Angle Of Rear Axle 13° Tire Model 12.00-16 Optional model 12-16.5 or 14-17.5 Wider Tyre
31*15.5-15 Agriculture Tyre Steering System Working Pressure (MPa) 10 Steering System Articulated Frame with hydraulic power steering Max. Steering Angle (°) 35 Working Hydraulic System Pressure Of Tire (MPa) 2.5-3.5 Working Pump Type Gear pump Working Pressure (MPa) 16 Brake System Service Brake Four Wheel Hydraulic spread-shoed brake Parking Brake Hand operated Package 1 unit in 20GP,3 units in 40HQ. Delivery time 25 days after 30% down payment. Warranty 12 months after delivery. Certificate

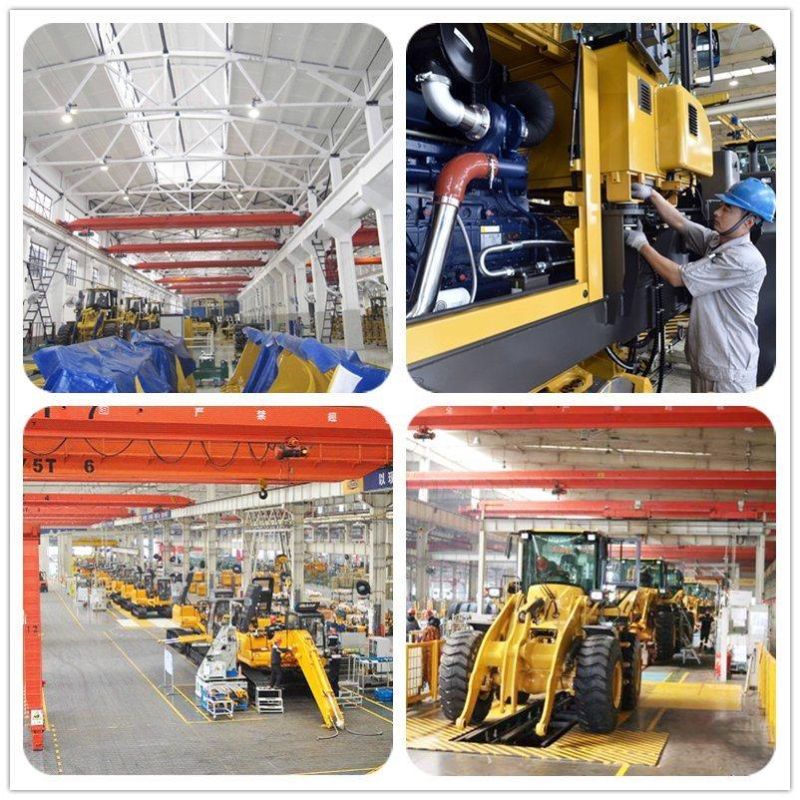

Workshop
Business Partners
FAQ:
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
