Engineering & Construction Machinery

New Design Concrete Batching Mixer

Zhengzhou Hento Machinery Co., Ltd.
  • Type:Concrete Batching Machine
  • Shotcrete Type:on The Specification
  • Machining Process:on The Specification
  • Structure:Rotor Type
  • Productivity:75m^3,h
  • Feeding Height:2950mm

Base Info

  • Model NO.:HT-PLD1600
  • Vibrating Amplitude:on The Specification
  • Certification:CE, SGS TUV
  • Condition:New
  • Color:Orange
  • Weighting Hopper:800L
  • Storing Hopper:2*2.5m^3
  • Maximum Weighing:3000kg
  • Numbers of Ingredients:2-4
  • Speed of Feeding Belt Conveyor:1.6m,s
  • Power:12kw
  • Total Weight:4500kg
  • Transport Package:Fumigation-Free Wooden Case
  • Specification:5600*1650*2950mm
  • Trademark:HENTO
  • Origin:Henan, China
  • Production Capacity:75m^3,H

Description

Basic Info.

Model NO. HT-PLD1600 Vibrating Amplitude on The Specification Certification CE, SGS TUV Condition New Color Orange Weighting Hopper 800L Storing Hopper 2*2.5m^3 Maximum Weighing 3000kg Numbers of Ingredients 2-4 Speed of Feeding Belt Conveyor 1.6m/s Power 12kw Total Weight 4500kg Transport Package Fumigation-Free Wooden Case Specification 5600*1650*2950mm Trademark HENTO Origin Henan, China Production Capacity 75m^3/H

Product Description

New Design Concrete Batching Mixer1.Production Description:
HT-PLD serial concrete batching machine is a kind of  equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3-6 kinds of materials(second grade concrete) such as sand, stone, cement according to user's design.
Concrete batching machine loading materials by loader or belt conveyor is automation equipment used for quantitative distribution of materials, which mainly used in concrete construction industry to replace artificial platform scale or volume measurement, etc .

2.Technical Parameter:
ItemsHT-PLD1600
Weighting Hopper1600L
Storing Hopper3*5m^3
Productivity(Dry material)75m^3/h
Weighing Accuracy±2%
Maximum Weighing3000kg
Numbers of Ingredients2-4
Loading Height2950mm
Speed of Feeding Belt Conveyor1.6m/s
Power4*3kw=12kw
Total Weight4500kg
Overall Dimension9400*2100*3450mm
We still have HT-PLD1200,HT-PLD800,HT-PLD2400,HT-PLD3200,HT-PLD4800 for you.

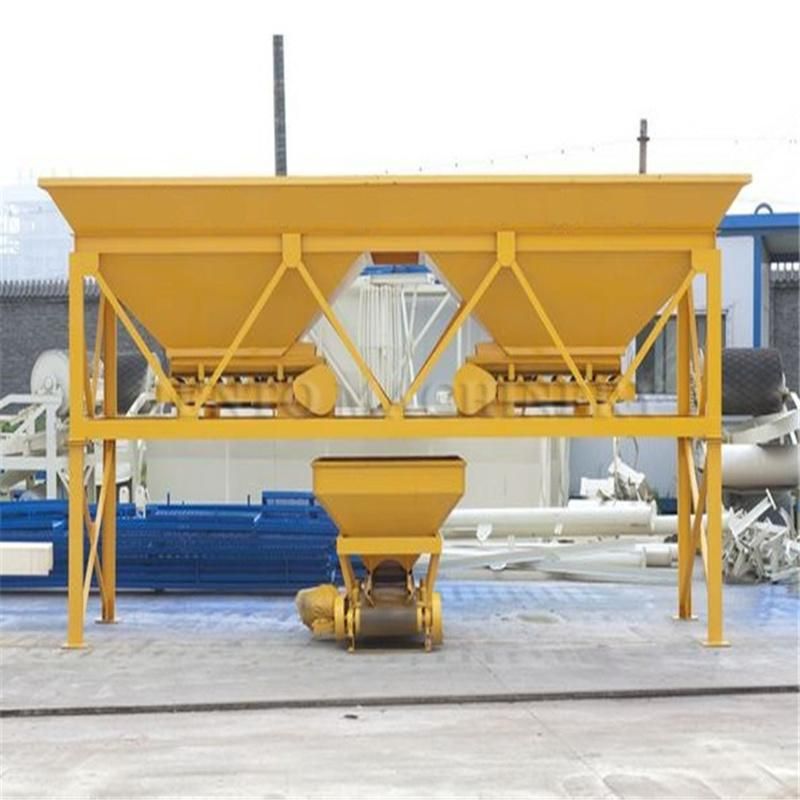

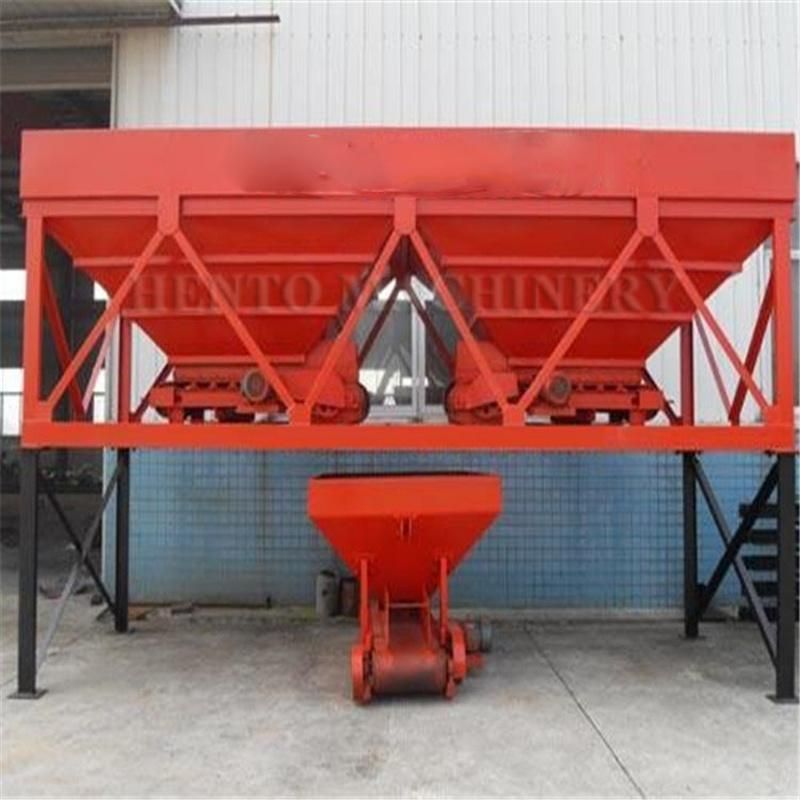

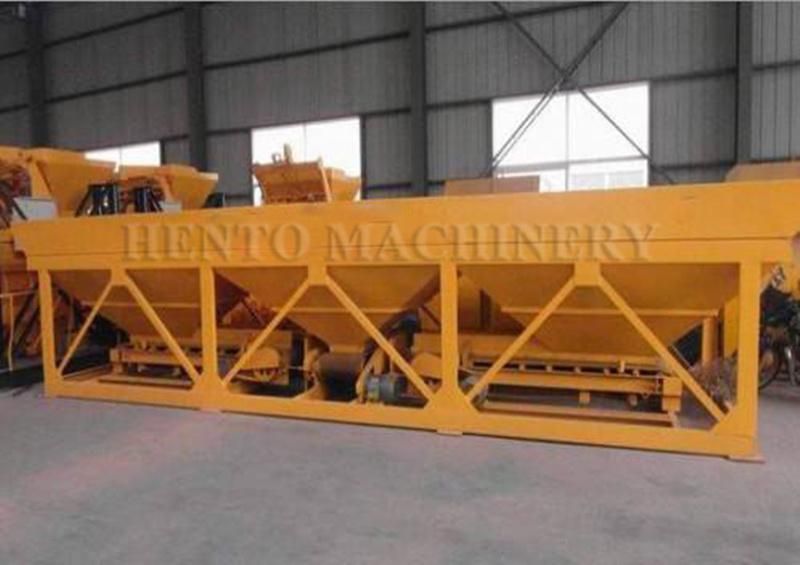

3.Product Picture:
New Design Concrete Batching Mixer
New Design Concrete Batching Mixer
New Design Concrete Batching Mixer


4.Packaging & Shipping:
New Design Concrete Batching Mixer


5.Our Customer:
New Design Concrete Batching Mixer


6.Contact Information:
