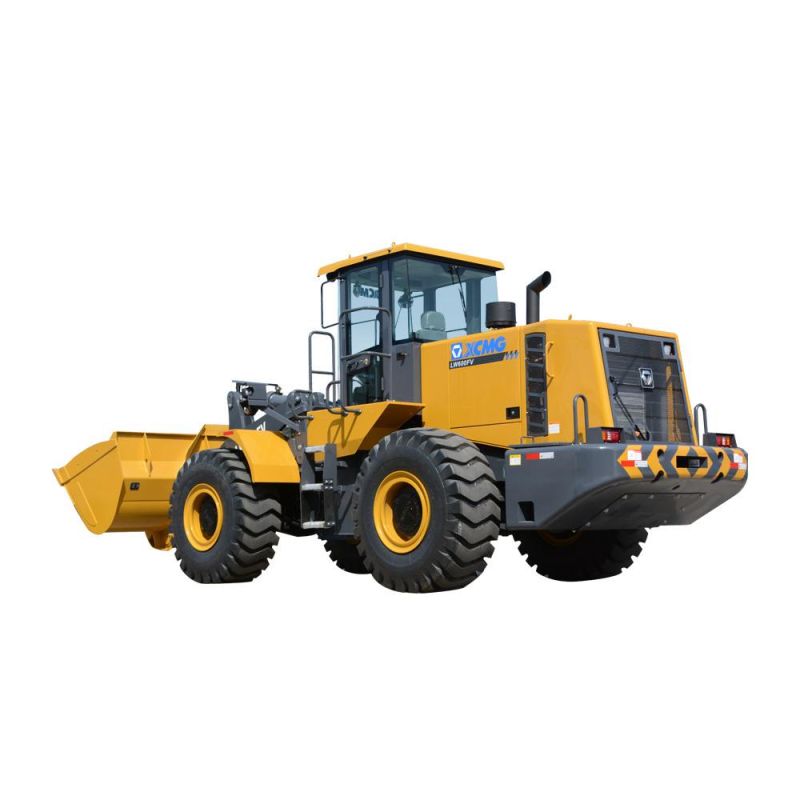

High Performance Lw600fv 6t RC Wheel Loaders for Sale
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Rated Load：3-8t
Base Info
- Transmission：Hydraulic - Mechanical Transmission
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Dimension(Long * Breadth * High)：8505*3200*3515mm
- Break out Forth：17ton
- Loader Rated Power：178kw,2200rpm
- Loading Hight：3.1m
- Application：Material Loading
- Usage：Universal Type
- Scraper Type：Pull Scraper
- Load and Unload Method：Front Discharge
- Engine Power：>515kw
- Color：Orange
- Oil Tank Capacity：300L
- Hydraulic Oil Tank Capacity：187L
- Maximum Traction Force：174kn
- Maximum Breakout Force：205kn
- Wheel Tread：2265mm
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8429510000
- Production Capacity：1000PC,Year
Description
Performance Highlights:
The ≥17.4t traction force and ≥20.5t breakout force conquer all kinds of severe working conditions.
The 38° steering angle and the 3,350mm wheelbase adapt to diversified narrow working sites.
Model Characteristics: terms of reliability, operation comfort, multi-functionality, and technologic advancement and has gained multiple national patents.

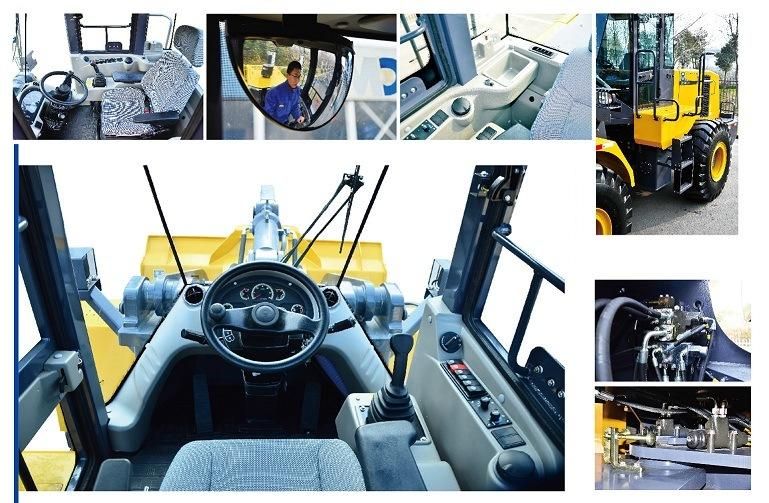

Integrated cab - The super-large, full-view, ultra-low noise, and slightly pressurized cab is fitted with audio system and A/C, the joysticks are under follow-up status with the seat, and all control units are easily accessible to build the best operating environment. research, the in-depth finite element analysis, and the lightweight design are taken to realize that the "load-carrying material ratio" is remarkably leading the industry products.
Patented bushing lubrication technology - The industry's pioneering bushing lubrication structure is applied to prolong the life of the hinge pins by more than one time.
Patented double-limit technology - The combination mode of primary flexible limit and secondary rigid limit attenuates the impact onto the frame and improves the operation comfort.
