• Model NO.：swic300
• Working Method：Steel Wheel
• Axle：Biaxial Dual-Drum
• Grinding Wheel Type：Sheep Foot Roller
• Compaction Depth：40cm
• Engine Type：None
• Travel Speed：35cm,s
• Centrifugal Force：30kj
• Certification：CE, ISO 9001:2000, ISO14001
• Condition：New
• Width of Roller：900mm
• Impact Energy：25-30kj
• Compaction：98%
• Speed：15km,H
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS Per Year
• Package size per unit product：3680.00cm * 2770.00cm * 2315.00cm
• Gross weight per unit product：13000.000kg

Basic Info.

Model NO. swic300 Working Method Steel Wheel Axle Biaxial Dual-Drum Grinding Wheel Type Sheep Foot Roller Compaction Depth 40cm Engine Type None Travel Speed 35cm/s Centrifugal Force 30kj Certification CE, ISO 9001:2000, ISO14001 Condition New Width of Roller 900mm Impact Energy 25-30kj Compaction 98% Speed 15km/H Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS Per Year

Packaging & Delivery

Package size per unit product 3680.00cm * 2770.00cm * 2315.00cm Gross weight per unit product 13000.000kg

Product Description

Product Description

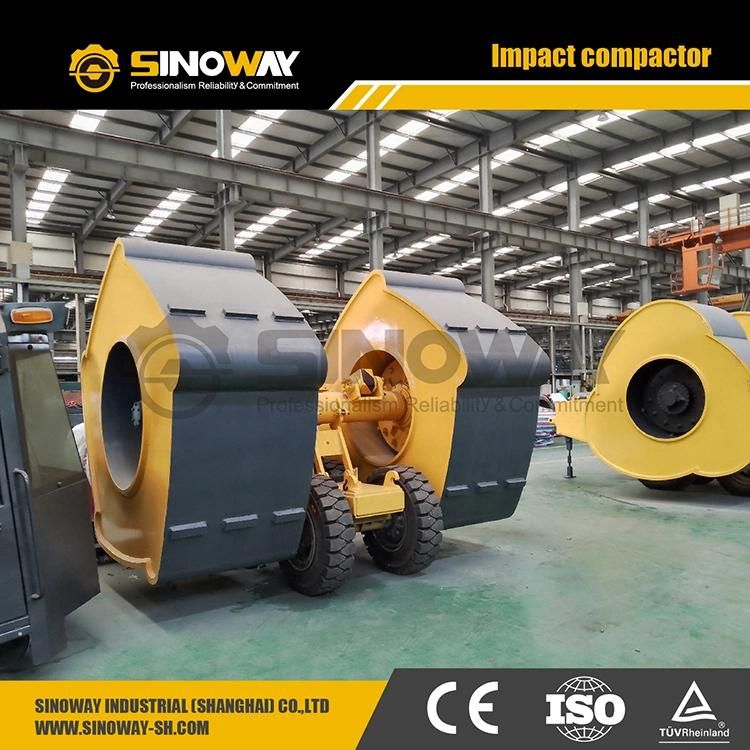

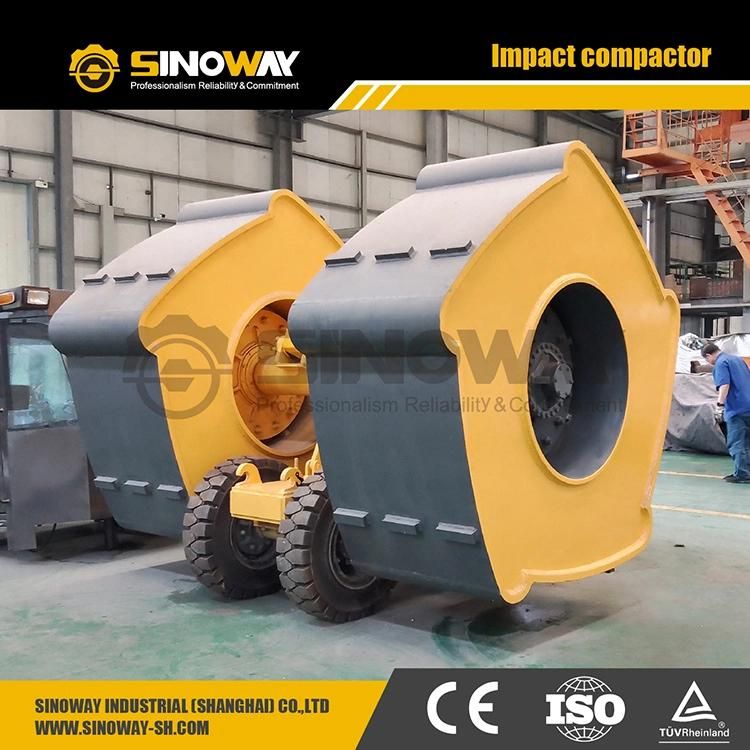

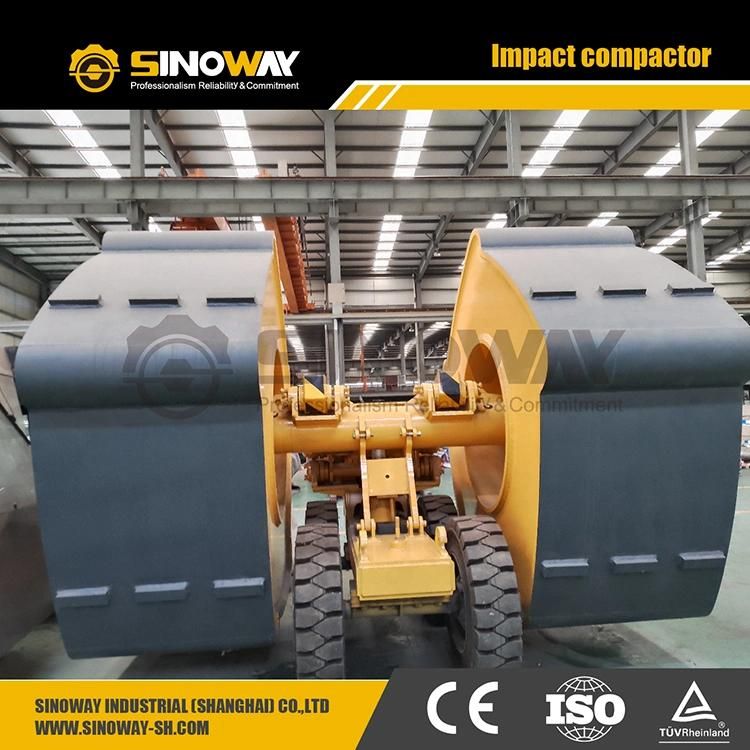

Impact road roller, including Trilateral Roller and Pentagon roller is an unique ramming equipment, having the features such as large depth and high construction efficiency, which could greatly satisfy the foundation ramming for high class road, high-speed railway, reservoir dam, airport, harbor and other large-scale projects and is able to break and compact the road surface upgraded and rebuilt. It can greatly enhance its bearing capacity, stability and compactness and reduce the damage to road caused by overload of vehicle, so as to extend the road endurance, which is more effective to the foundation ramming for collapsibility loess and the reinforcement ramming and detection ramming for molding roadbed of high class road, shortening the natural subsidence time of roadbed to the greatest extent and promoting the progress of works to shorten construction time limit, named "Guarantee for Road Construction" by employers.
Ramming force is 10 times of same weight static roller and 3~4 times of same weight vibrating road roller.
Ramming efficiency is 3~4 times of same weight vibrating road roller.
Depth impacted is 3~4 times of same weight vibrating road roller.
The cement road breaking efficiency of SWIC250P is 50 times of impact breaking hammer.

Product Show

Specifications

Model	SWIC250P
Impact power	25 KJ
Operating weight	12.5 ton
Compaction	95~98%
Tractive power	≥160 KW
Travelling speed	10~15 km/h
Min.turning radius	6000 mm
Shock absorber	12×2 sets
Overall dimension	3820×2980×2340 mm
Tread	1180 mm
Width of roller	2×900 mm
Damping mode	Hydraulic, nitrogen, spring, rubber bumper
Pressure of accumulator	3~4.5Mpa
Tire size	8.25-15
Pressure of tire	0.6~0.8Mpa
