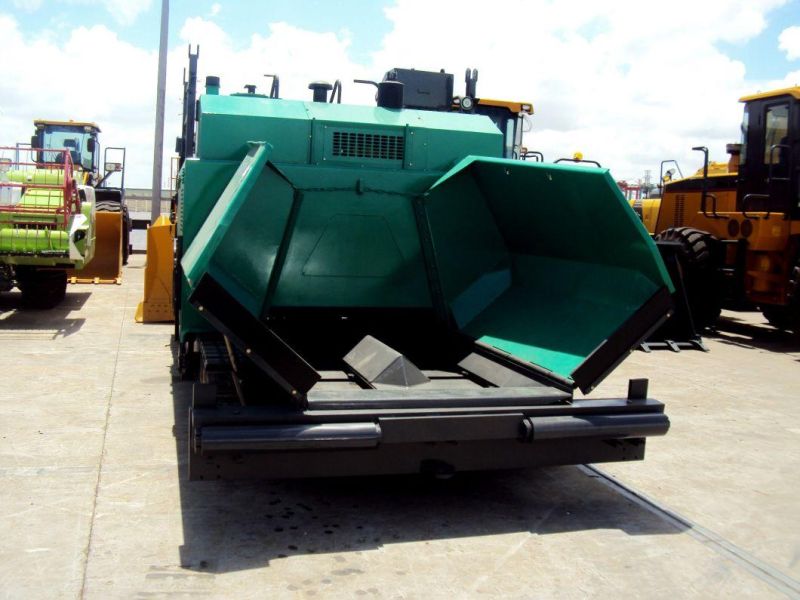

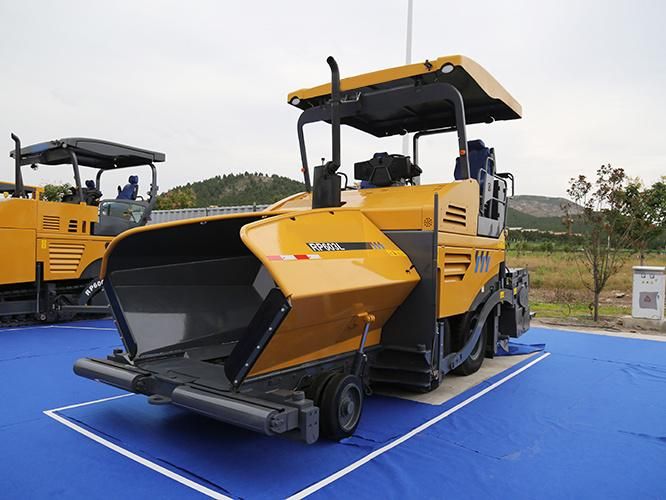

Fully Hydraulic Four-Wheel Drive Road Paver RP603L with Spare Parts for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1year or 12month
- Type：Paver
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Mixing Method：60t
Base Info
- Model NO.：RP603L
- Automatic Grade：Automatic
- Product Capacity：>400t,h
- Certification：CE
- Condition：New
- Hydraulic Cylinder Brand：China
- Unique Selling Point：High Operating Efficiency
- Transport Package：Nude Package, Attached Parts and Tools Into Standa
- Specification：6590*2600*3942mm
- Origin：China
- HS Code：3005909000
- Production Capacity：1000
Description
Item
Unit
RP602
Basic paving width
m
2.5
Max. paving width
m
6
Max. paving thickness
mm
380
Paving speed
m/min
0~14
Travel speed
km/h
0~3.0
Theoretical productivity
t/h
400
Hopper capacity
t
13
Gradeability
%
20
Pavement evenness
mm/3m
3
Cross slope error
%
±0.03
Crown adjustment range
%
0~3
Diesel engine model
BF4M1013C
Diesel engine power
kw
118
Diesel engine speed
r/min
2300
Diesel oil tank capacity
L
230
Overall weight
t
15.8~21.5
Dimension
mm
6230×2500×3855
Vibration frequency
Hz
/
Screed heating mode
Electrical heating
Material level control mode
Automatic Control by Ultrasonic Sensor
Automatic Leveling Control
Simulation control
Item
Unit
Screed model
475(RP602)
Type
Vibration, electrical heating
Stretch mode
Hydraulic stretch
Width range
2.5-6.0m
Vibrating tamper rotate speed
0-1500r/min
Vibration frequency
4mm
