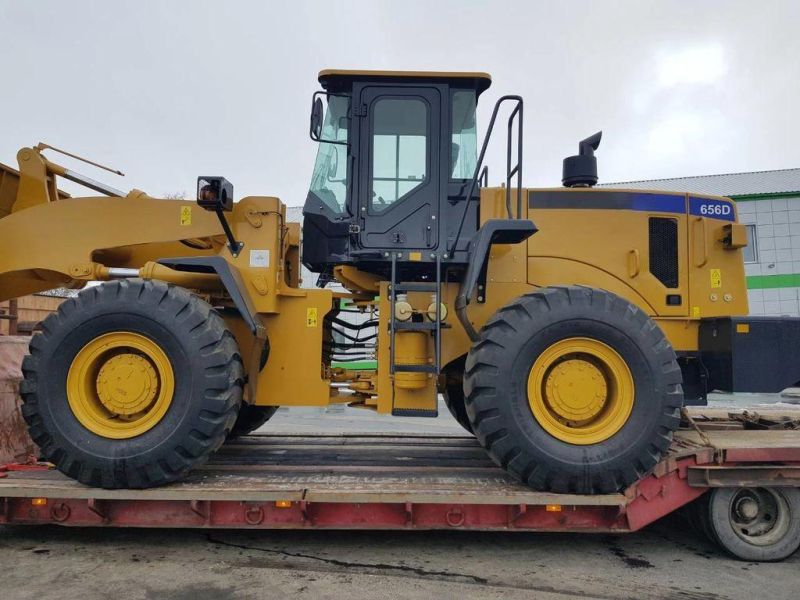

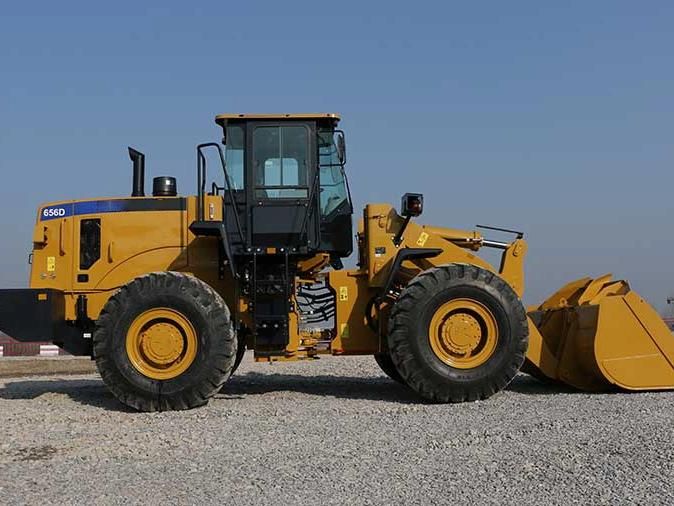

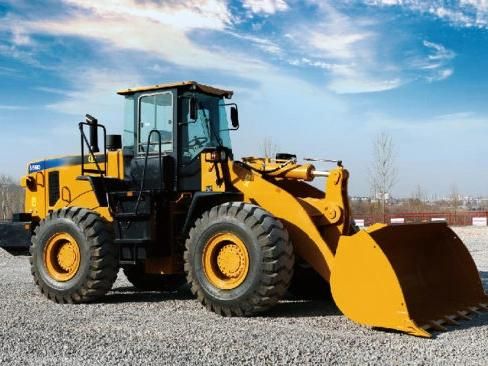

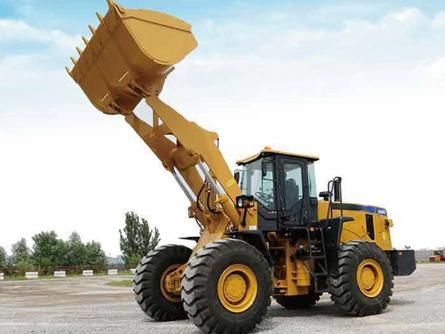

Model | SEM656D - Weichai | |
Main Specifications | |
---|
Rated Payload | 5,000 kg | |
Operating Weight with Standard Bucket | Weichai-16,900 kg | |
Bucket Capacity | 2.7-4.5 m³ | |
Wheel Base | 3,300 mm | |
Overall Dimension | 8,279*2,963*3,457 mm | |
Operating Specifications | |
---|
Breakout Force | 178 kN | |
Dump Clearance | 3,113 mm | |
Articulated Angle | 38±1 ° | |
Transmission | |
---|
Transmission Type | Weichai-Countershaft | |
Transmission Gears | F4/R4 | |
Torque Converter Type | Sigle stage 3 elements | |
Forward I/Reverse I | 7.8/7.8 km/h | |
Forward II/Reverse II | 15/15 km/h | |
Forward III/Reverse III | 22/22 km/h | |
Forward IV/Reverse IV | 39/39 km/h | |
Maker & Type | TR200 | |
Axle (Axle, Tire & Brakes) | |
---|
Main Reducer type | Spiral bevel gear, single stage | |
Final Drive Reduction Type | Planetary type, singe stage | |
Rear- oscillation +/- | ±11 ° | |
Engine | |
---|
Engine Model | Weichai WD10G | |
Rated Power | 162 kW | |
Rated Speed | 2,000 r/min | |
Displacement | 9.7 L | |
Emission | |
Implement Hydraulic System | |
---|
Implement System Type | Single load sensing flow sharing system | |
Hydraulic Cycle Time | 9.3 s | |
System Pressure Setting | 18 Mpa | |
Raise | 5.13 s | |
Brake System | |
---|
Service Brake | Dry & caliper, air to oil control | |
Parking Brake | Drum type shoe brake, spring applied & oil released | |
Steering System | |
---|
System Type | Flow amplifying | |
Steering Pump Type | Piston pump | |
System Pressure Setting | 16 Mpa | |
Steering Angle (L/R) | 38±1 ° | |
Tires | |
---|
Size | 23.5-25 | |
Type | Bias | |
Layer | 16 | |
Textured Type | L3/E3 | |
