Liugong Brand Hbt6013132e Hydraul Trailer Mount Trailer Concrete Pump
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Support
- Warranty：1year
- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
Base Info
- Model NO.：HBT6013132E
- Productivity：60m²,h
- Feeding Height：1400mm
- Vibrating Amplitude：1.4mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Yellow
- Engine Model：6btaa5.9-C180
- Rated Power：132kw
- Operating Weight：5700kg
- Max. Horizontal Conveying Distance：400mm
- Transport Package：Nude Package
- Specification：5940*2215*2530mm
- Trademark：LIUGONG
- Origin：China
- Production Capacity：15sets,Mon
Description
Basic Info.
Model NO. HBT6013132E Productivity 60m²/h Feeding Height 1400mm Vibrating Amplitude 1.4mm Certification ISO9001: 2000, CE Condition New Color Yellow Engine Model 6btaa5.9-C180 Rated Power 132kw Operating Weight 5700kg Max. Horizontal Conveying Distance 400mm Transport Package Nude Package Specification 5940*2215*2530mm Trademark LIUGONG Origin China Production Capacity 15sets/MonProduct Description

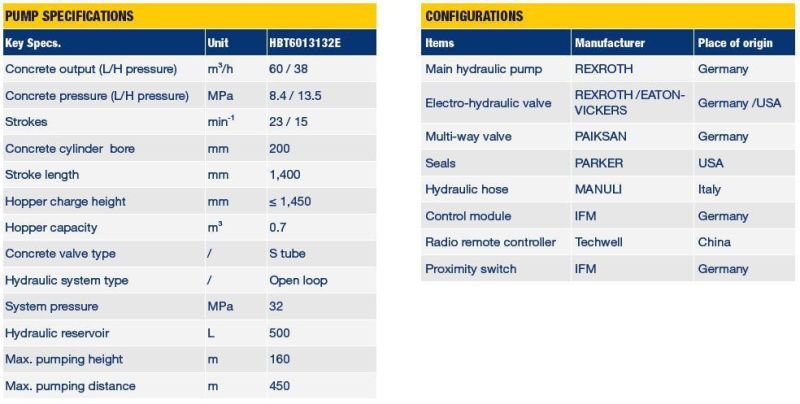

Liugong trailer pump HBT6013132E
Engine Model:6BTAA5.9-C180
Concrete Output (L/H pressure):60 / 38 m3/h
Concrete Pressure (L/H pressure):8.4 / 13.5 MPa
Rated Power:132 kW
Max. Pumping Height:160m
Max. Pumping Distance:450 m
Concrete Slump:80-230 mm
