4X4 Compact Tractor Loader and Backhoe Mini Articulated Mini Tractor Front End Loader and Backhoe
Shandong LEITE machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO, CE, SGS
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic - Mechanical
Base Info
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Overall Operating Weight：8200kg
- Rated Dynamic/Static Load of Front Axle：7.5t,18.75t
- L*W*H (mm)：5920×2250×3770
- Bucket Capacity：1.0m3
- Max. Pulling Force：39kn
- Oil Pressure of Clutch：1373kpa—1569 Kpa
- Max. Digging Depth：4082mm,4500mm
- Cooling Method：Oil-Cooling Pressure Circulation
- Gears：Four Gears Ahead, Four Gears Astern
- Transport Package：Fob
- Specification：Multiple models optional
- Trademark：LEITE
- Origin：Shandong, China (Mainland)
- HS Code：8429521200
- Production Capacity：100 , Month
Description
Performance parameters of backhoe loader VTZ-388Overall Operating Weight 8200KG Rated dynamic/static Load of front axle 7.5t/18.75t Performance Transmission System L*W*H (mm) 5920×2250×3770 Torque Converter Wheel base 2200mm Model TLB1-4WD Min. Ground Clearance 300mm Type Single-stage Three Elements Bucket Capacity 1.0m3 Max. Efficiency 84.4% Breakout Force 38KN Inlet Pressure 0.5Mpa Loading Lifting Capacity 2500KG Outlet Pressure 1.1Mpa-1.3 Mpa Bucket Dumping Height 2742mm Cooling Method Oil-cooling Pressure Circulation Bucket Dumping Distance 925mm Gearbox Digging Depth 52mm Type Fixed Shaft Power Transmission Backhoe Capacity 0.3 m3 Oil Pressure of Clutch 1373Kpa-1569 Kpa Max. Digging Depth 4082mm/4500mm Gears four Gears Ahead, four Gears Astern Swing Angle of Excavator Grab 190o Max. speed 38Km/h Max. Pulling Force 39KN Tyre Engine Model 14-17.5/19.5L-24 Model CUMMINS 4BTA3.9-C100 Pressure of Front wheel 0.55 Mpa Type In Line Direct injection Four-Stroke and Injection Combustion Chamber Pressure of Back Wheel 0.23 Mpa Cylinder-Inside Diameter*Stroke 4-102*120 Brake system Rated Power 74KW Service Brak wet-type Rated Speed 2200r/min internal type Min. Fuel Consumption ≤216g/km.h self-regulation Max.Torque ≥410N.M/1800r/min self-balance Displacement 3.9L Emergency Brake spring brake Steering System terminating brake through hydraumatic Model of Steering Device BZZ5-250 Hydraulic System Steering Angle ±33 o Digging Power of Excavator Grab 46.5KN Min. turning radius 6950mm Digging Power of Dipper 31KN Pressure of the system 12Mpa Bucket Lifting Time 6.8S Axle Bucket Lowering Time 3.1S Manufacturer Carraro Bucket Discharge Time 2.0S Rated dynamic/static Load of front axle 9t/22.5t
Looking Forward To Your Inquiry We Pay More Attention To Details, Details Are Our Quality
1. It has excellent work efficiency and cost performance.
2. The standard bulldozer can level the site and backfill the earth to increase the stability of the machine.
3. Simple, small and flexible, easy to transport, can work in small sites, especially suitable for orchards, such as kiwi, vineyards, oranges, navel oranges, digging trenches, fertilizing, and weeding.
4. It has multiple functions of mining, crushing, removing hooks, drilling, and earthwork, and can quickly replace accessories, greatly improving the utilization rate of the machine.

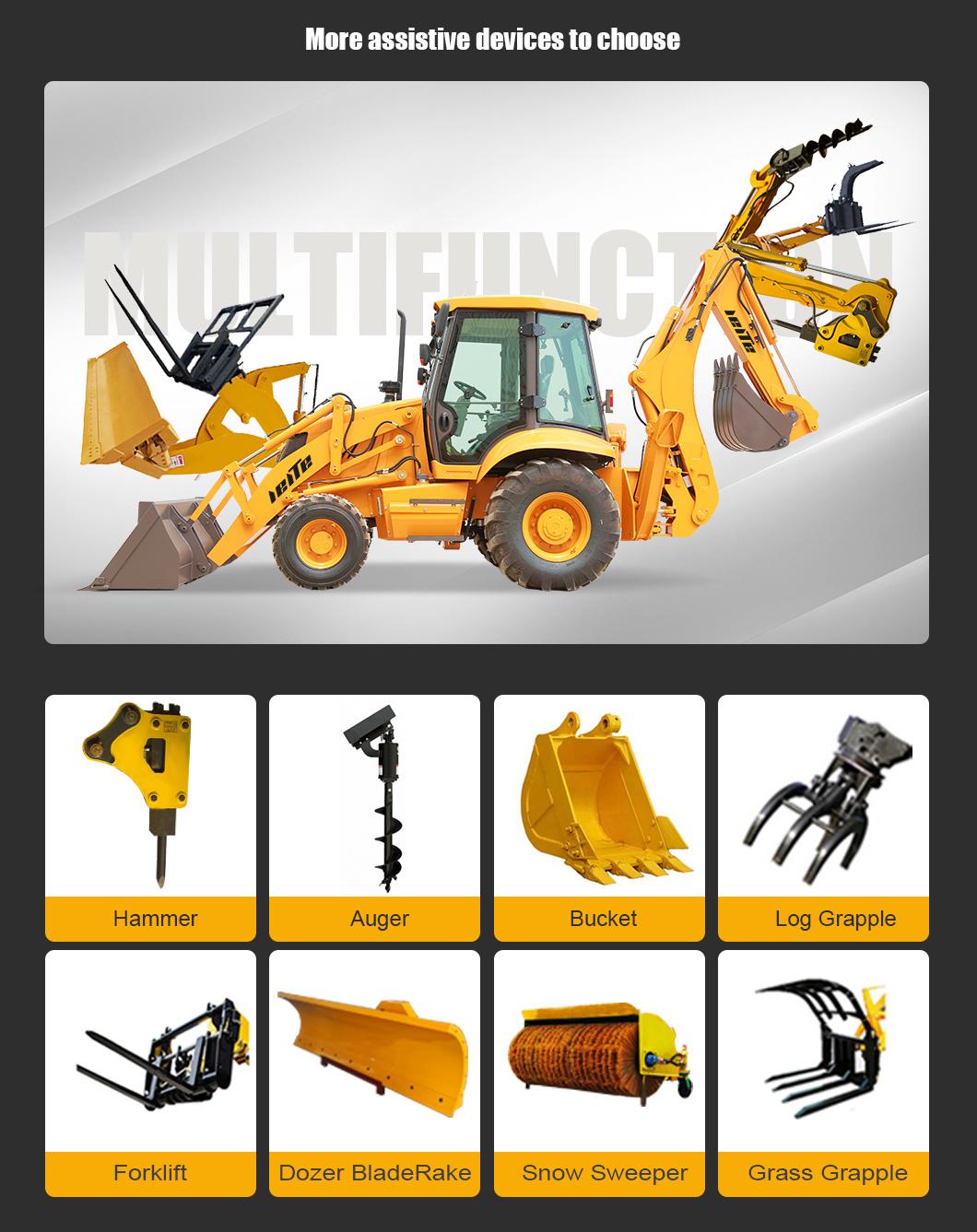

Attachments options make our backhoe loaders multifunctional:
Invest in what you already own - give your machine attachments and equip it to do more. And because our attachments are engineered, balanced and tested to each model, they promise to minimize stress and optimize performance.
Many applications - maybe you know, but more than you know:
Our backhoe loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:
- General Construction.
- Demolitions and Excavations.
- Landscaping.
- Breaking Asphalt and Paving.

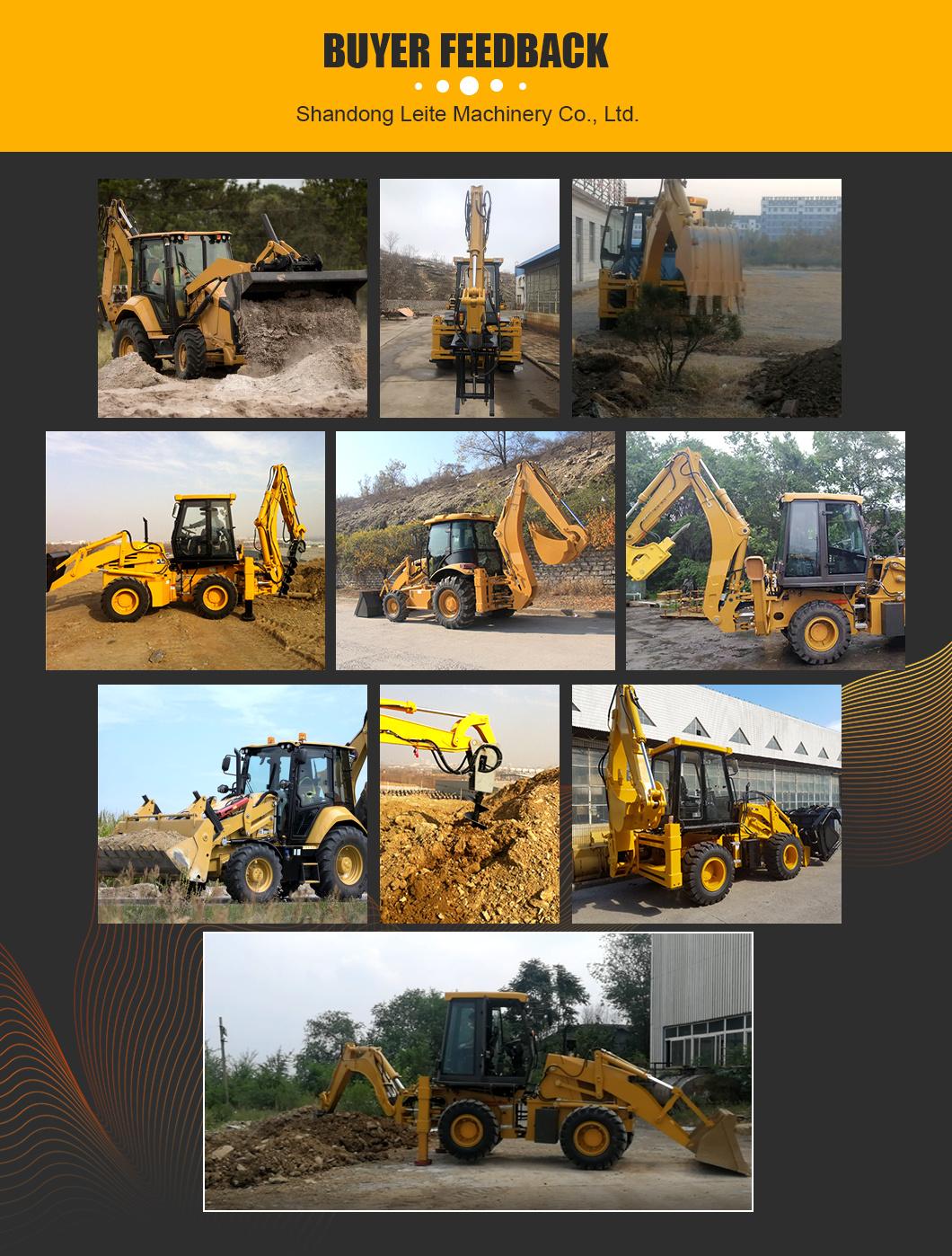

We are a trustworthy companyOur company always pays attention to customer evaluation. The picture below is the unanimous praise of our customers worldwide.
Committed to creating high-quality services, becoming an enterprise trusted by customers, proud of employees, and respected by society.
Realize customer dreams and continue to create maximum value for customers Choose LEITE For Backhoe Loader!!!

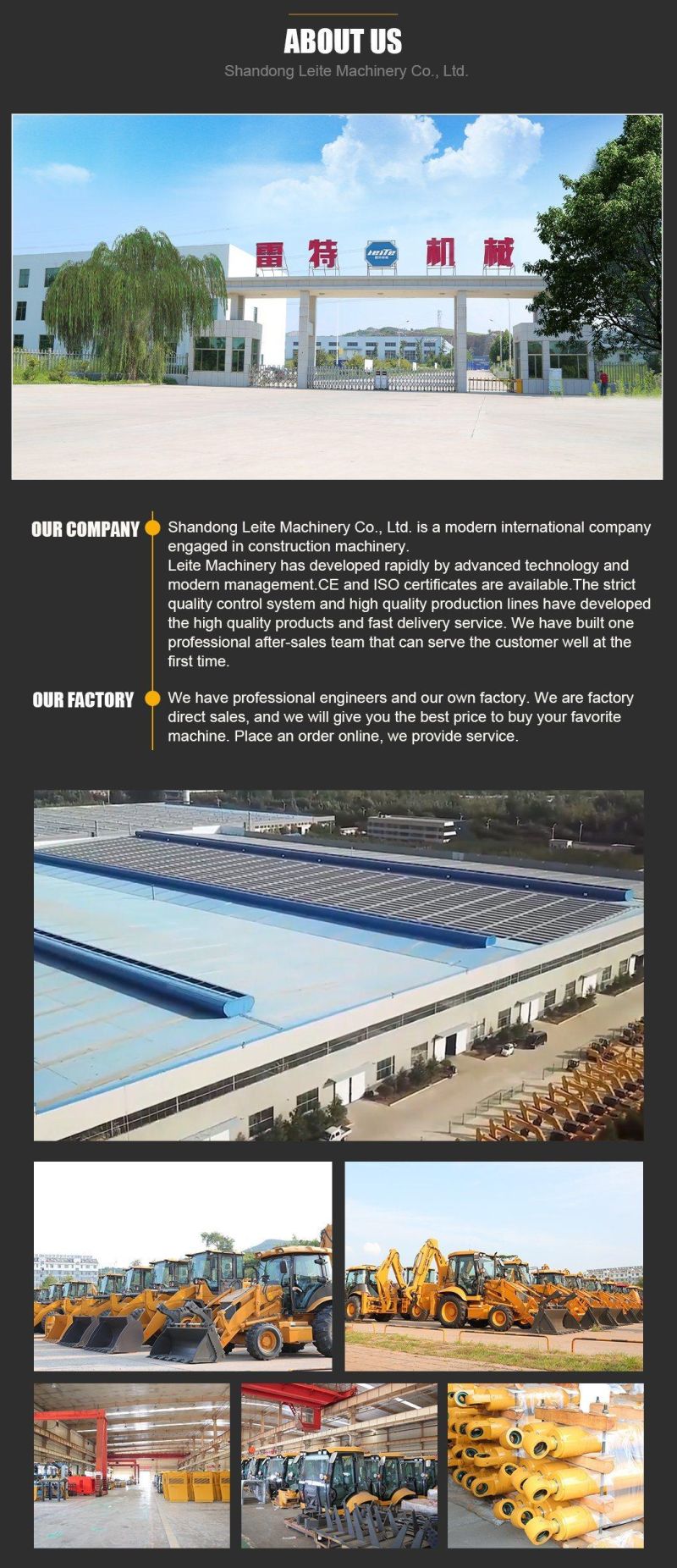

Factory introduction:Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of LEITE Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest.
For transportation, we have three methods: sea, air, and land, and support multiple payment and multiple transportation methods. You can receive this mini excavator you like at the port, and of course you can also receive the mini excavator at your doorstep. (The cost is higher, not recommended), we guarantee that we will not charge any intermediate fees and extra fees that exceed the shipping cost, we just want you to get this favorite mini excavator faster and more preferentially! !
Shipping & Payment
For Transportation, We Have Three Methods: Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods. You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep. (The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially! !
FAQ
1.Q:Can The Factory Support Mass Production? Can I Purchase A Customized Sample First?
A:Dear friends, VOTE company can support mass production. It can mass produce 100+Backhoe Loader in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Q:Can It Be Transported To My Door? I Want To Get My Favorite Backhoe Loader Soon?
A:Of Course, My Friend, But If Your Family Is Located Very Close To The Port, We Suggest That You Can Go Directly To The Port To Transport Your Goods, So You Can Save A Lot Of Money! If The Distance Is Long, You Can Find An Inland Transportation Company By Yourself, And We Can Communicate With Him; We Can Also Find An Agency For You, But The Toll Will Be Very High (Not Recommended)
During Transportation, We Will Not Charge Any Intermediate Fees And Additional Service Fees Other Than Freight. We Just Want You To Get Your Favorite Backhoe Loader Earlier.
3.Q:How Can I Guarantee After-Sales After I Buy It?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
