• Model NO.：RP602
• Automatic Grade：Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Transport Package：Cartons
• Trademark：top brand
• Origin：China
• HS Code：8429521200
• Production Capacity：500000

Basic Info.

Model NO. RP602 Automatic Grade Automatic Product Capacity >400t/h Certification ISO9001: 2000, CE Condition New Transport Package Cartons Trademark top brand Origin China HS Code 8429521200 Production Capacity 500000

Product Description

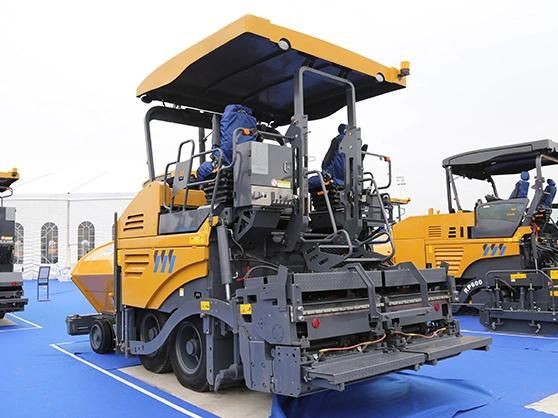

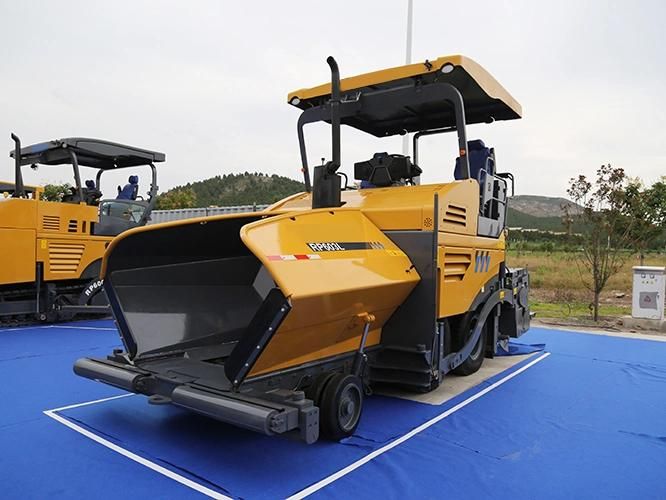

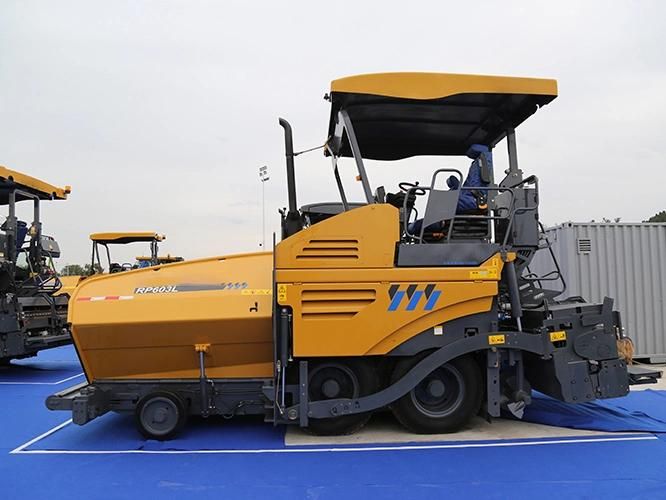

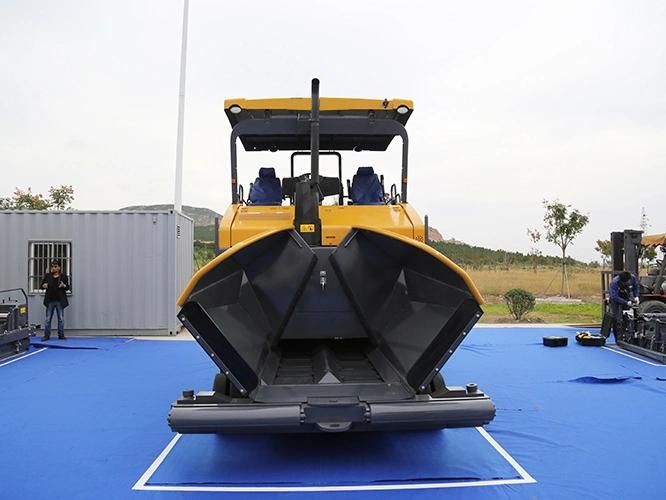

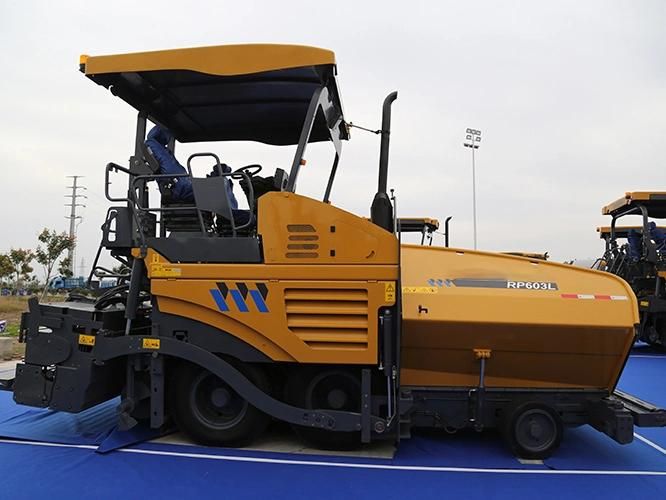

160HP Foreign Engine Asphalt Concrete Paver Price RP602

Product Description

asphalt concrete pavers to "technology leadership, stable and reliable performance, environmental protection and energy conservation" for the design concept, in the technical performance, construction quality, the use of economic and operational comfort have reached a world-class level. The product is mainly used for all levels of road surface paving, can also be used for all levels of highway paving.

1. Configuration of the original German water-cooled supercharged engine, the engine power is strong, mature and reliable.

2. Configuration four in one strong composite radiator, through the concentration of intelligent cooling, sub-tank diversion, can guarantee the whole machine in the environment at high temperature of 50 ºC for a long time continuous work.

3. Running around the independent drive, digital microcomputer control, constant speed automatic control technology.

4. The input material adopts four sets of independent hydraulic actuators, and the material level adopts ultrasonic sensing control technology to realize the whole proportion of the material supply.

5. The left and right feeding device can be easily moved up and down as a whole, can adapt to different paving thickness, reduce material segregation.

6. The material is made of high wear-resistant alloy material, and the bottom plate and screed bottom plate are imported with high wear-resistant steel plate.

7. Intelligent leveling technology, has a good human-computer interaction interface, easy maintenance, environmental protection and energy conservation, high reliability and wide adaptability and so on.

8. Automatic leveling the use of imported German digital angle leveling machine, higher accuracy.

9. Equipped with double vibrating eccentric vibrating machine.

10. Centralized lubrication system can automatically evenly to the high temperature parts of the bearing oil.

11. The machine has the advantages of high degree of automation, simple operation, good construction quality and high operation efficiency.



Item	Unit	RP602
Basic paving width	m	2.5
Max paving width	m	6.0
Max paving thickness	mm	380
Paving speed	m/min	0~14
Travel  speed	Km/h	0~3.0
Theoretical productivity capaci	t/h	400
Hopper capacity	t	13
Gradeability	%	20
Pavement evennesss	mm/3m	3
Transverse leveling accuracy	%	±0.03
Centre crown ratio	%	0~3
Engine model		BF4M1013EC
Engine power	Kw	118
Engine speed	r/min	2300
Diesel tank capacity		230
Machine weight	t	15.8~21.5
Overall dimensions	mm	6230*2500*3855
Tamper vibration frequency	r/min	/
