Rubber Track 450X83.5X74 for Yanmar Vio75 Heavy Duty
Shanghai Puyi Industrial Co., Ltd.- After-sales Service：Replacement
- Warranty：12 Months
- Type：Crawler
- Application：Excavator
- Certification：ISO9001: 2000
- Condition：New
Base Info
- Model NO.：450 X83.5X74
- Width：450mm
- Pitch：83.5mm
- Link：74
- Color：Black
- Material：Rubber and Steel
- Delivery Time：7-10 Days
- Transport Package：Wooden Pallet
- Specification：450X83, 5X74
- Trademark：No Marks or As Buyer′s Requests
- Origin：Shanghai, China
- HS Code：8431499900
- Production Capacity：1000 Pieces Per Month
Description
Basic Info.
Model NO. 450 X83.5X74 Width 450mm Pitch 83.5mm Link 74 Color Black Material Rubber and Steel Delivery Time 7-10 Days Transport Package Wooden Pallet Specification 450X83, 5X74 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 1000 Pieces Per MonthProduct Description
Rubber Track 450X83.5 X74 for Heavy Duty Assembly :Size:450x83.5x74
Width:450mm
Pitch:83.5mm
Link:74
Length:6179mm
Lenght can be adjustable
Weight: 375.92KG
Warranty: Guarantee one year under normal use
Characteristics of rubber track:
1). Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration;
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Easy to change
About us:
We supply Rubber Tracks, Rubber Tracks for Truck, Small Rubber Track,
Mini Asphalt Paver Rubber Track, Rubber Track for Harvesting Excvavtor,
Rubber Track for Skid Steer Loader, Rubber Track for Snowmobile,
Rubber Track for snowblower, Rubber track for robot, etc.
Adaptation Modes:
| MODEL | ORIGINAL SIZE |
| ROBEX 80CR.9(HYUNDAI) | 450x83,5x74 |
| PC75.6 () | 450x167x37 |
| PC75.1 () | 450x167x37 |
| PC75.2 () | 450x167x37 |
| PC75UU.1 | 450x167x37 |
| PC60.6 () | 450x83,5x74 |
| PC70FR.1 () | 450x83,5x74 |
| PC75MR6 () | 450x83,5x74 |
| PC75UU ) | 450x83,5x74 |
| PC75UU.2 () | 450x83,5x74 |
| PC75UU.3 () | 450x83,5x74 |
| PC78MR2 | 450x83,5x74 |
| PC78MR3 () | 450x83,5x74 |
| PC78MR6 () | 450x83,5x74 |
| PC78US.5 | 450x83,5x74 |
| PC78US.6 | 450x83,5x74 |
| PC78UU.6 | 450x83,5x74 |
| PC80MR3 | 450x83,5x74 |
| PC88MR6 | 450x83,5x74 |
| PC88MR8 | 450x83,5x74 |
| VIO70 | 450x83,5x74 |
| VIO70.A | 450x83,5x74 |
| VIO70CR | 450x83,5x74 |
| B7 SIGMA | 450x83,5x74 |
| B7U | 450x83,5x74 |
| VIO75 | 450x83,5x74 |
| VIO75.A | 450x83,5x74 |
| VIO75V | 450x83,5x74 |
| VIO80 | 450x83,5x74 |
| VIO80U | 450x83,5x74Y |

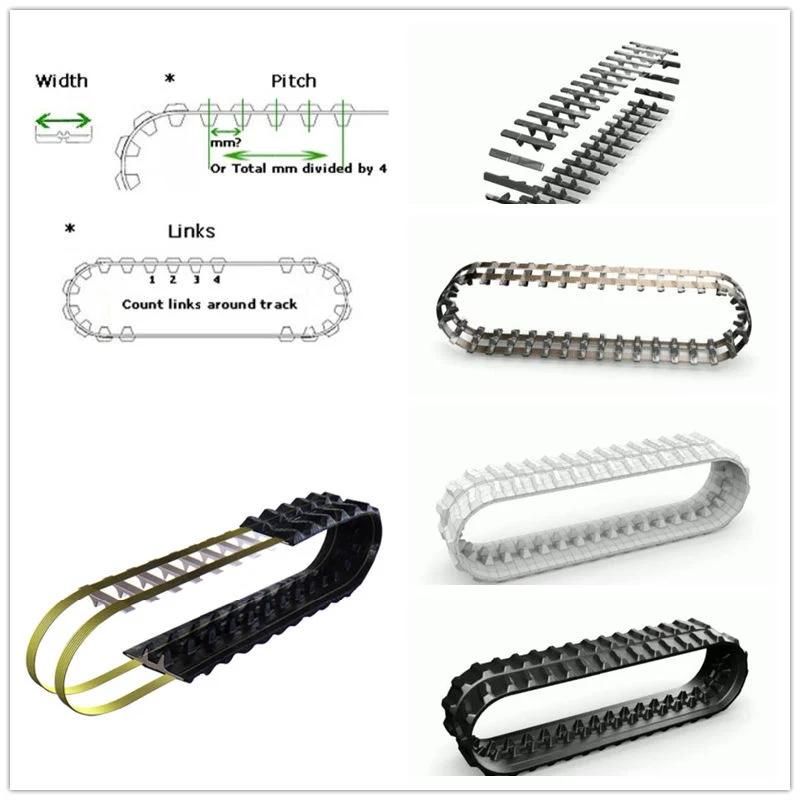

Design process:
Parameters:
| Size | weigth/link | Size | Weight/link | Size | Weight/link | ||
| 130*72 | 0.36 | WD300*72 | 1.459 | 400*144 | 7.75 | ||
| 150*60 | 0.52 | B300*84 | 2.88 | 400*144Y | 7.41 | ||
| 150*72 | 0.55 | T300*86 | 3.13 | 420*100 | 5.3 | ||
| 170*60 | 0.48 | 300*109KW | 3.38 | 450*71 | 4.45 | ||
| 180*60 | 0.56 | K300*109 | 3.56 | DW450*71 | 4.82 | ||
| 180*72 | 0.64 | 300*109N | 3.32 | 450*73.5 | 4.57 | ||
| 180*72K | 0.87 | 300*109W | 3.21 | 450*76 | 5.27 | ||
| H180*72 | 0.77 | 320*52.5 | 1.69 | 450*81.5 | 5.24 | ||
| 190*60 | 0.59 | 320*54 | 1.81 | 450*81N | 5.19 | ||
| 190*60 | 0.59 | B320*84 | 2.95 | 450*81W | 5.02 | ||
| 190*72 | 0.72 | B320*86 | 2.99 | 450*83.5 | 5.47 | ||
| 200*72 | 0.84 | B320*86SB | 2.99 | 450*83.5Y | 5.67 | ||
| 200*72K | 1.07 | B320*86C | 3.01 | 450*84 | 4.22 | ||
| 230*48 | 0.87 | B320*86Z | 3.12 | B450*86 | 4.33 | ||
| 230*48K | 1.06 | B320*86CM | 3.01 | B450*86SB | 4.3 | ||
| 230*72 | 1.09 | B320*86R | 2.99 | B450*86C | 4.31 | ||
| 230*72K | 1.34 | T320*86 | 3.22 | B450*86Z | 4.51 | ||
| 230*96 | 1.77 | T320*86MB | 3.3 | B450*86CM | 4.37 | ||
| 230*101 | 1.92 | T320*86SB | 3.27 | B450*86R | 4.3 | ||
| 250*47 | 1.11 | T320*86C | 3.25 | 450*90 | 4.07 | ||
| 250*48.5 | 1.13 | T320*86Z | 3.53 | KU450*90 | 3.9 | ||
| 250*52.5 | 1.04 | 320*90 | 2.85 | 450*110 | 6.9 | ||
| 250*52.5K | 1.31 | 320*100 | 2.67 | T450*100MB | 5.3 | ||
| 250*72 | 1.17 | 320*100W | 3.01 | T450*100 | 5.09 | ||
| B250*72 | 1.03 | 320*106 | 3.63 | T450*100SB | 5.16 | ||
| 250*96 | 2.21 | 350*52.5 | 1.85 | T450*100C | 5.2 | ||
| 250*109 | 2.39 | 350*54.5 | 2.31 | T450*100Z | 5.55 | ||
| 260*55.5 | 1.48 | 350*56 | 2.05 | 450*163 | 10.47 | ||
| 260*96 | 1.91 | 350*75.5 | 3.58 | 485*92W | 7.62 | ||
| 260*109 | 2.16 | 350*90 | 1.85 | 500*71 | 7.5 | ||
| 280*72 | 1.43 | 350*100 | 3.69 | 500*90 | 5.38 | ||
| 280*106 | 3.05 | 350*108 | 3.92 | 500*92 | 7.81 | ||
| 300*52.5KB | 1.67 | 350*109 | 4.12 | 500*92W | 8.6 | ||
| 300*52.5KW | 1.71 | 370*107 | 4.68 | 500*100 | 6.34 | ||
| 300*52.5N | 1.44 | 400*72.5KB | 3.44 | 500*146 | 9.97 | ||
| 300*52.5W | 1.56 | 400*72.5KW | 3.72 | 600*100 | 8.3 | ||
| JD300*52.5N | 1.54 | 400*72.5N | 3.48 | 600*125 | 10.39 | ||
| K300*52.5 | 1.72 | 400*72.5W | 3.85 | 650*110 | 13.34 | ||
| KB300*52.5N | 1.55 | 400*72.5Y | 3.62 | 650*120 | 13.75 | ||
| 300*53 | 1.81 | 400*74 | 3.4 | 650*125 | 15.8 | ||
| 300*55 | 1.88 | 400*75.5 | 4.09 | 700*100 | 10.9 | ||
| 300*55.5 | 1.95 | 400*86 | 4.14 | 700*125 | 14.29 | ||
| 300*71 | 3.31 | 400*90 | 2.22 | 750*150 | 21.34 | ||
| 300*72 | 1.77 | 400*107 | 4.95 | 800*125 | 19.14 | ||
| 400*142 | 7.12 | K800*150 | 21.55 | ||||
| ASV TRACK | M800*150 | 20.05 | |||||
| 280*102*37 | 1.36 | PAVER TRACK | 900*150 | 31.23 | |||
| 380*102*42 | 1.9 | 356*152.4*46 | 4.81 | 1000*150 | 33.3 | ||
| 460*102*51 | 2.41 | 483*152.4*52 | 6.07 | ||||
| 460*102*56 | 2.49 | 460*225*36 | 7.79 | SPECIAL TRACK | |||
| 460*102C*51 | 2.44 | 160*87.63*28 | 0.41 | ||||
| 510*101.6*51 | 2.6 | 240*87.63*28 | 0.51 |

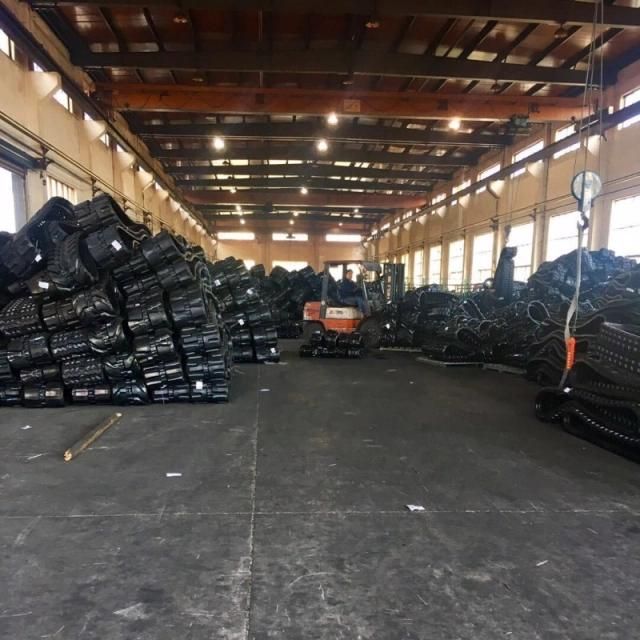

Warehouse:
