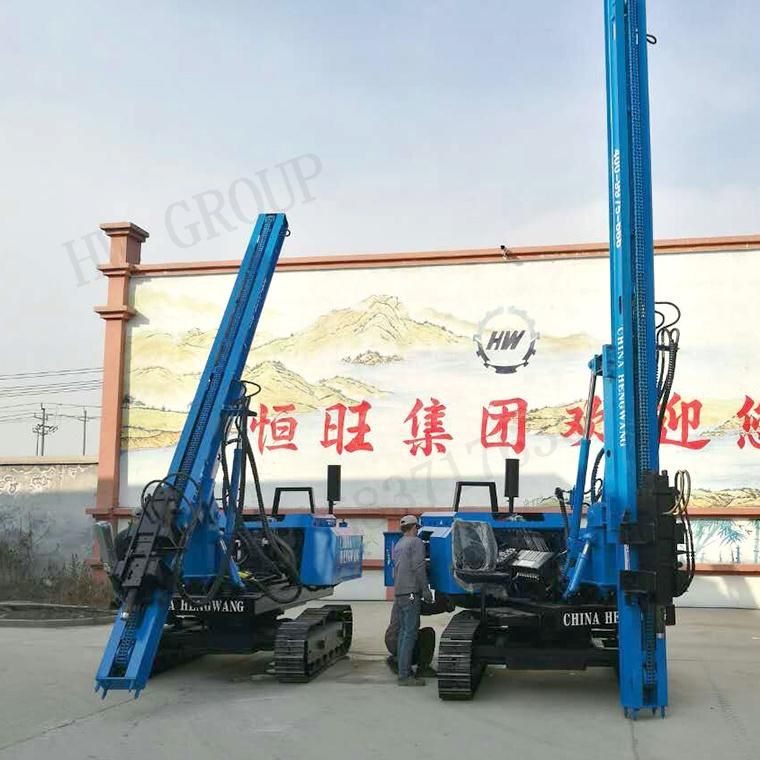

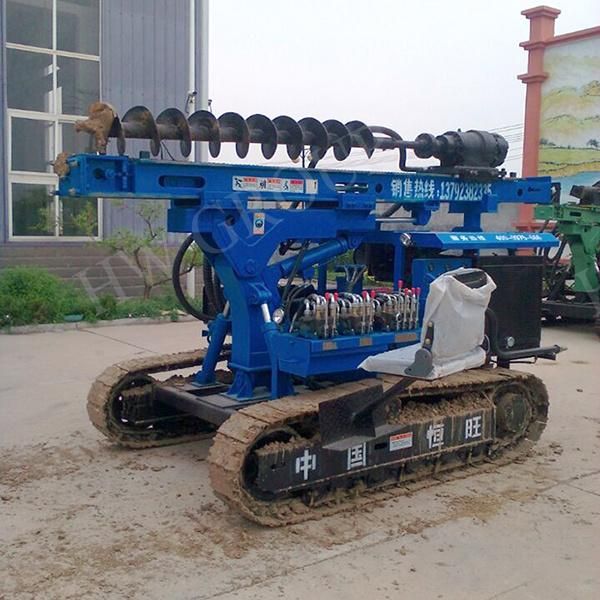

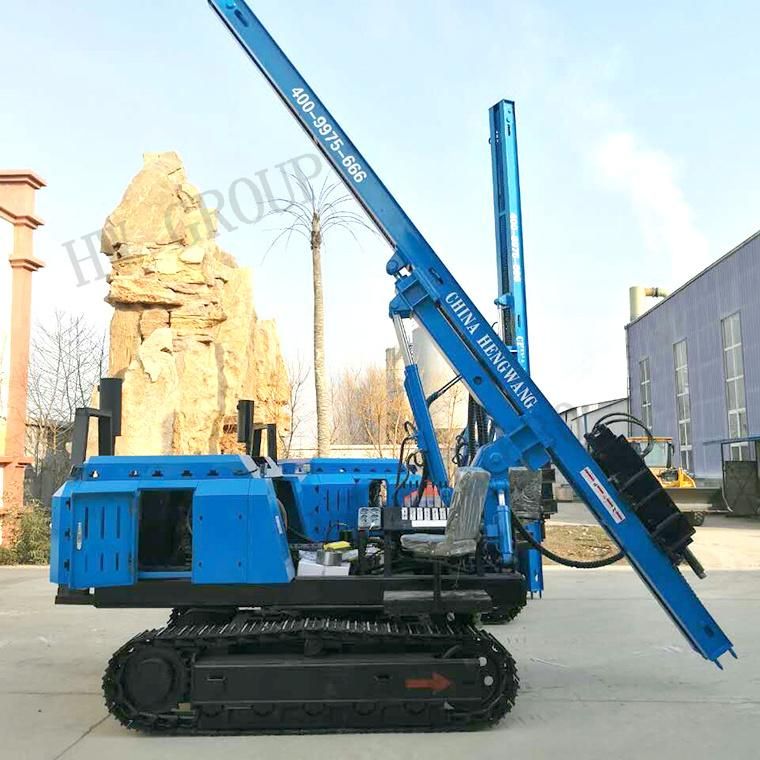

Hydraulic Screw Pile Driver Machine Pneumatic Hammer Pile Driver
Ji Ning Hengwang Mining Machinery Co., Ltd.- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：90kw
- Noise：With Noise
Base Info
- Model NO.：HW30H
- Certification：CE, ISO 9001:2000
- Condition：New
- Pile Length：0-6000mm
- Duplex Gear Pump Pressure：20MPa
- Hydraulic System Pressure：20MPa
- Diesel Engine Power：80kw
- Starting Voltage：24V
- Effective Press Pile Stroke：0-3000mm

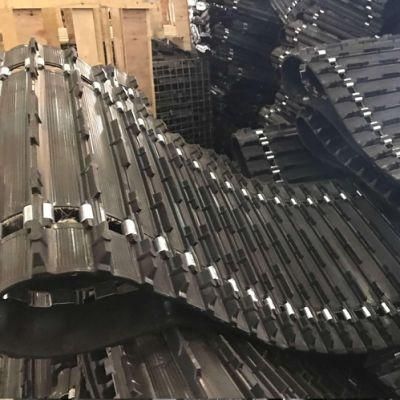

- Track Shoe：350mm
- Walking Speed：5-10km,Hr
- Drilling Depth：0-6000mm
- Hammer Impact：780j
- Main Valve Flow：120 L,Min
- Transport Package：Container
- Origin：Shandong
- Production Capacity：500
Description
Technical Parameters1 Model HWZGX-600L Remark 2 Hammer impact 780J Joule,we can make more powrful impact as your demand 3 Pile length 0-6000 mm 5 Duplex gear pump pressure 20 Mpa 6 Duplex gear pump displacement 40 ml/r 7 Hydraulic system pressure 20 Mpa 8 Main valve flow 120 L/Min 9 Overall Machine weight 6 T 10 Diesel engine power 80 KW 11 Rated Speed 2400 R/min 12 Starting Voltage 24 V 13 Rotation angle 360 ° 14 Rotation semi diameter(rotating shaft to Pod distance) 1925 mm 15 Effective press pile stroke 0-3000 mm 16 Dimension(LXWXH) 6200×2200×2850 mm 17 Track shoe 350 mm 18 Walking motor total displacement 1575 ml/m 19 Walking motor rated pressure 18 Mpa 20 Walking motor output torque 4300 N.M 21 Walking motor rotate speed 50 r/min 22 Press Pile Diameter 0-600 mm 23 Drilling Depth 0-6000 mm 24 Operating Speed (m/min) 1.5 90s/per pile 25 Number of impacts / strokes per 1 minute 900 times/min 26 Maximum lengh of Piles to be rammed 6 M 27 Walking speed 5-10 Km/hr 28 Gradeability 0-35 ° 29 Oil tank capacity 200 L 30 Hydraulic tank capacity (L) 500 L

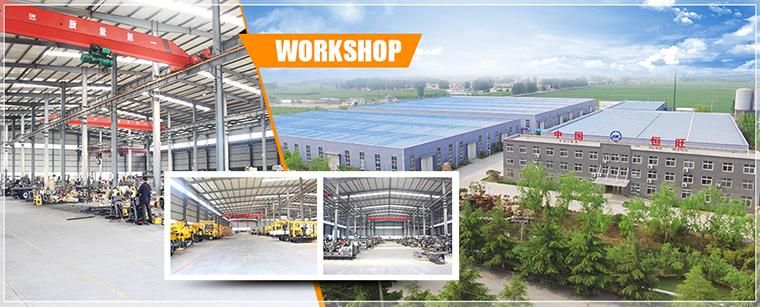

Our company of Hydraulic screw pile driver machine pneumatic hammer pile driver
