• Model NO.：936E
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.6-1.9cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight with Cab：35000-35585 Kg
• Engine Power：186 Kw,2200 Rpm
• Maximum Travel Speed (High)：5.5 Km,H
• Maximum Travel Speed (Low)：3.4 Km,H
• Maximum Swing Speed：10 Rpm
• Track Shoe Width (Std)：600 mm
• Digging Depth：7340 mm
• Dumping Height：7160 mm
• System Pressure：34.3MPa
• System Maximum Flow：2*300 L,Min (2X79 Gal,Min)
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：11167 mm*3190 mm*3530 mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. 936E Drive Type Internal Combustion Drive Bucket Capacity 1.6-1.9cbm Size Small-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight with Cab 35000-35585 Kg Engine Power 186 Kw/2200 Rpm Maximum Travel Speed (High) 5.5 Km/H Maximum Travel Speed (Low) 3.4 Km/H Maximum Swing Speed 10 Rpm Track Shoe Width (Std) 600 mm Digging Depth 7340 mm Dumping Height 7160 mm System Pressure 34.3MPa System Maximum Flow 2*300 L/Min (2X79 Gal/Min) Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 11167 mm*3190 mm*3530 mm Trademark SINOMADA Origin China Production Capacity 300piece/Month

Product Description

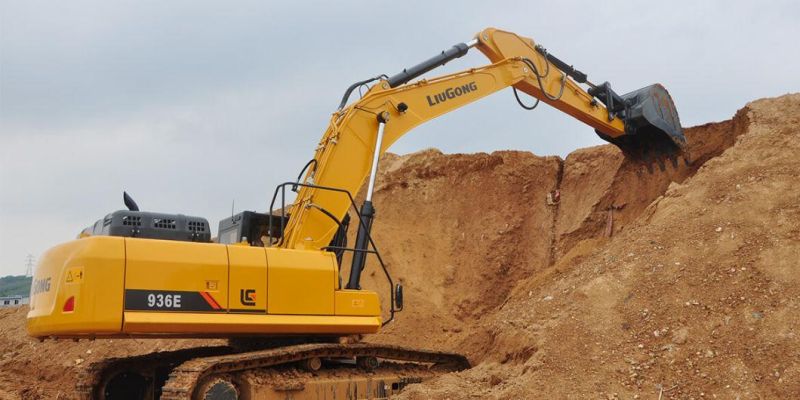

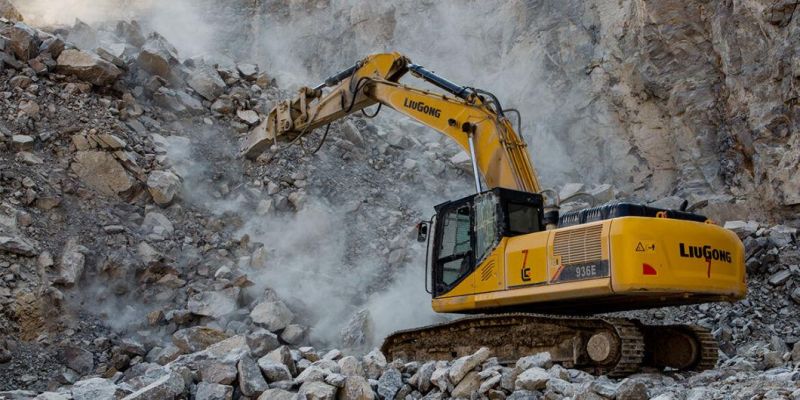

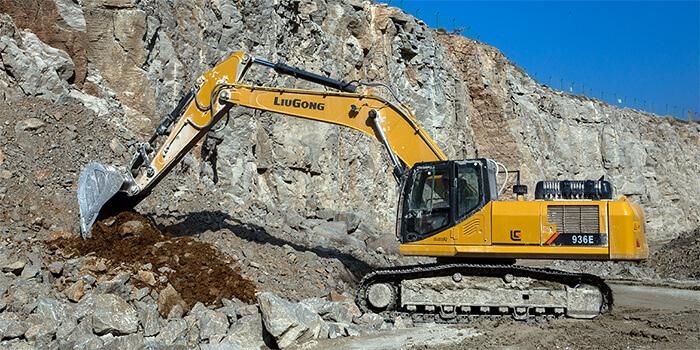

     35000-35585Kg 1.6/1.9Cbm Large Excavator 936E 186 kW/2200 rpm Engine Power

 Product-Features:

• Proven negative flow hydraulics have optimized the main control valve, improved the speed of front end cylinders, while cutting down the hydraulic system's damper loss, leading to much better working efficiency.
• Fuel efficient Cummins engine comes with a combination of a proven cooled-EGR system.
• The LiuGong E series excavator features 6 selectable working modes that optimize performance and fuel consumption to your specific conditions
• E series cab high-strength ROPS ensures operator protection. Falling Object Protection System (FOPS) is optional.

Specifications:


Operating Weight	25,500 kg
Bucket Capacity	1.1-1.2m³
Engine	Cum B5.9
Gross Power	133 kW (178.3 hp) @ 2,000 rpm-
Net Power	125 kW (167.6 hp) @ 2,000 rpm
Peak Torque	708 N•m @ 1,500 rpm
Travel Speed	High:5.9km/h, Low:3.5km/h
Drawbar Pull	229 kN
Swing Speed	11.1 rpm
Arm Breakout Force, max, ISO	134 kN
Bucket Breakout Force, max, ISO	179 kN
Maximum Dig Depth	6925 mm
Reach at Ground Level	10180 mm
Depth of 8' Level Bottom	6675 mm
Maximum Dig Height	9865 mm
Dump Height	6920 mm
Maximum Dig Depth of Vertical Wall	5795 mm
Overall Lenth	10,180 mm
Overall Width	3,190 mm
Overall Height	3,200 mm
