• Model NO.：YG18
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Maximum Digging Height：3400mm
• Maximum Digging Depth：2100mm
• Max Digging Radius：3850mm
• Rated Speed：2km,H
• Hydraulic Pump Brand：Triple Pump
• Hydraulic Valve Brand：Husco-Kayaba
• Unique Selling Point：Zero Swing with U Shape Body
• Power(W)：14.7kw
• Track Material：Steel , Rubber Track
• Attachments：Auger, Breaker, Quick Hitch, Bucket and So on
• Weight：0.6t,0.8t,1t,1.5t,2t,3t,3.5t
• Delivery Time：Within 7 Days
• Transport Package：Standard Export Package
• Trademark：Yugong
• Origin：China
• HS Code：8429521200
• Production Capacity：50 Set,Sets Per Month

NO.ItemBrandITraveling motorEATON2Swing motorEATON3Multiplex valveHusco-kayaba4Oil pumpTriple pump5CylinderFamous Domestic Brands   NO.ItemParameterIEngine powerl4.7kw/2200rpm2Working pressurel6MPa3Flow rate2x24.2 Variable+l3.2L/min Gear Pump4Maximum excavation force10.5KN5Max. Gradeability30°6Grounding specific voltage30Kpa7Bucket digging force11.5KN8Max.travel speed(high/low)2Km/h9Swing speed10rpm

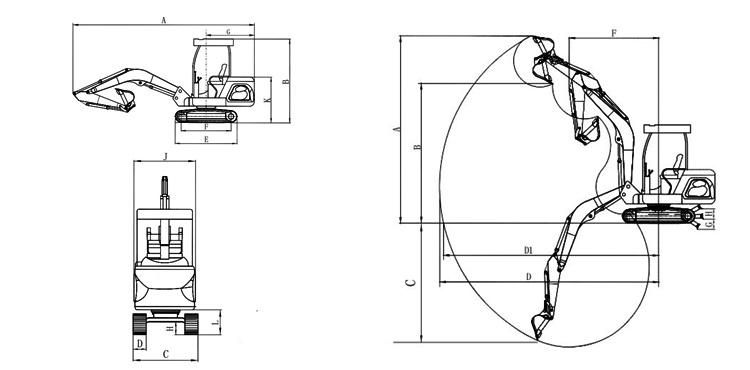

Main Demesions:

Dimension Unit: mmA: Length3630B: Height2250C: Chassis width1160D: Trackband Width250E: Total length of track1660F: Wheelbase1280G: Counter weight turning radius650H: Height off the ground250I: Total height2150J: Platform External Width1030K: Height (From seat to ground)1210L: Upper chassis ground clearance440  Operating rangeUnit: mmA:Max. Digging height3400B: Max. Dumping height2420C:Max. Digging depth2100D:Max. Digging radius3850DI: Max. Ground digging distance3620E: Mining radius of maximum mining height2610F: Min. Rotation radius1530G: Max. Digging depth of bulldozer blade170H: Max. Upgrade height of bulldozer blade150

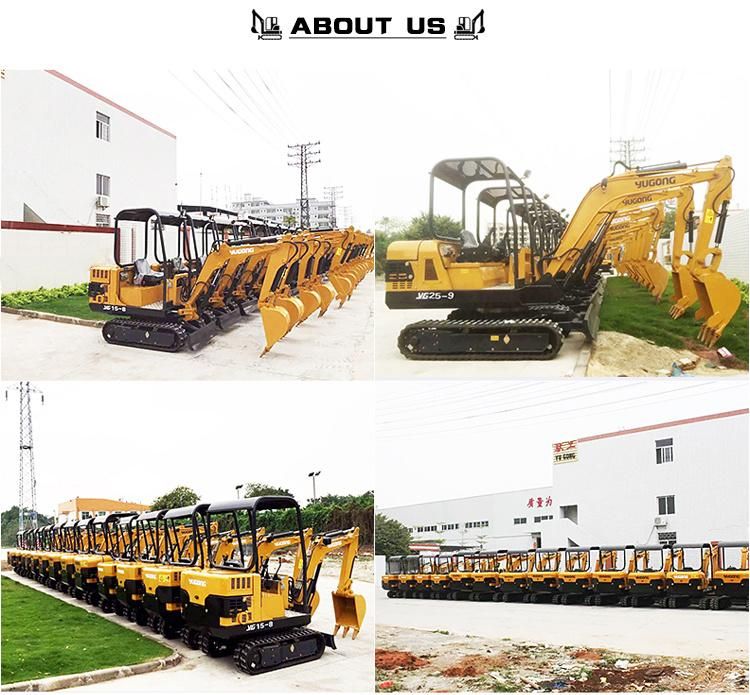

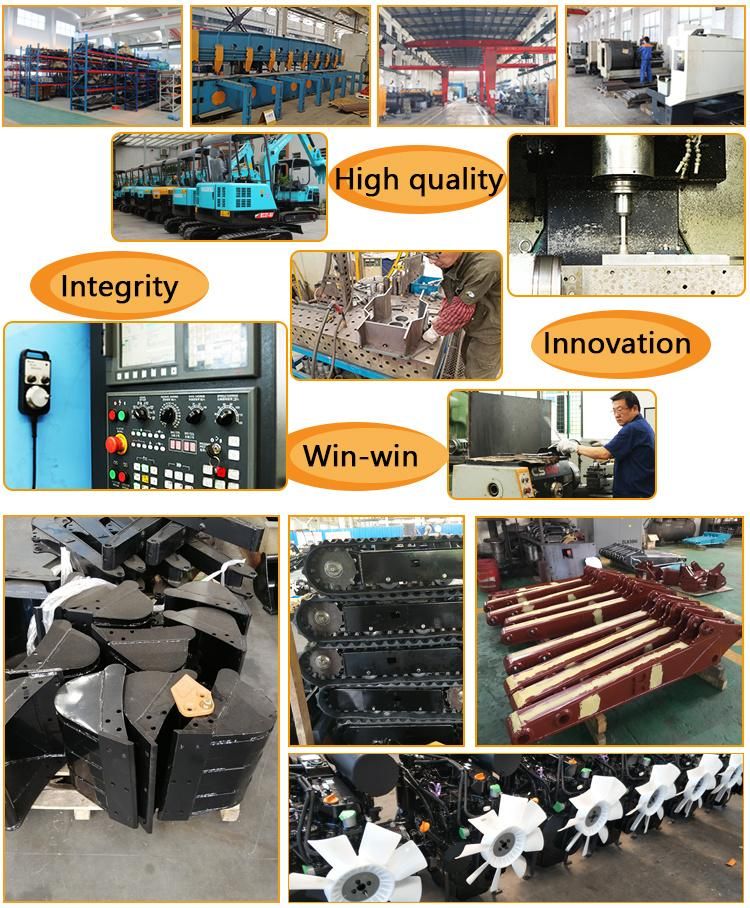

Changzhou Raymond International Co., Ltd is a professional manufacturer and exporter which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in Changzhou City, Jiangsu Province, Near to Shanghai City. Which has large capacity to make various kinds products like mini excavator, hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products' performance and innovate designing to meet more and more clients' demands.



1.How long is the mini excavator warranty time?

A: One year or 2000 hours



2.Which certification of mini excavator do you have ?

A:CE,ISO9001,SGS,etc.expect these for different countries,other certificates required by customer is agreed.



3.What are our advantages compared with Manufacturer/Factories?

Competitive Price-we work as the leading dealers of various leading China construction machinery,and are treated with best dealership prices every year.From numerous comparison and feedbacks from clients,our price is more competitive than Manufacturer/Factories.

Quick Response-Our team is consisted of a group of diligent and enterprising people,working 24/7 to response client inquires and question all the time.Most problems can be solved within 12 hours.
