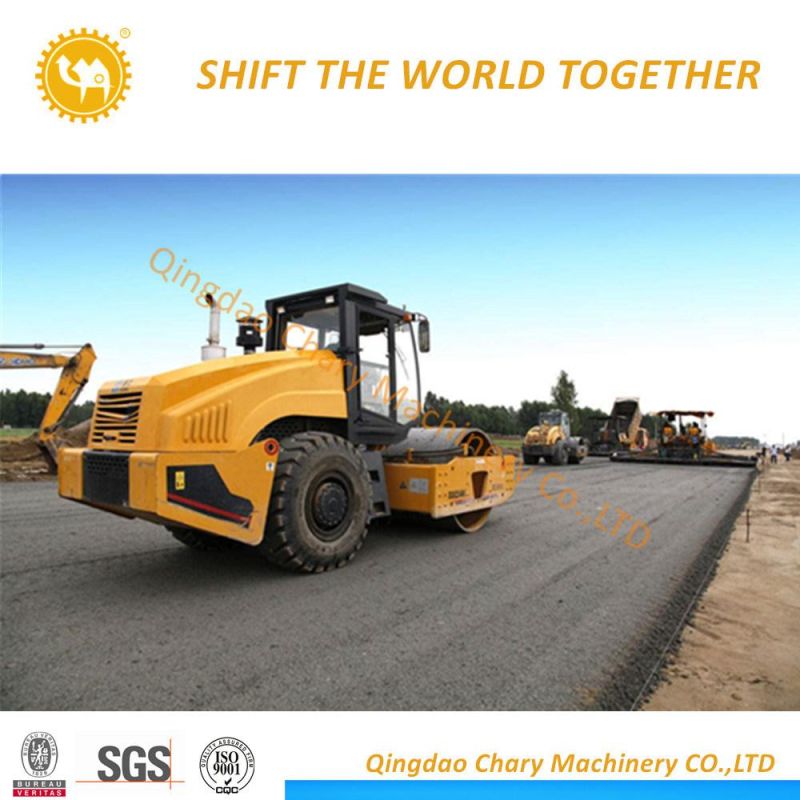

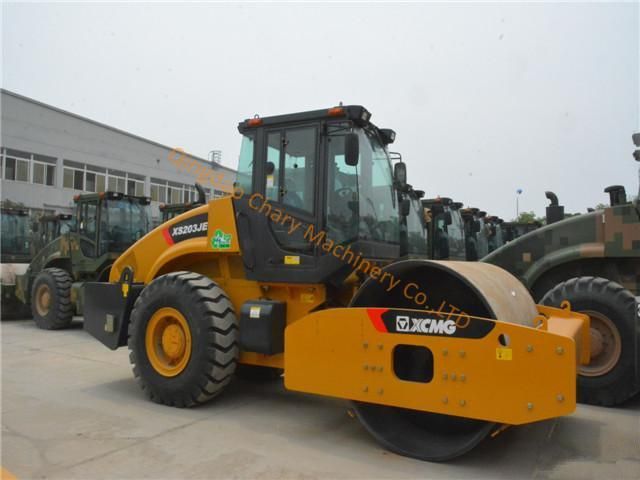

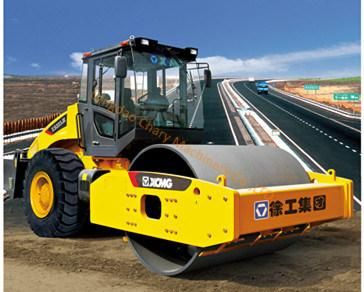

Road Roller Double Drum Vibratory Compactor

Qingdao Chary Machinery Co., Ltd.
  • Type：Road Roller
  • Working Method：Wheeled
  • Axle：Triaxial Three-Wheel
  • Grinding Wheel Type：Tire Grind
  • Compaction Depth：35cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：Compactor
  • Travel Speed：0-20
  • Centrifugal Force：18KN
  • Certification：EPA, CS, CE, ISO 9001:2000
  • Condition：New
  • Use：Road Roller
  • Product Name：Road Compactor
  • Delivery Time：Shipped in 30 Days After Payment
  • Color：Customers′ Optional
  • Fuel Tank Capacity：130L
  • Max. Working Weight：12000kg
  • Min. Working Weight：10000kg
  • Transport Package：Nude Packing, Container
  • Specification：4770*2250*3285mm
  • Origin：China
  • HS Code：8429209000
  • Production Capacity：500 Unit,Month

Description

Operating weightkg12000Load applied on front drumkg10000Load applied on rear wheelskg6500Compacting widthmm2130Static linear loadN/cm529Vibration frequency(Low/High)Hz28/33Nominal amplitude(High/Low)mm1.86/0.93Exiting force(High/Low)KN340/240Travel speedkm/h0~10Steering angle°±33Swing angle°±10Theoretical  gradeability%50Min. external turning radiusmm6500Engine model DEUTZ BF6M2012CEngine powerkw136Rated engine speedr/min2200Engine oil consumptiong/kW.h222Hydraulic oil tank capacityL240Fuel tank capacityL240Road Roller Double Drum Vibratory CompactorRoad Roller Double Drum Vibratory Compactor

Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.Road Roller Double Drum Vibratory CompactorRoad Roller Double Drum Vibratory Compactor

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.

Road Roller Double Drum Vibratory CompactorRoad Roller Double Drum Vibratory CompactorRoad Roller Double Drum Vibratory Compactor

WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
