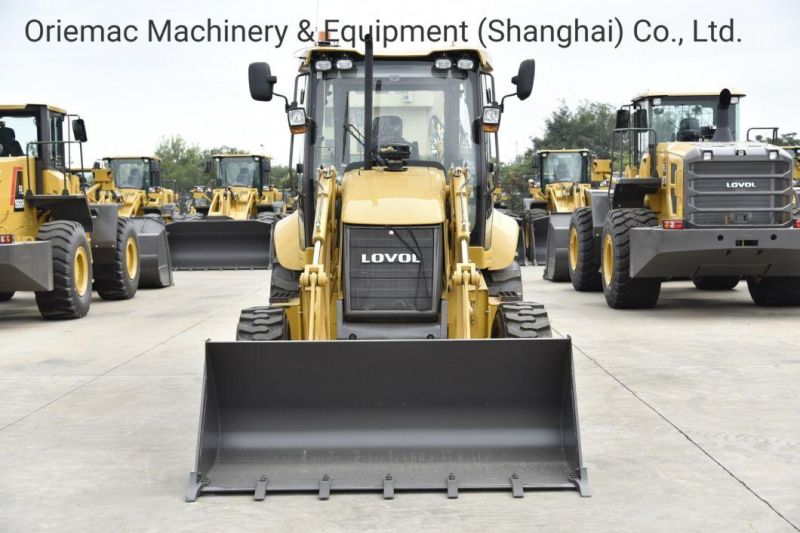

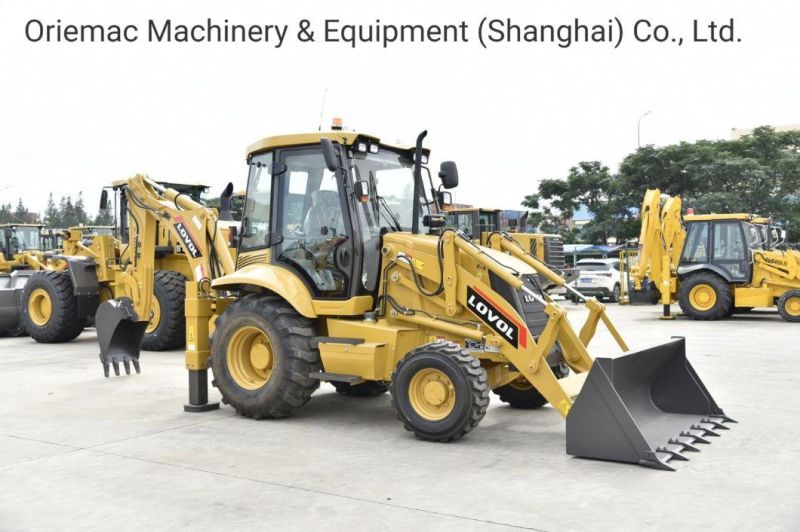

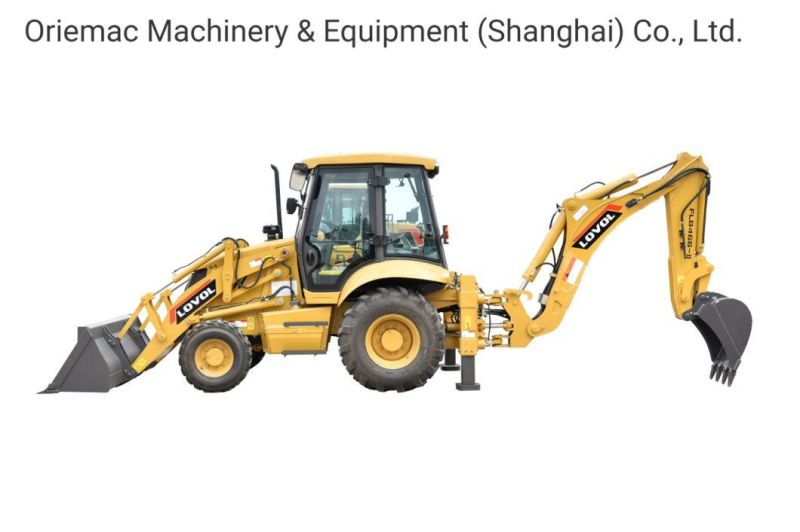

• Model NO.：FLB468-II
• Type：Medium-sized Loader
• Type of Thebackhoe Loader：Side Shift
• Maximum Traction：74kn
• Rated Bucket Capacity：1m3
• Maximum Digging Force：41
• Maximum Discharge Height：2660mm
• Maximum Dumping Reach：780mm
• Rated Bucket Capacity(Digging)：0.18m3
• Maximum Digging Depth：4345mm
• Maximum Unloading Height：3545mm
• Transport Package：Nude
• Specification：5900*2320*3500mm
• Trademark：CHINA
• Origin：Shandong
• Production Capacity：100unit,Month

Type of theBackhoe LoaderSide shiftTransport Dimension(L*W*H) Transport dimensions(mm)5900*2320*3500Operating WeightFour-Drive8460maximum traction kN74SpeedForward 1/2/3/45.8/10.0/20.1/36Backword 1/2/3/45.6/10.0/20.1/36Minimum Turning RadiusOutside of the Front Wheel3950Loading SpecificationsRated Bucket Capacity1Maximum Digging Force41Maximum Discharge Height2660Maximum Dumping Reach780Total cycle time≤8.8Digging SpecificationsRated Bucket Capacity0.18Maximum Digging Force53.3Maximum Digging Depth4345Maximum Digging Distance5385Maximum Unloading Height3545EngineModelLovol engine 1004C-P4TType4 cylinder inline,direct injection,water cooledPower kW/rpm69/2200(70/2200)Maximum Torque(N·m/r/min≥370/1400-1600(392/1400)Bore * stroke100*127Displacement3.99Fuel Consumption220Speed Changing BoxModelCARARODrive AxleFront AxleCARARORare AxleCARROBraking SystemFuel Tank CapacityOil Tank Capacity130TyreFront Tyre14-17.5-14PRRare Tyre19.5L-24-12PRTyreModel of the Front Axle Tyre14-17.5-14PR/11L-16-12PR(2-driving)Model of the Rare Axle19.5L-24-12PR
