• Model NO.：DH13-C2
• Engine Power：116kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Ground Pressure (Kpa)：45.3
• Engine Model：Qsb6.7
• Rated Power/Rated Speed (Kw/Rpm)：116,2000
• Forward Speed (Km/H)：0-10km,H(6.2mph)
• Reversing Speed (Km/H)：0-10km,H(6.2mph)
• Center Distance of Track (mm)：1780
• Width of Track Shoes (mm)：560
• Ground Length(mm)：2640
• Fuel Tank (L)：275
• Blade Type：Angle Blade
• Digging Depth (mm)：460
• Ripper Type：Three-Tooth Ripper
• Ripping Depth (mm)：500
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：4924*3060*2988mm
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. DH13-C2 Engine Power 116kw Certification CE, ISO9001: 2000 Condition New Color Yellow Ground Pressure (Kpa) 45.3 Engine Model Qsb6.7 Rated Power/Rated Speed (Kw/Rpm) 116/2000 Forward Speed (Km/H) 0-10km/H(6.2mph) Reversing Speed (Km/H) 0-10km/H(6.2mph) Center Distance of Track (mm) 1780 Width of Track Shoes (mm) 560 Ground Length(mm) 2640 Fuel Tank (L) 275 Blade Type Angle Blade Digging Depth (mm) 460 Ripper Type Three-Tooth Ripper Ripping Depth (mm) 500 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 4924*3060*2988mm Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

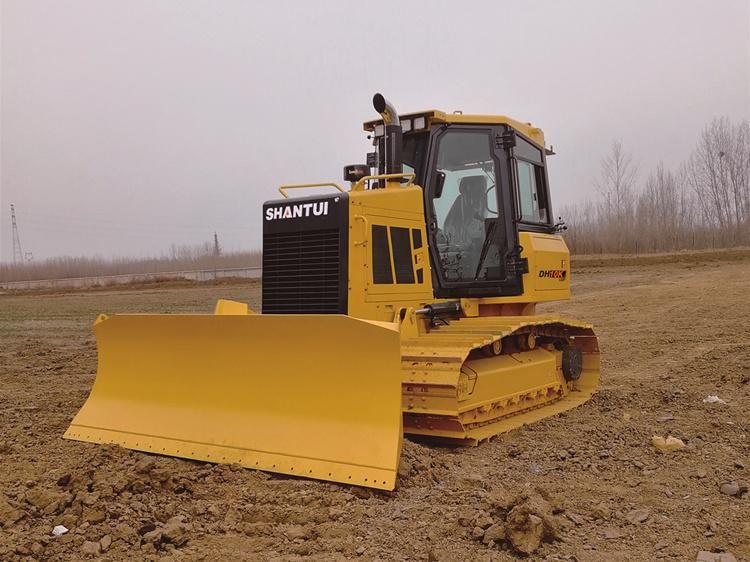

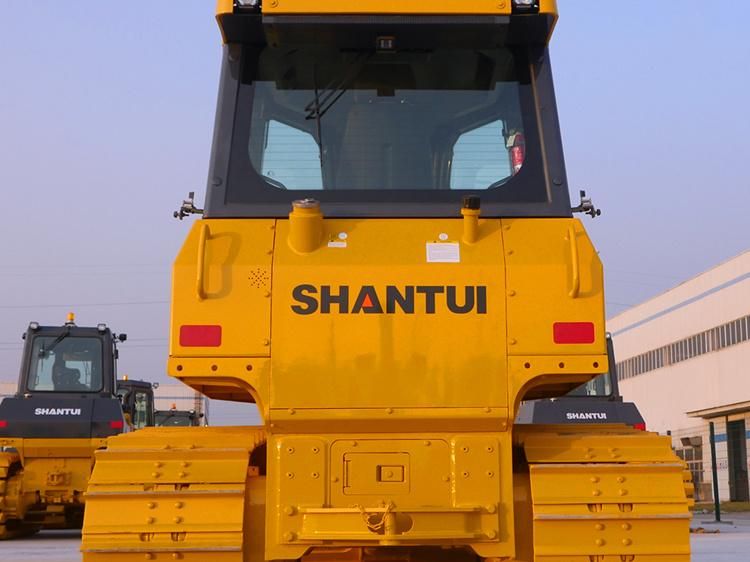

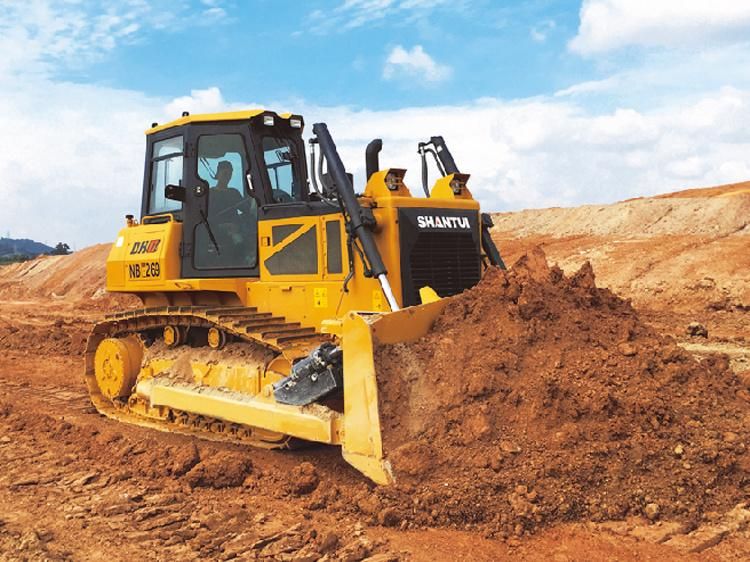

2021 New Shantui 13400kg/14000kg Bulldozer DH13-C2 With Good Quality

 Power System

The installed electronic control engine meets the EU Stage IIIA emission regulation and features strong power, high energy-saving and environmental-friendliness, high parts universality, and low maintenance costs.

The Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving, with the working efficiency at >68% and the composite fuel consumption reduced by 10%~15% compared with others machines of same horsepower range.

Control system

The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.

Driving/Riding Environment

The integral sealed cab with 4-point shock-absorbing mechanism features low noise (80dB), large space, and good vision.

The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.

The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

The A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, radio, and fire extinguisher can be installed to provide more abundant personalized driving/riding experience.

The integrated large color LCD display and control terminal integrates the instruments to ensure easy and simple understanding and the multiple languages are provided for you to understand the system status at any time, featuring high intelligence and convenience.

The safety passageway system and the reasonably arranged safety handrails and anti-skid footplates for whole vehicle guarantee the driver's safety.

Working adaptability

The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the environmental sanitation blade, ripper, and winch can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Operating performance

With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.

The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.

Easy maintenances

The structural parts inherit the excellent quality of Shantui's mature products.

The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.


PARAMETER

Parameter name	DH13-C2 XL (Extended version)	DH13-C2 LGP(Super-wetland version)
Performance parameters
Operating weight (Kg)	13400kg/29542lb (With traction frame)	14000kg/30864lb (With traction frame)
Ground pressure (kPa)	45.3	34.9/37.9
Engine
Engine model	QSB6.7	QSB6.7
Rated power/rated speed (kW/rpm)	116/2000	116/2000
Overall dimensions
Overall dimensions of machine (mm)	4924*3060*2988	4924*3380*2988
Driving performance
Forward speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Reversing speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Chassis System
Center distance of track (mm)	1780	2000
Width of track shoes (mm)	560	760/700 (Swamp type track shoe)
Ground length(mm)	2640	2640
Tank capacity
Fuel tank (L)	275	275
Working device
Blade type	Angle Blade	Angle Blade
Digging depth (mm)	460	460
Ripper type	Three-tooth ripper	Three-tooth ripper
Ripping depth (mm)	500	500
