• Model NO.：SVH30
• Travel Speed：35cm,s
• Centrifugal Force：15KN
• Certification：EPA, CE, ISO 9001:2000
• Condition：New
• Engine：Diesel Changchai 170f,Honda Gx160
• Drum Width：600mm
• Drum Diameter：426mm
• Start up：Electric Start
• Fuel Tank Capacity：3.6L
• Water Tank Capacity：22L
• Hydraulic Oil Tank：15L
• Walking Speed：0-3.8 Km,H
• Frequency：70 Hz
• Transport Package：Wooden Package
• Specification：1130*850*1240mm
• Origin：China
• HS Code：8429401900
• Production Capacity：5000 Set,Year

SVH30 ROAD ROLLER is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. This is the latest model of light duty rollers in the domestic.

Product characteristics

Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.

2. Double Poclain plunger motors drive the machine walking.

3. Imported brand motor drives the steel drum vibrating.

4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.

5. Double control levers with vibration button, makes the compaction of edge easy.

6. Electrically controlled water-spray, high efficient and water-saving.

7. Wear-resistant scraper can be lift and fixed during transportation.

8. LED lamp at front and rear for the convenience of night construction.

Application:
Ideal for footpaths and repair work as well as finishing work in road construction. Compact tandem rollers have also acquired an excellent reputation in gardening and landscaping. New construction and repair work for medium to small building projects. The new series of tandem rollers < 5t offers best visibility and highest driving comfort. For compaction work with side restrictions (e.g. house walls) the rollers are also ailable with open-sided drums .

SVH30 Road Roller Specification:

ITEM NO/DETAILS
 SVH30SVH30Engine
 Honda GX160CHANGCHAI/CHANGFA CF170Engine typeSingle cylinder, OHV, air-cooled, four-stroke, gasolineSingle cylinder, vertical, air-cooled, four-stroke, dieselOutput power (KW)
 4.13.1Rating speed(RPM)
 3600Lubricating oil volume(L)0.60.75Electrical equipment(V)12Walking speed (KM/H)0--3.8Theoretical climbing ability(%)30Vibration wheel
 FrontDrive form
 Two way hydraulic, chain drive Vibration frequency (HZ)70Vibration amplitude (MM)0.6Exciting force(KN)
 15Water spray form
 Gravity sprayHydraulic oil capacity(L)1510Fuel capacity(L)
 5.92.7Water tank capacity (L)22Working width(MM)
 780Overall length(MM)
 1600Machine height(MM)
 1060Drum size
 600*426mm*1Drum thickness(MM)12Weight(KG)
 330Static load(N/CM)
 45

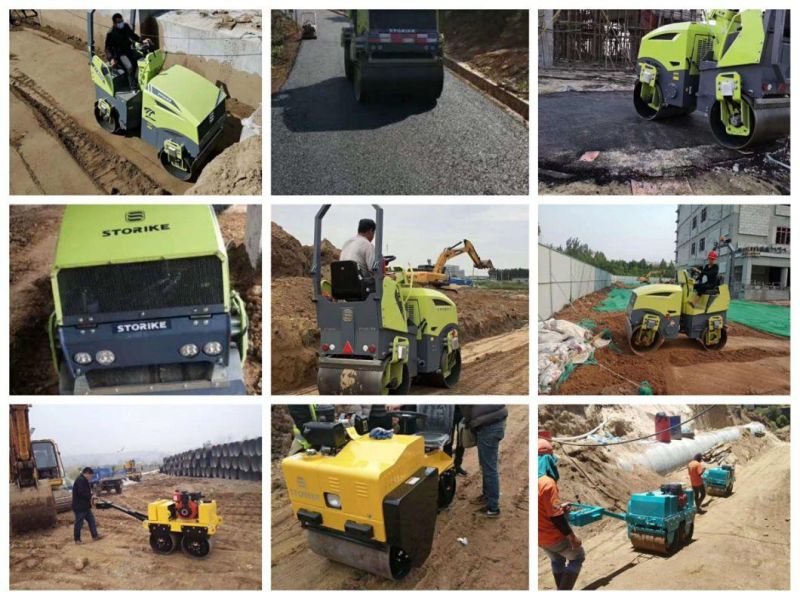

Feedback from clients:

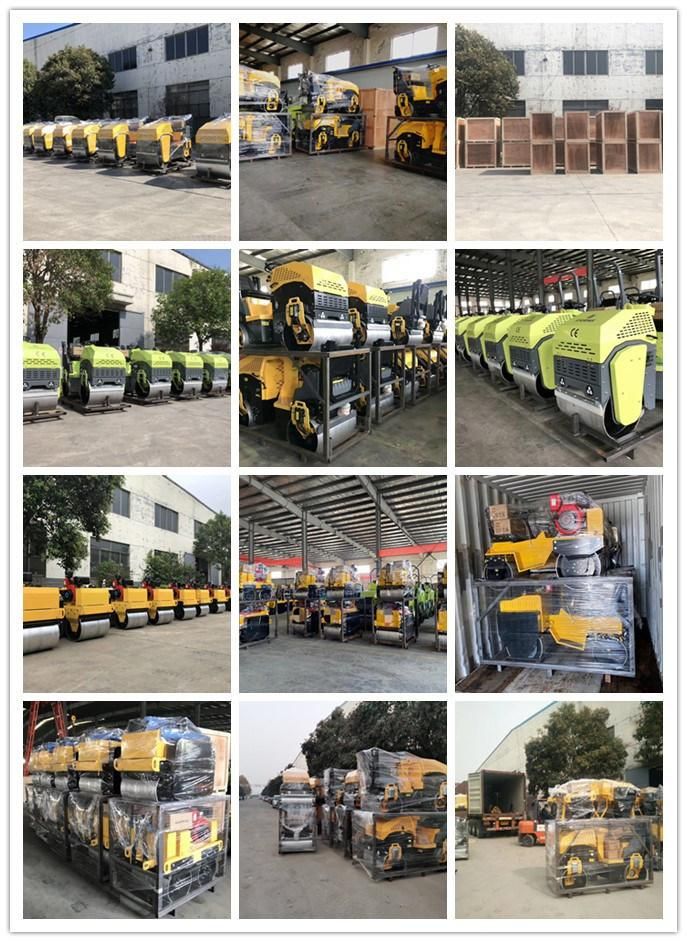

Packaging & Shipping


Company Information:

Shandong Storike Engineering  Machinery Co., Ltd is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough and so on. Our equipment is favored by many construction companies and have a large market in China. More and more trading companies purchase equipment from our plants, so we decide to enter world market with more favorable price to shape our product brand and provide the best after-sale service. If you are interested in our machine, contact us!
