• Model NO.：SWWD410X
• Condition：New
• Color：Yellow
• Blade Capacity：7.9m3
• Max. Drawbar Pull：410kn
• Max. Travel Speed：30.1km,H
• Operating Weight：50 Ton
• Engine Make：Cummins
• Rated Power：530 HP
• Brand：Sinoway
• Model：Swwd410X
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：50 PCS , Year

Basic Info.

Model NO. SWWD410X Condition New Color Yellow Blade Capacity 7.9m3 Max. Drawbar Pull 410kn Max. Travel Speed 30.1km/H Operating Weight 50 Ton Engine Make Cummins Rated Power 530 HP Brand Sinoway Model Swwd410X Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 50 PCS / Year

Product Description

Product Description

Engine
Original Cummins engine, with big torque.

Transmission
The use of superior performance and reliable Dana  torque converter, the torque coefficient 1.83; Dana  fixed-shaft power transmission, all four gears forward and back.

Superior electro-hydraulic control system
By using the operating force small fingertip controls, improved hydraulic efficiency, increased operator comfort.
a. load sensing hydraulic steering system

This steering system in accordance with the steering on request, assign priority to the steering flow passage, the remaining part of the total supply passage using work equipment. Thereby eliminating the power loss due to the oil supply caused by excessive steering, improved system efficiency, and smooth steering.
b. humane blade control

Single lever-type lifting / lowering, after forward / backward, / roll fingertip control device sends electrical signals to the main hydraulic valve outside the cab. This approach eliminates the noise, heat and control the force generated by the use of the cab hydraulic valve systems. For ease of operation, the forward / roll switch moved to the joystick, so that the operator does not need to be removed, hold the handlebars can be adjusted forward and roll hand.

High-strength impact resistant frame
The use of advanced welding technology, while several parts with the use of castings, helps distributed loads, reducing the number of parts, thereby increasing strength. This process provides highly consistent welds, while achieving a deep plate penetration and excellent plate fusion properties. The advantage is to increase the durability and fatigue strength. The computer controlled machining technology ensures pin hole, axle pad, cab mount and precise positioning transmission / engine components.

The operation of the human experience, comfortable operating environment
Cab is sealed and pressurized cab interior. It is sealed and pressurized with overturned, FOPS cab. Capacity, innovative design, increased operator comfort, handling ability and productivity. Its characteristics are superior field of view, the cab ventilation system, coat hook, cup holder, storage boxes, radio, cigarette lighter, ashtray and intermittent wet-arm wipers. Equipped with an electronic monitoring system, and has a three-level alarm. The new dashboard displays fuel level, hydraulic system oil, Hydraulic system of oil temperature, coolant temperature, engine speed and other parameters.

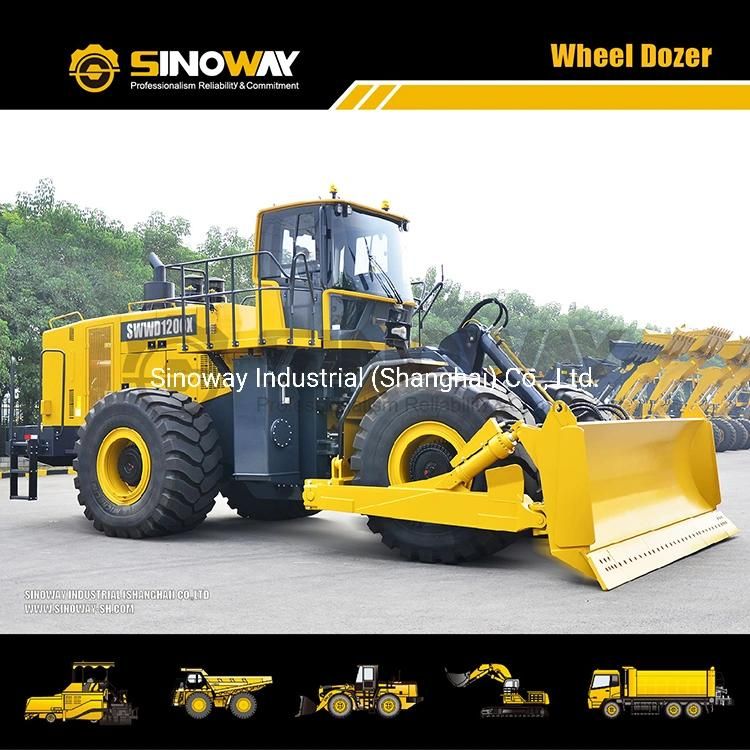

Product Show

Specifications

Engine model	Cummins QSK19
Rated power	391KW
Gear box	DANA
Drive axle	KESSLER
Tyre size	35/65 R33
SU push shovel capacity	7.9m³
Max.Drawbar pull	410kN
Max. Steering angle	40°
Max. Lifting capacity	1290mm
Max. Digging depth	535mm
Push shovel tilt	1325mm
Travel speed
Gear I(Forward/Reverse)	5.8km/h
Gear II(Forward/Reverse)	10.3km/h
Gear III(Forward/Reverse)	17.6km/h
Gear IV(Forward/Reverse)	30.1km/h
Total length	9799±2mm
Total height(top of the cab)	4313mm
Shovel width	5074±2mm
Wheel base	4500mm
Operation weight	50000±500kg
