Engineering & Construction Machinery

Easy Operation Wheeled Dozer 30 Ton Bulldozer in Stock

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type:Special Type
  • Transmission:Power Transmission
  • Walking Mode:Wheeled
  • Load and Unload Method:Front Discharge
  • Engine Power:147~515kw
  • Certification:ISO9001: 2000, ISO14001

Base Info

  • Model NO.:SWWD340X
  • Condition:New
  • Color:Yellow
  • Blade Type:Straight
  • Blade Width:4436 mm
  • Blade Height:1235 mm
  • Tire Size:29.5r25
  • Brand:Sinoway
  • Model:Swwd340X
  • Transport Package:Nude
  • Specification:operating weight 30.3 ton
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:84314990
  • Production Capacity:100 PCS Per Year


Basic Info.

Model NO. SWWD340X Condition New Color Yellow Blade Type Straight Blade Width 4436 mm Blade Height 1235 mm Tire Size 29.5r25 Brand Sinoway Model Swwd340X Transport Package Nude Specification operating weight 30.3 ton Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 100 PCS Per Year

Product Description

Product Description

1. This machine adopts Cummins supercharged diesel engine which has a high reliability, well dynamic property, large power reservation, low fuel consumption, and electric extinction. It adopts a new type compound pre-filter to reduce early abrasion of the diesel engine.

2. The transmission parts adopt our company's bulldozer torque converter, transmission, axle that of military industry technology, which has a large circulation circle diameter, large torque ratio, wide high efficiency field, large traction torque, stable quality, high liability and long useful life.

3. The hydraulic pipeline adopts German DIN standard "Tapered - O" double sealing which has a good sealing performance and strong anti-leakage performance.

4. It is equipped with "maintenance-free battery + water-tight plug connectors + multi-function switch" to facilitate high safety, convenient operation and reliable performance of the complete vehicle electric system.

5. It adopts sealed and noise reduction cab that with wide field of view and in accordance with human engineering as well as top grade shock absorbing seats. The luxury internal trimmings as well as air conditioner, heater, and stereo facilitate a safe and comfortable operating environment.
Product Show

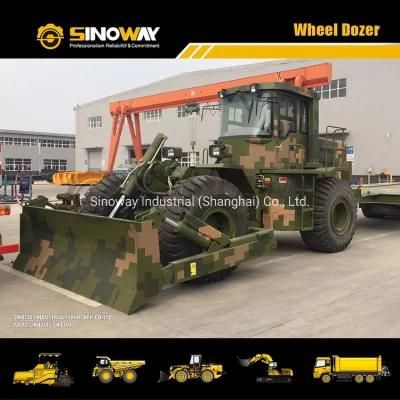

Easy Operation Wheeled Dozer 30 Ton Bulldozer in Stock
Engine modelCummins
Rated power250kw
Gear box / Dive axleGerman ZF
Tire size29.5R25
Blade capacity6.88m³
Blade width4436mm
Blade height1235mm
Max. drawbar force270kN
Max. steering angle40°
Max. digging depth530mm
Max. lifting above ground996mm
Max. tilt1075mm
Travel speed
1st F/R6.3km/h
2nd F/R11.5km/h
3rd F/R24km/h
4th F/R31.5km/h
Ground clearance423mm
Min. turning radius7404mm
Total length7952mm
Total height3805mm
Operating weight30300kg
