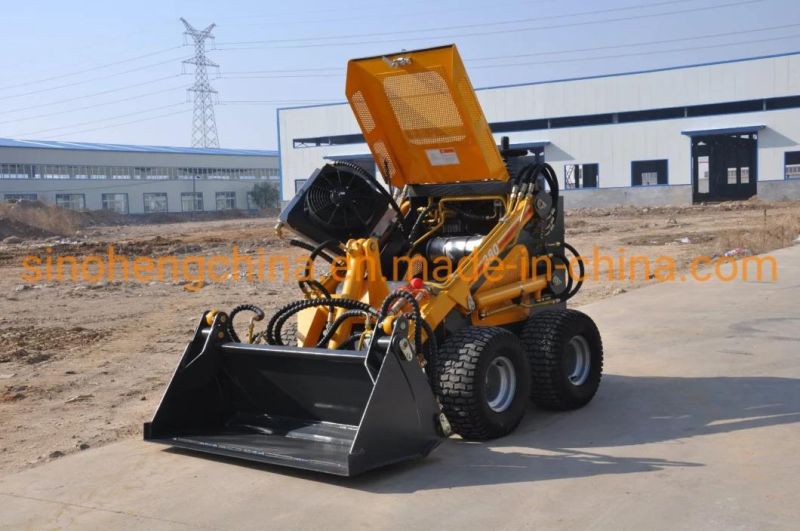

New Dingo Mini Skid Steer Loader with Good Price Hy280

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：CE
  • Condition：New
  • Rated Load：<1t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：HY280
  • Type：Skid Steer Loader
  • Operating Load：165kg
  • Load and Unload Method：Front Discharge
  • Transport Package：Nude,Container
  • Specification：2210*800*1309mm
  • Trademark：SINOHENG
  • Origin：China
  • Production Capacity：1000 Units,Month

Description


ItemHY280With rubber TrackMetricU.SMax working height(H3)2065mm81.3inchMax pin height(H2)1803mm71inchMax dumping height(H1)1386mm54.6inchMax Dumping distance(E)471mm18.5inchMax Dumping Angel(α3)32º32ºRollback of bucket on ground(α2)33º33ºDeparture angel(α1)18º18ºTotal height(H)1309mm51.5inchGround clearance(F)123mm4.8inchWheel base(L1)690mm27.2inchOverall length without bucket(L3)1778mm70inchTotal width(B2)800mm31.5inchBucket width(B1)820mm32.3inchTotal length with bucket(L)2210mm87inchTurn radius forward turning(R)1237mm48.7inchEngine Rated Power(KW)17.1KW(23HP)Rotating speed(rpm)3600Noise(Db)≤95Hydraulic System Pressure(Mpa)17Working Time(s) Raise4.27Dump1.34Lower3.31Operating Load165Kg363.8LbBucket Capacity0.15m³5.33ft³Max Lifting Force375Kg827LbTravel Speed0-5.5Km/h0-3.4mile/hOperating Weight855KG1884LbNew Dingo Mini Skid Steer Loader with Good Price Hy280New Dingo Mini Skid Steer Loader with Good Price Hy280New Dingo Mini Skid Steer Loader with Good Price Hy280New Dingo Mini Skid Steer Loader with Good Price Hy280
