• Model NO.：DGY24
• Production Capacity：1000 Units,Month

Item
Parameter
Model
DGY24
Overall weight
38.3MT
Standard bucket capacity
0.5m
Rated power of engine
198KW
Rated rotation speed
2000rpm
Hydraulic system pressure
34.3MPa
Flow rate
2*226L/min.
Slewing speed
11.7rpm
Max. pulling force
174KN
Max. travel speed (H/L)
5.2/3.5Km/h
Grade-ability
70°
Bucket digging force
52.7KN
Average ground pressure
61KPa
Operating type
Hydraulic servo
Overall length
11903 mm
Overall width
3390 mm
Overall height (top of boom)
9340mm
Overall height (top of operator's cab)
3280mm
Counter weight ground clearance
1210mm
Min. ground clearance
598mm
Turning radius at swing table tail
4048mm
Crawler ground length
3700mm
Crawler length
4622mm
Crawler gauge
2590mm
Crawler width
3190mm
Crawler shoes thickness
800mm
Swing table width
2995mm
Max. digging height
13.4m
Max. dumping clearance
11300mm
Max. digging depth
6080mm
Max. vertical digging depth
5400mm
Max. digging radius
5800mm
Max. height when Min. slewing radius
9523mm
Most suitable OD of pipe for hoisting
1016mm
Max. length of pipe for hoisting
12m
Max. rated lifting load
24MT
Boom length
12.2m
Counter weight height
12000mm
Crawler ground length (during transportation)
4622mm
Qty. of steel wire rope for hoisting
6
Diameter of steel wire rope for hoisting
14mm
Max. lifting height

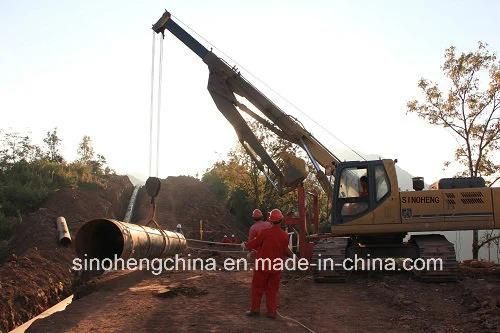

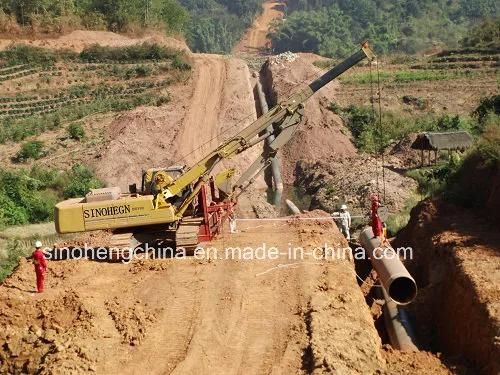

11.8mPipelayer Crane Machine Construction Cases :
