• Model NO.：SWL50G
• Type：Medium-sized Loader
• Product Name：Payloader
• Brand：Sinoway
• Bucket Capacity：3.0 M3
• Engine Power：147~515kw
• Load and Unload Method：Front Discharge
• Color：Yellow
• Usage：Universal Type
• Warranty：One Year
• Transport Package：Naked in Container, Disassembled
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314900
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SWL50G Type Medium-sized Loader Product Name Payloader Brand Sinoway Bucket Capacity 3.0 M3 Engine Power 147~515kw Load and Unload Method Front Discharge Color Yellow Usage Universal Type Warranty One Year Transport Package Naked in Container, Disassembled Specification ISO Trademark SINOWAY Origin China HS Code 84314900 Production Capacity 500PCS/Month

Product Description

Main Advantage
Heavy duty powerful engine
At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed,
ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

The long life of capability of lifting
Our new buckets load heavy materials easier and faster; saving you time, lowering fuel consumption and reducing damage. In tests, our new buckets increase production by14% and lower fuel consumption by 15% per hour. In addition, damage to the bucket and teeth can be greatly reduced thanks to the stronger anti-wear blade.

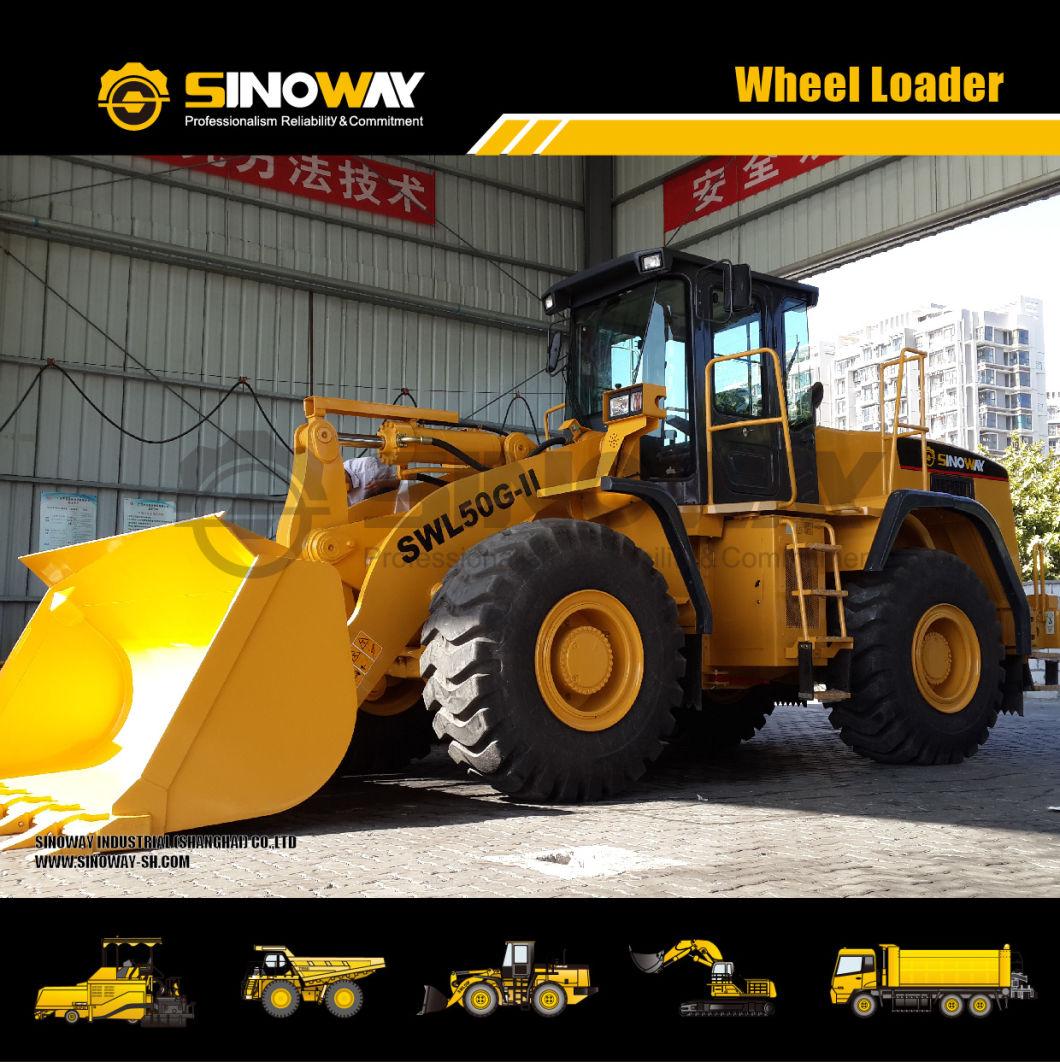

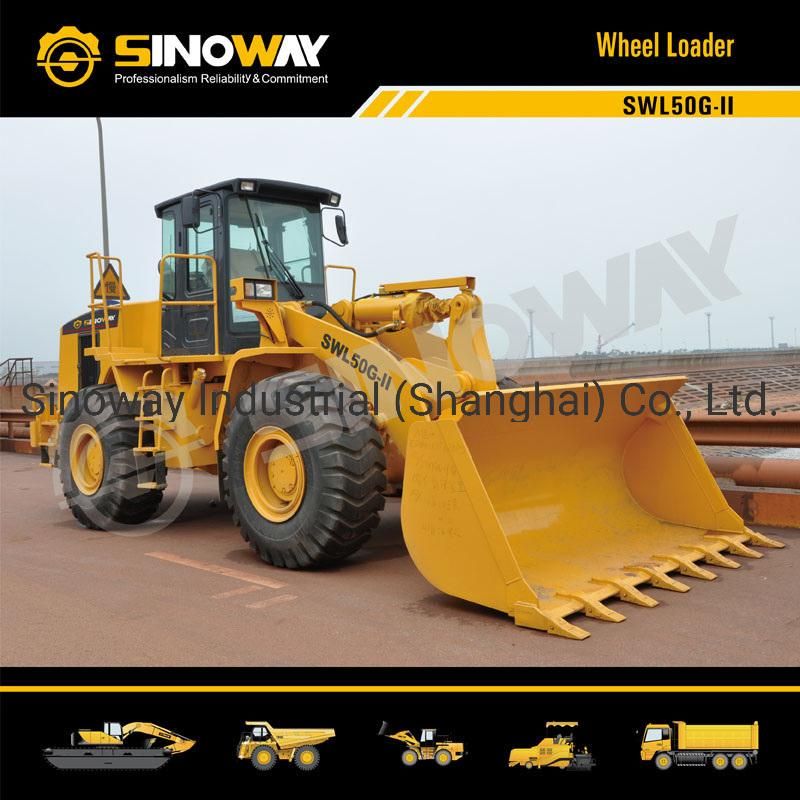

Machine Show


Specification

Engine
Emission regulation	Tier 2/Stage II
Make	Cummins
Gross power	164kw(220hp)@2200rpm
Net power	157kw(198hp)@2200rpm
Peak torque	950N.m@1400rpm
Displacement	8.9L
Number of cylinder	6
Aspiration	Turbo air-to-air after cooled
Main Technical Specification
Bucket capacity	3.0m³
Operationg weight	17100kg
Tipping load	13200kg
Full turn tipping load	11750kg
Bucket breakout force	158kN
Maximum Dump Angle at Full Height	45°
Dump Clearance at Full Height Discharge	3100mm
Dump Reach at Full Height Discharge	1035mm
Max.hinge pin height	4154mm
Max.digging depth,bucket level	61mm
Bucket rollback at ground level	45°
Bucket rollback at carry	50°
Bucket Rollback at Maximum Height	61°
Implement Hydraulic System
Main pump tyoe	Gear
Main relief pressure	20Mpa
Raise	6.0sec
Dump time	1.5sec
Float down time	3.0sec
Fastest total cycle time	10.5sec
Axles And Tyre
Differential front type	Limited slip standard
Differential rear type	Limited slip standard
Axle oscillation	±14°
Tire size	23.5-25
Braking System
Service brake type	Wet multi disc
Service brake actuation	Hydraulic
Parking brake type	Air over hydraulic
Parking brake actuation	Spring apply,hydraulic release
Steering System
Steering configuration	Articulated
Steering relief pressure	16 Mpa
Transmission System
Transmission type	Power shift
Transmission configuration	Counter shaft
Torque converter	Single stage,three element
Max.travel speed,fwd	37.0km/h
Max.travel speed,rev	23.0km/h
Number of speed,fwd	4
Number of speed,rev	3
Dimensions
Length wiht bucket down	8150mm
Width over tires	2750mm
Wheel base	3250mm
Wheel tread	2150mm
Ground clearance	431mm
Turn angle,either side	38°
Rear angle of departure	30°
Turning Radius, Outside of Tire	6232mm
Turning Radius, Center of Tire	5932mm
Turning Radius, Bucket Carry	6913mm
Service Capacities
Fuel tank	330L
Engine oil	30L
Cooling system	58L
Hydraulic tank	210L
Gear box and converter	45L
Driving axles (F/R)	34L
