• Model NO.：SWG165-II
• Operating Weight：15500kg
• Tire Size：17.5-25
• Blade Width：3690mm
• Warranty：One Year
• Color：Yellow
• Engine Power：165HP
• Transport Package：Nude
• Specification：ISO2008
• Trademark：SINOWAY
• Origin：China
• HS Code：84294090
• Production Capacity：200 Unit Per Year

Basic Info.

Model NO. SWG165-II Operating Weight 15500kg Tire Size 17.5-25 Blade Width 3690mm Warranty One Year Color Yellow Engine Power 165HP Transport Package Nude Specification ISO2008 Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 200 Unit Per Year

Product Description

Product Description

New Appearance Design.

♠ Articulated frame with front wheel steering, small turning radius and flexible maneuverability.

♠ Electro-hydraulic control power shift gearbox, 6 gears forward and 3 gears backward.

♠ Internationalized hydraulic fittings, reliable operation.

♠ The action of spade is controlled by full hydraulic pressure.

♠ The rear axle is a three-stage drive axle equipped with NO-SPIN self-locking differential.

♠ The control platform and seat can be adjusted, the control handle and instrument are arranged reasonably, the use is convenient, and the driving comfort is improved.

♠ The cab is luxurious and beautiful, with wide vision and good sealing.

♠ It can be equipped with front bulldozer, back looser, front looser rake and automatic leveling device.

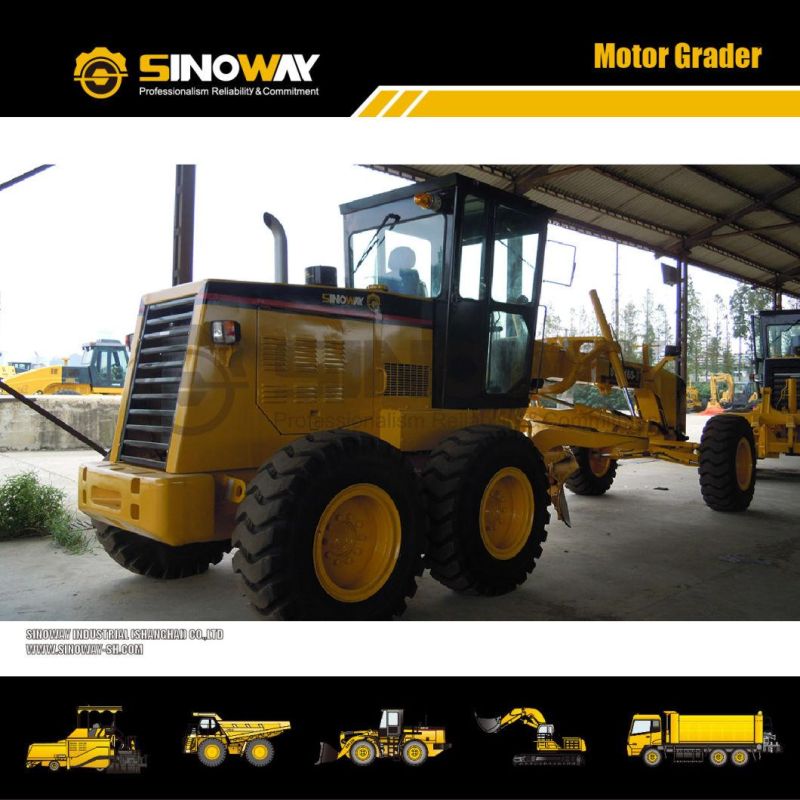

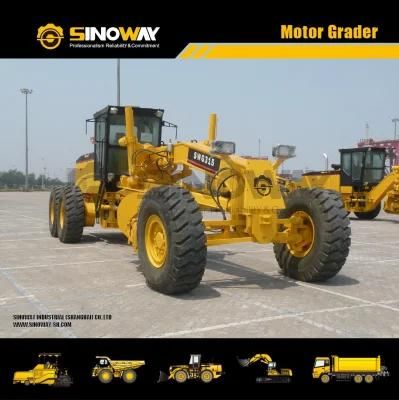

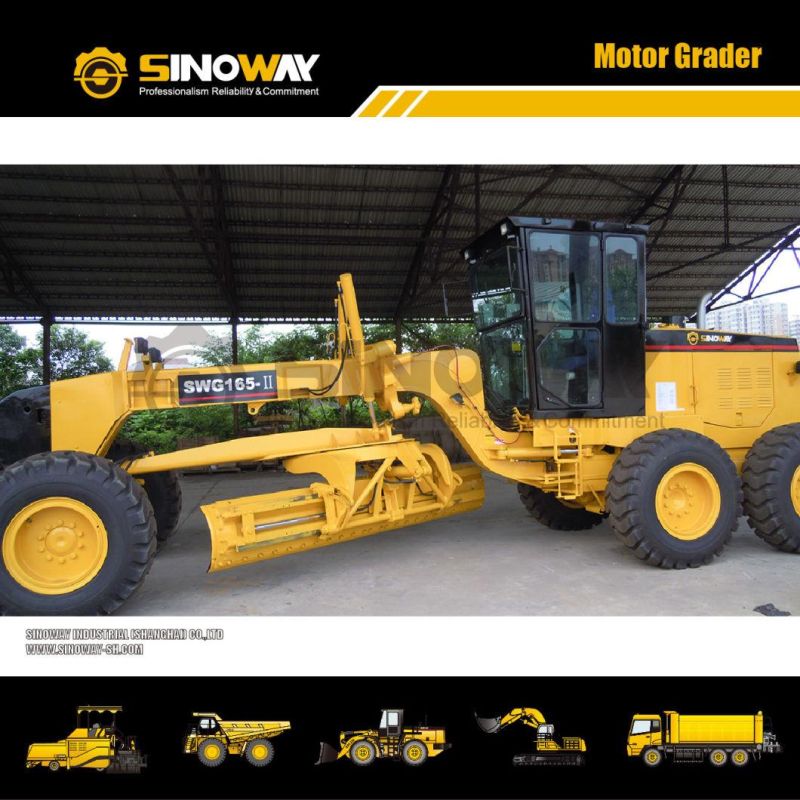

Product Show



Specifications

Engine
Model	Cummins 6BTA5.9
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	132KW
Rated speed	2100rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	2.52
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	6.5/6.5
Forward/Reverse II	11.4/14.6
Forward/Reverse III	14.6/30.0
Forward IV	24.8
Forward V	30
Forward VI	49.2
Steering System
Front wheel steering angle	49º(L/R)
Articulated steering angle	26º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	610mm
Front wheel lean	32º(L/R)
Oscillation	±15º
Drive axle	Imported No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	HUSCO
Control pressure	18MPa
Hydraulic oil cylinder	HYUNDAI
Max. tractive force	78.5KN
Ground penetration	535mm
Blade width	3660mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	14500kg
Braking System
Service brake	Hydraulic assist actuated on inner-expanding drum brake
Parking brake	Flexible shaft control actuated drum brake
Dimensions
Overall length	8630mm
Overall width(wheel outside)	2600mm
Overall height	3370mm
Wheel base	6100mm
Front tread	2120mm
Rear tread	2120mm
Tyre size	17.5-25
Service Capacities
Fuel tank	350L
Engine crank case	27L
Hydraulic tank	70L
Gear box	45L
Rear axle	18L
Balance box	42L(each)
Worm gear case	3L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
