• Model NO.：swd320y
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Straight
• Blade Capacity：7.3m3
• Track Width：560 mm
• Blade Height：1590mm
• Blade Width：4130mm
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. swd320y Condition New Color Yellow Engine Cummins Blade Type Straight Blade Capacity 7.3m3 Track Width 560 mm Blade Height 1590mm Blade Width 4130mm Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS/Month

Product Description

SWD320Y Bulldozer Advantages
 Optimal design in overall appearance and structure strength.
Powerful Cummins engine adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, and increased life. Blade is more durable and capacious. Alarming & monitoring system is efficient and reliable.  Centralized pressure checking easy for malfunction diagnosis.
Ergonomics design in controls to reduce operator's fatigue. Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.
Gear Box
This machine is equipped with transmission of planetary gear and rotary lockup multi-disc clutch hydraulically engaged and force lubricated. Forward 3 speeds and reverse 3 speeds can be gained by actuating hydraulic control valve.
Torque Converter
Hydraulic torque converter is a newly developed product with the improvement made to the material, process and layout based on introduced advanced international technology. It features simple archite cture, easy maintenance, low noise, excellent reliability.
Torque converter is of 3-element, 1-stage, 1-phase, centripetal turbine type with simple structure but good technology. It provides high power efficiency, great penetration, big capacity and less loss when the turbine idles.
The Final Driving
We master the technology in the manufacturing tip relief, crowned gear which features heavy load capacity, stable drive and long life.

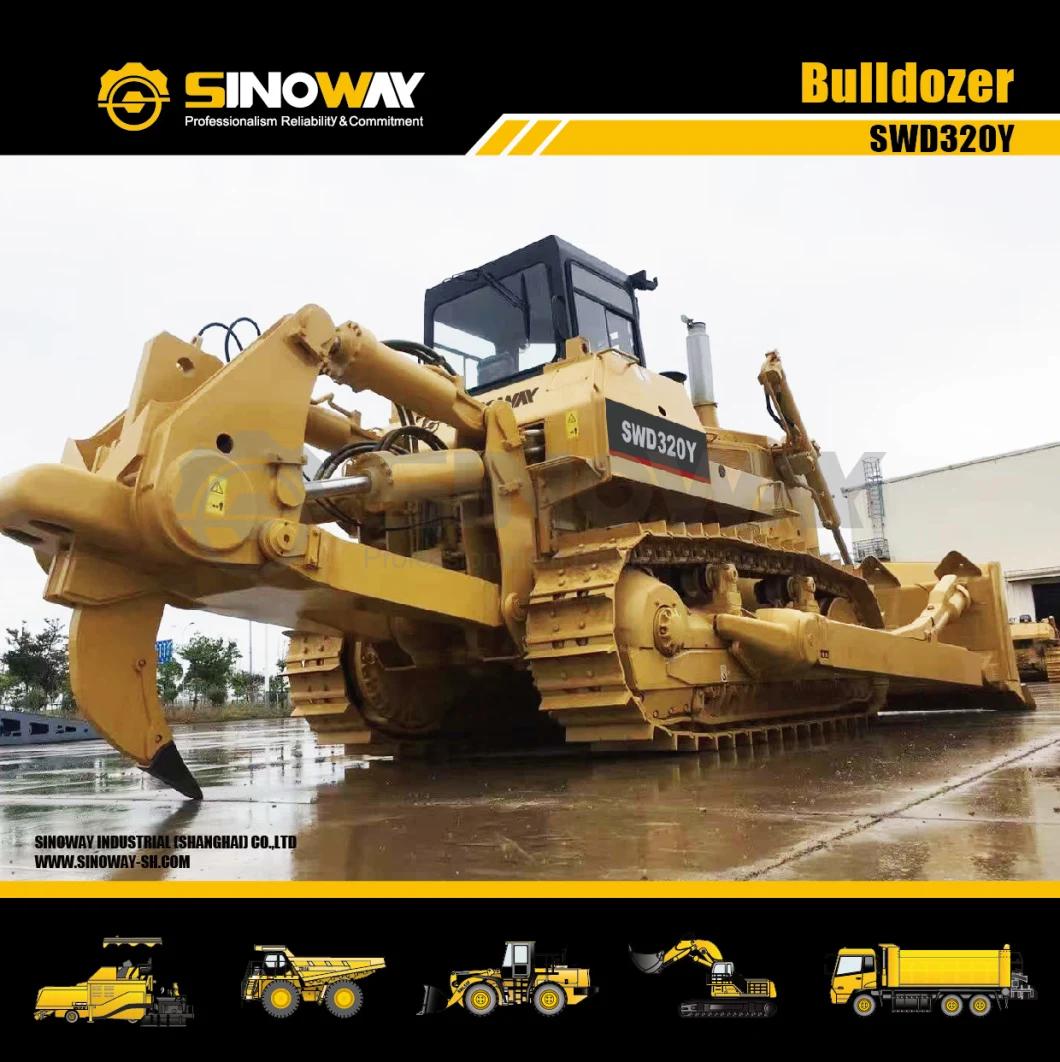

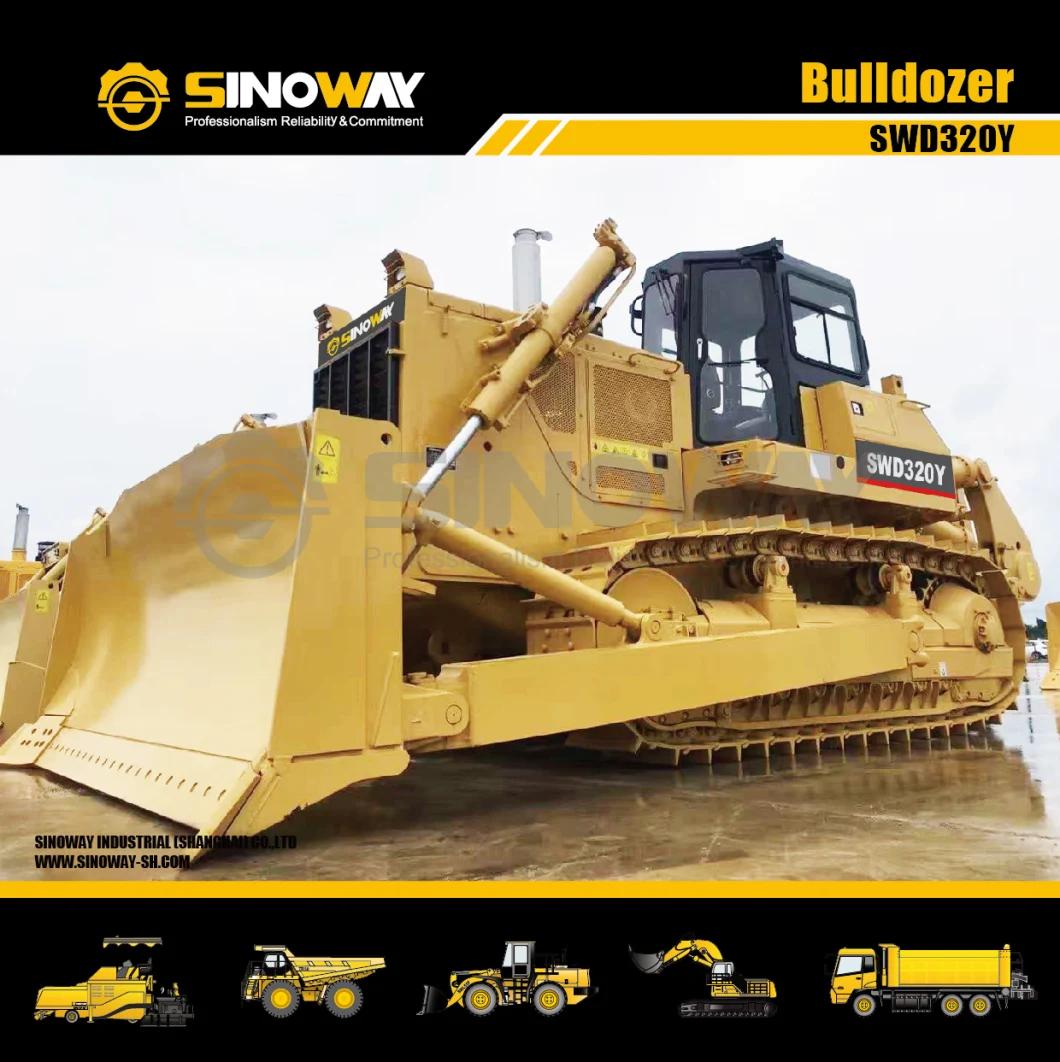

Product Show




Specifications


Engine
Model	Cummins NT855
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	2000rpm
Implement Hydraulic System
Hydraulic flow rate	335L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(5 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	228.6mm
Track width	560mm
Number of track shoes (each side)	41
Track length on ground	3150mm
Ground clearance	500mm
Main Technical Specification
Operating weight(without ripper)	35900Kg
Ground pressure(without ripper)	0.094MPa
Grade ability	58%

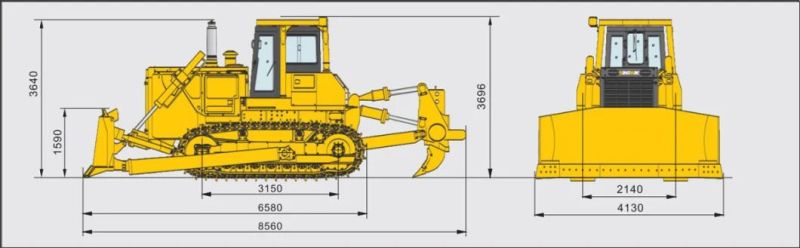

Overall dimensions (L×W×H,without ripper)	6880×4130×3640mm
Max. tractive force	281KN
Working Equipment
Blade type	Straight
Width	4130mm
Height	1590mm
Max. digging depth	560mm
Max. lift above ground	1560mm
Tilting angle	14°
Blade capacity	10m3
Transmission System
Gear box	Planetary gear,hydraulic actuated, forced lubrication
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.4
Forward/Reverse II	6.6/7.8
Forward/Reverse III	11.5/13.5
Service Capacities
Fuel tank	600L
Water tank	121L
Implement oil tank	164L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster
