• Model NO.：LT978
• Type：Large Loader
• Engine Model：Weichai
• Bucket Capacity：4-6m3
• Wheel Base：3600mm
• Operating Weight：25t
• Max.Dumping Height：3450mm
• Tyre Type：26.5r25
• Rated Power：199kw,2200rpm
• Overall Length：8600mm
• Scraper Type：Pull Scraper
• Transport Package：Fixed in Container or Nude Packing
• Specification：8600mm*3230mm*3800mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：800sets,Year

Basic Info.

Model NO. LT978 Type Large Loader Engine Model Weichai Bucket Capacity 4-6m3 Wheel Base 3600mm Operating Weight 25t Max.Dumping Height 3450mm Tyre Type 26.5r25 Rated Power 199kw/2200rpm Overall Length 8600mm Scraper Type Pull Scraper Transport Package Fixed in Container or Nude Packing Specification 8600mm*3230mm*3800mm Trademark LTMG Origin China HS Code 8429510000 Production Capacity 800sets/Year

Product Description

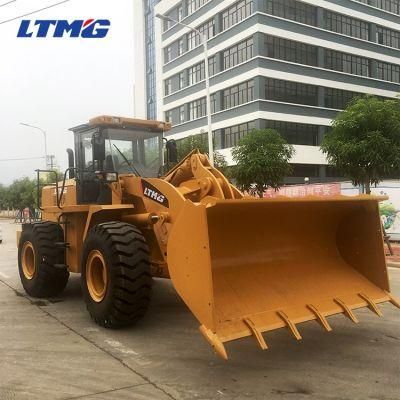

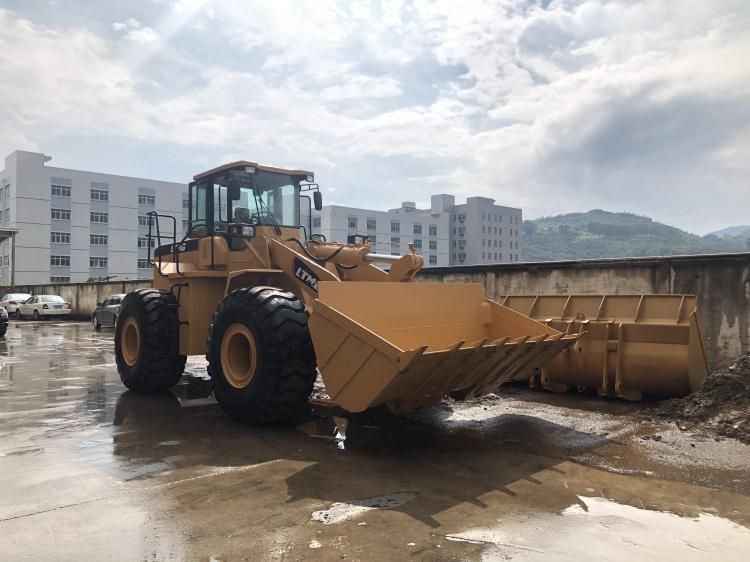

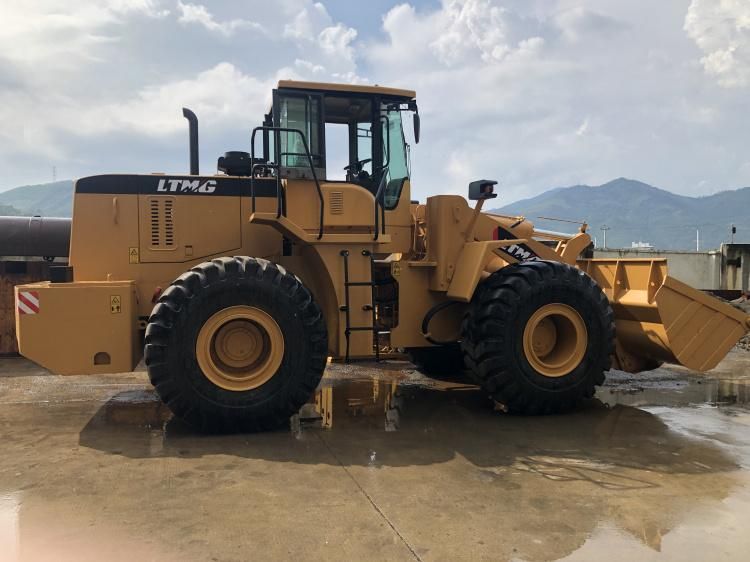

Construction Equipment 7t Hydraulic Wheel Loader with Customizied Design





The specification of 7 ton Wheel Loader

Model	LT978
Operating weight	25,000kg
Bucket Volume	4-6 m3
Engine	Weichai
Rated engine power	199KW
Rated rotate speed	2200r/nin
Max.torque	920N.m
Max.dumping height	3450mm
Rated load	7,000 KG
NO.of shifts	Forward 4 For Reverse2
Driving speed
Forward/Reverse I	0-7km/h
Forward/Reverse II	0-11km/h
Forward/Reverse III	0-23km/h
Forward/Reverse IV	0-38km/h
Grade ability	≥25°
Turning angle	35°
Overall length	8600mm
Overall width	3230mm
Overall height	3800mm
Wheel base	3600mm
Track base	2410mm
Transmission	Beilian
Cycling time	12s
Tire type	26.5R25

Product Features


1.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

2.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

3.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power,
reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

4.Optional attachment:

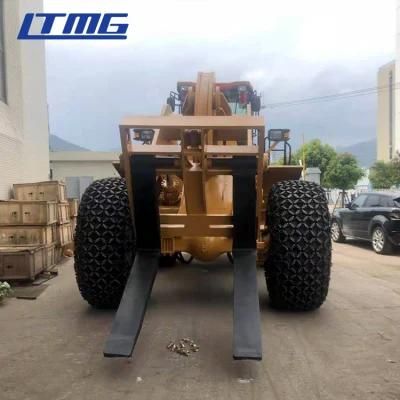

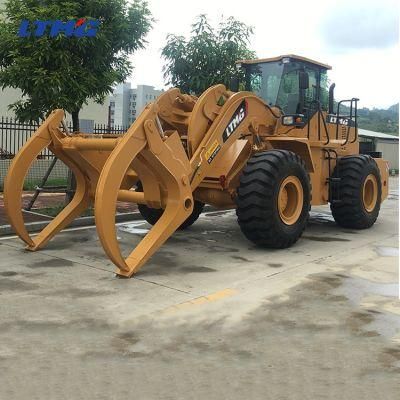

Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

5.High-performance engine is adopted for strong power, low fuel consumption,low construction and low noise.

6.Heavy-duty frame structure with strong and thick steel is designed to resist twisting forces,
torsional shock and stresses generated during the loading cycle while protecting drive line and hydraulic system components.








LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.
With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
