• Model NO.：KD3500
• Productivity：240m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Optional
• Name：Hot Sale Self Loading Loader , Hydraulic Mobile Co
• Engine：Cummins (Optional)
• Self Loading Concrete Mixer：Concrete Mixer Truck
• Drum：with Lift Drum
• Camare：with Front and Rear Review camera
• Hydraulich System：Famous Brand High Quality
• Walking system：High Quality
• Drum Swing：270 Degree
• Scale：with Weighing Scale Can Print Paper
• Tank Volume：4.5m3
• out Put Capacity：3.5m3 Per Batch
• Transport Package：Nude Packing
• Specification：4.0m3
• Trademark：kono deere
• Origin：China
• HS Code：8705400000
• Production Capacity：30sets ,Month

Transmission

Hydraulic

4 wheel driver,2 wheel steering

Tyre size

16/70-20

Engine

YUCHAI

Model

YUCHAI 4108

Diesel Water-cooled

85 KW

Speed Range

F1:1-8 KM/H

F2:8-25 KM/H

R1:1-8 KM/H

R2:8-15 KM/H

Gear on chassis

Power shift with CVT gearshift

Discharge

270°,discharging concrete

JOYMIX

One joystick control main functions

Weight

7200kg

Overall dimension(L*W*H)

7.5×2.3×3.2m

 1.Name:Swing drum

The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.

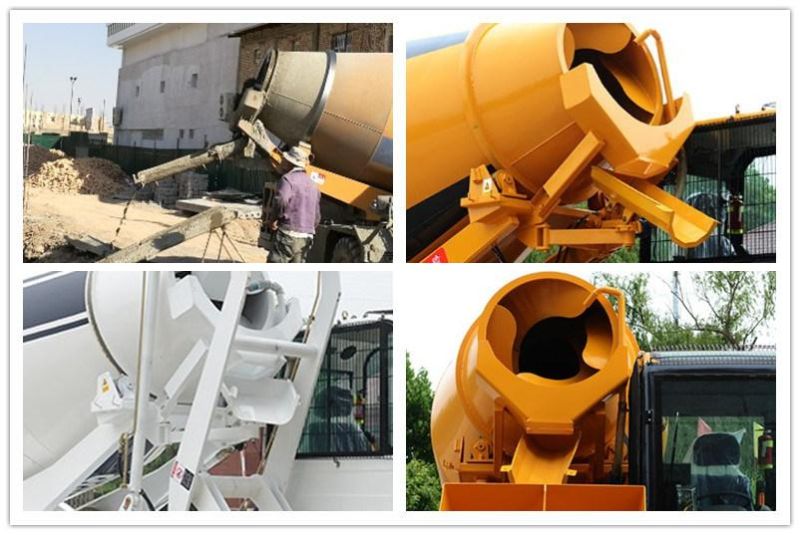

2.Detachable chute

Easy to dischange to different angles and transport

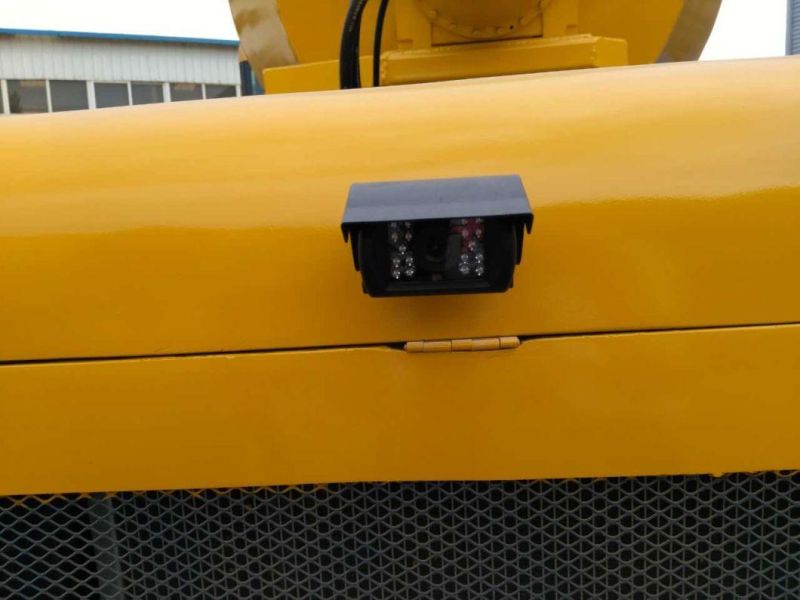

3.Rear view camera ,making the drive easy

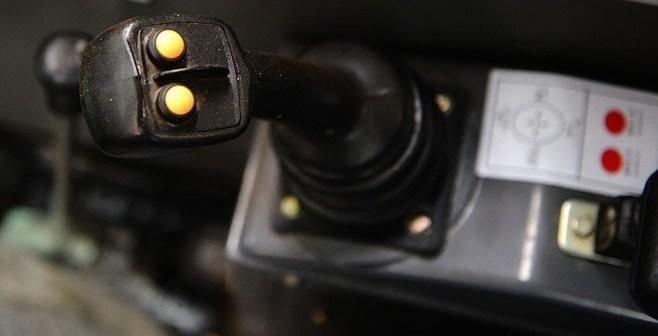

4.Joystick control , easy control

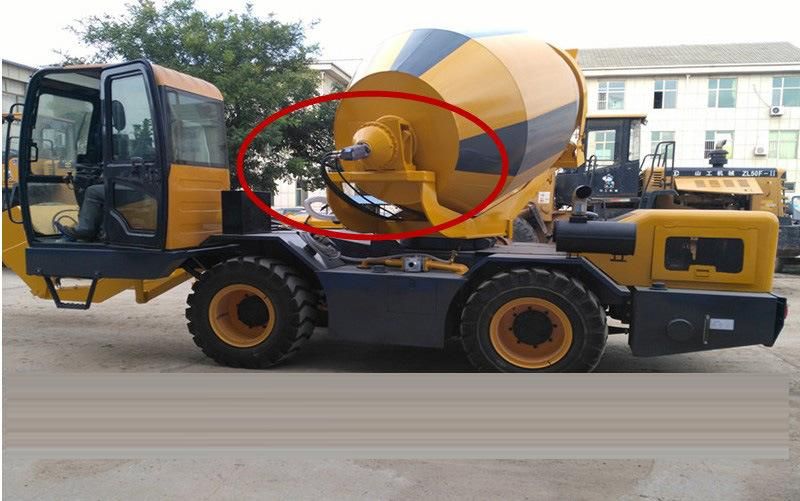

5.Bigger capacity rotary motor

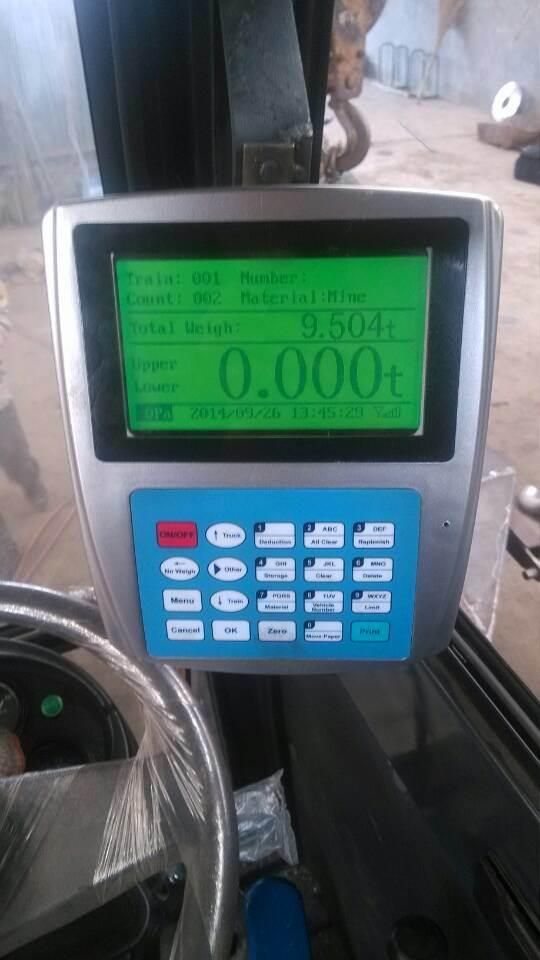

6.High precision weighing system
