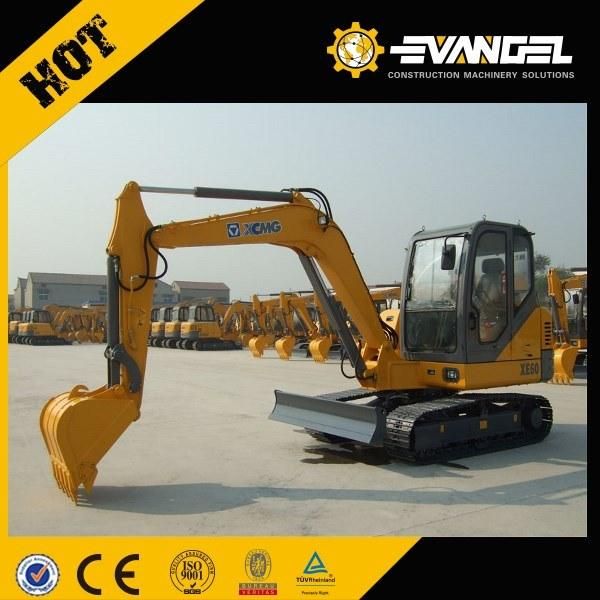

6t Excavator, Construction Machinery Xe60
Evangel Industrial (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
- Bucket Capacity：0.1~0.5m³
- Size：Medium-Sized
- Certification：ISO9001: 2000
Base Info
- Model NO.：XE60
- Condition：New
- Maximum Digging Height：5660mm
- Max Digging Radius：6130mm
- Transport Package：Nude Package
- Specification：CE, ISO, GHOST
- Trademark：EVANGEL
- Origin：China
- Production Capacity：15 Sets, Month
Description
Model
XE60
Bucket capacity
m3
0.23
Standard bucket width
mm
700
Operation weight
kg
5,920
Dimension(in transportation)
Overall length
mm
5,850
Overall width
mm
1,885
Overall height
mm
2,584
Min. clearance
mm
369
Engine
Model
4TNV94L
Total displacement
L
3.054
Rated output power
KW/rpm
39/2200
Digging performance
Max. digging height
mm
5,660
Max. dumping height
mm
3,970
Max. digging depth
mm
3,830
Max. vertical digging depth
mm
2,680
Max. digging radius
mm
6,130
Boom deflection angle
°
Min. slew radius
mm
2,450
Min. rear slew radius
mm
1,650
Bucket digging force
kn
42.5
Track type
Steel
Track width
mm
400
Travel System
Track length
mm
2,548
Wheel base
mm
1,985
Track gauge
mm
1,480
Travel speed (Gear I/II)
km/h
3.8/2.1
Gradeability
%
70
Slew speed
rpm
9
Bulldozing plate
Bulldozing plate width
mm
1,880
Bulldozing plate height
mm
363
Lifting distance
mm
402/456
Hydraulic pump type
Variable pump×1 +gear pump×1
Slew motor type
Piston hydraulic motor
Travel motor type
Piston hydraulic motor
Fuel tank capacity
L
120
Hydraulic oil tank capacity
L
85
