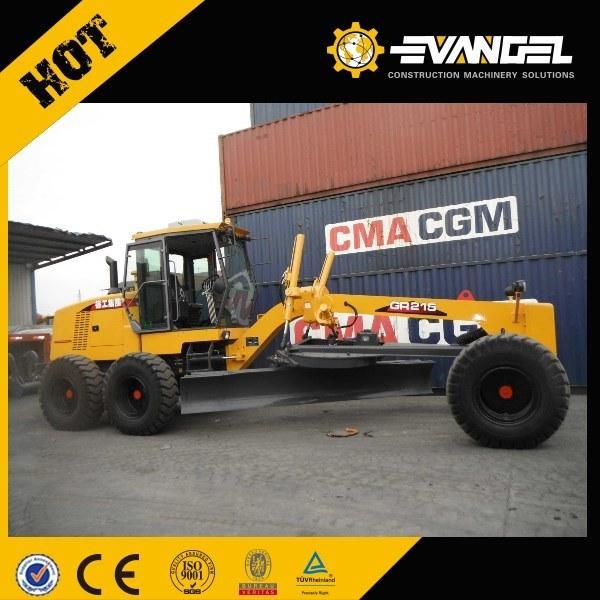

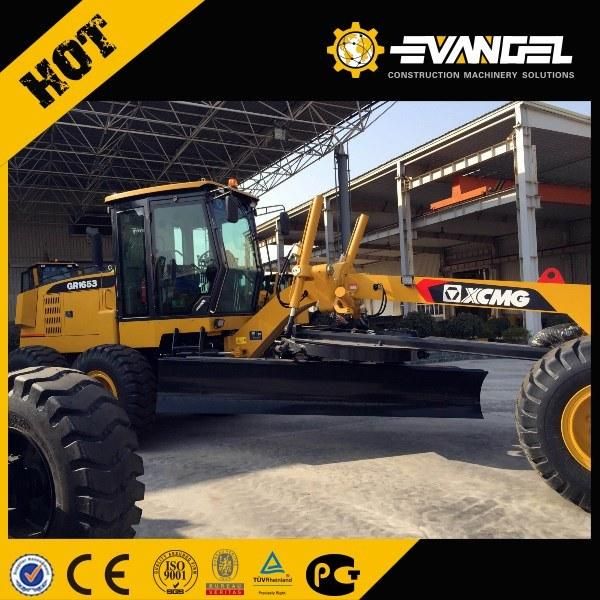

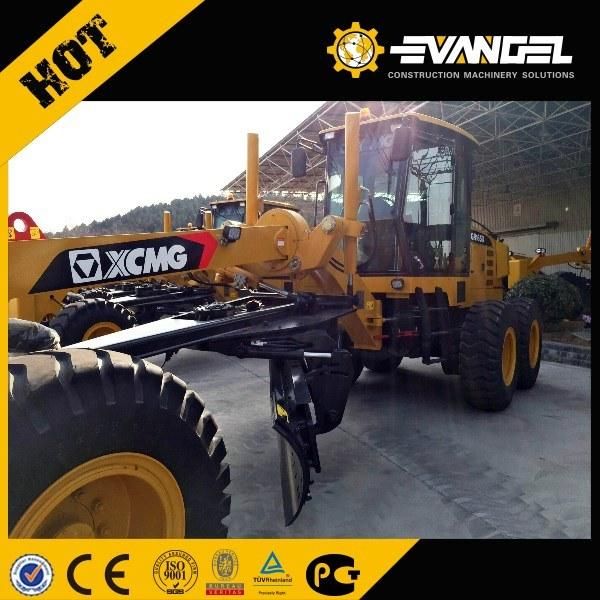

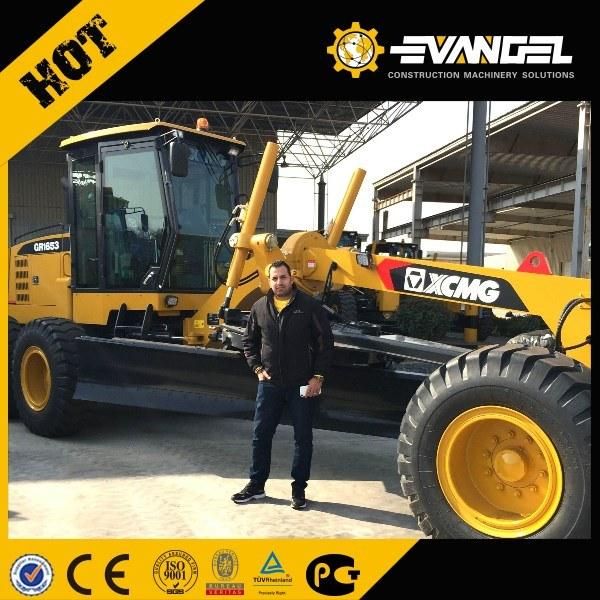

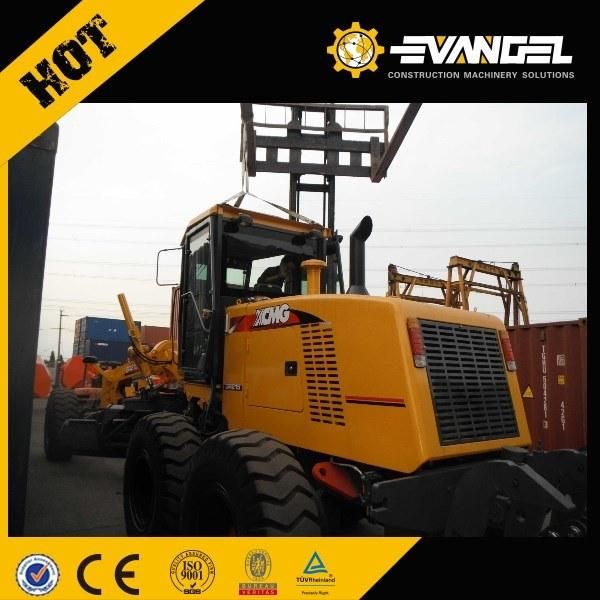

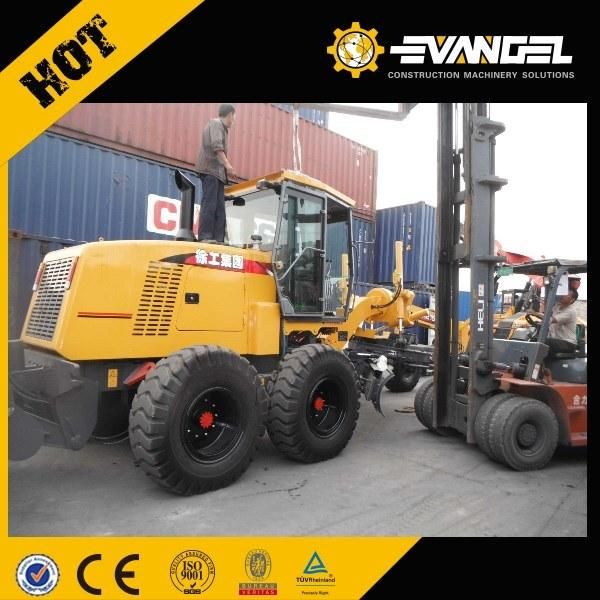

Road Leveling Equipment Motor Grader Gr200 15 Ton Grader for Sale Champion Motor Grader Parts

Evangel Industrial (Shanghai) Co., Ltd.
  • Type：Grader
  • Object：Asphalt Concrete Pavement
  • Moving Type：Mobile
  • Mixing Method：Continuous Drum
  • Automatic Grade：Automatic
  • Product Capacity：>400t,h

Base Info

  • Model NO.：GR200
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Operating Weight：15400kg
  • Theoretical Gradeability：30%
  • Engine：Shangchai
  • Transport Package：Standard Package for Shipment
  • Specification：ISO
  • Trademark：evangel
  • Origin：Jiangsu, China
  • Production Capacity：600 PCS,Month

Description

Engine modelShangchai SC8D200G2B1Rated power/speed147kW/2300rpmDimension(LxWxH)8932*2625*3470mmOperating weight(Standard)15400kgTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)87KNMax. gradeability30%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
