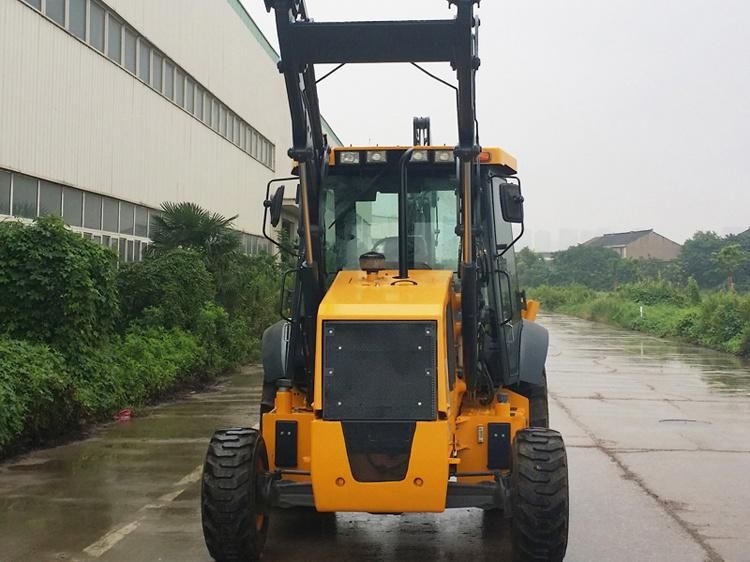

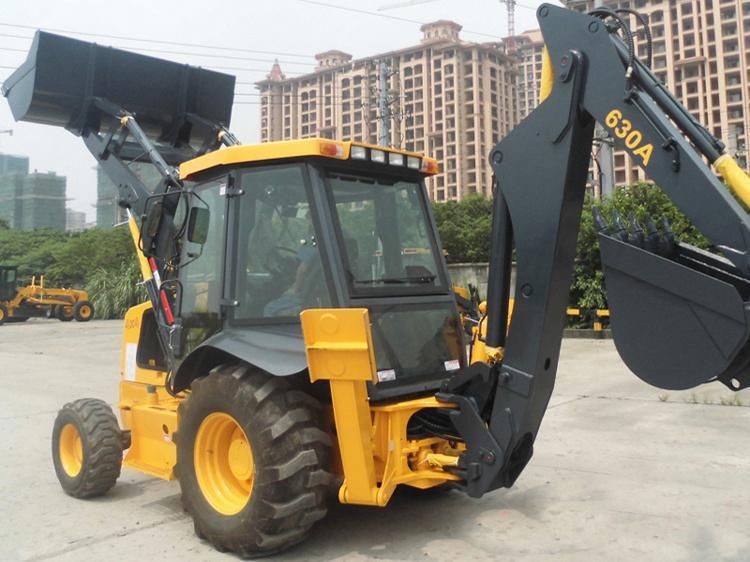

Cheapest Price 2ton Mini Changlin Backhoe Loader 620CH
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：620CH
- Type：Small Loader
- Transport Package：One Unit in One 40hq Container
- Specification：5930× 2078× 2850
- Trademark：shantui
- Origin：China
Description
1)To adopt the gearbox, torque converter to provide a supper power, walking steadily and higher reliability
2)To combined Excavator and loader as one machine, fully equipped with all function of mini excavator and loader, more suitable for operating in a narrow space, convenient and flexible, reducing the whole purchase coat and running cost.
3)Excavation and loading function are all pilot control, light and flexible, high efficiency.
4)Humanized designed 360 degree swivel seat, all stalinite cab, more broad vision and comfortable driving.
5)Excavation slideslip device make the excavation operations broader and more efficient.
6)For municipal, building, water conservancy, road, water, electricity, garden and other departments, engaged in agricultural construction, pipe laying, cable laying,landscaping and other jobs
Parameter:
Model | 620CH |
Length×width×height(mm) | 5835×2313×3548 |
Operating weight(Kg) | 8000 |
Diesel engine type | DongFeng 4BTA3.9-C110 /B4.5 /1104D |
Rated output(KW) | 82/74/74.5 |
Transmission case type | CARRARO |
Gear shift position | 4 Forward and 4 reverse gears |
Max. traction force(KN) | 70 |
Rated load(Kg) | 1700 |
Rated load bucket capacity(m3) | 1.0 |
Max. breakout force(KN) | 60 |
Max. dump clearance(mm) | 2714 |
Dump reach(mm) | 845 |
Wheel base(mm) | 2155.5 |
Total time of elevating, loading and unloading | 9.5 |
Rated digging bucket capacity(m3) | 0.2 |
Max. digging depth(mm) | 4405 |
Max. digging radius(mm) | 5390 |
Max. dumping height(mm) | 3510 |
Max. digging force(KN) | 56 |
