2.6t Crawler Excavator Long Boom Rubber Crawler Excavator Machine Manufacturer
JINING OKING TEC CO., LTD.- Type：Crawler Excavator
- Usage：Mining Excavator, Construction Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.08m3
Base Info
- Model NO.：OKW-2.6T
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000, EPA
- Condition：New
- Total Weight：2580kg
- Standard Bucket Capacity：0.08m3
- Engine Model：Laidong Three Cylinder Ll385b
- Rated Power/Speed：22.0kw,2350rpm
- Working Pressure：20MPa
- Rotation Speed：12rpm
- Working Device Form：Backhoe
- Maximum Excavation Height：3820mm
- Maximum Excavation Depth：2630mm
- Maximum Unloading Height：2320mm
- Maximum Ground Excavation Radius：3690mm
- Platform Ground Clearance：490mm
- Rear End Radius of Rotation：1920mm
- Track Width：250mm
- Transport Package：Wooden Case
- Specification：4120*1300*2400mm
- Trademark：OUKE
- Origin：China
- HS Code：8429521200
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. OKW-2.6T Size Medium-Sized Certification CE, ISO9001: 2000, EPA Condition New Total Weight 2580kg Standard Bucket Capacity 0.08m3 Engine Model Laidong Three Cylinder Ll385b Rated Power/Speed 22.0kw/2350rpm Working Pressure 20MPa Rotation Speed 12rpm Working Device Form Backhoe Maximum Excavation Height 3820mm Maximum Excavation Depth 2630mm Maximum Unloading Height 2320mm Maximum Ground Excavation Radius 3690mm Platform Ground Clearance 490mm Rear End Radius of Rotation 1920mm Track Width 250mm Transport Package Wooden Case Specification 4120*1300*2400mm Trademark OUKE Origin China HS Code 8429521200 Production Capacity 100 Sets Per MonthProduct Description
2.6T crawler excavator long boom rubber crawler excavator machine manufacturer
Product overview:
1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.

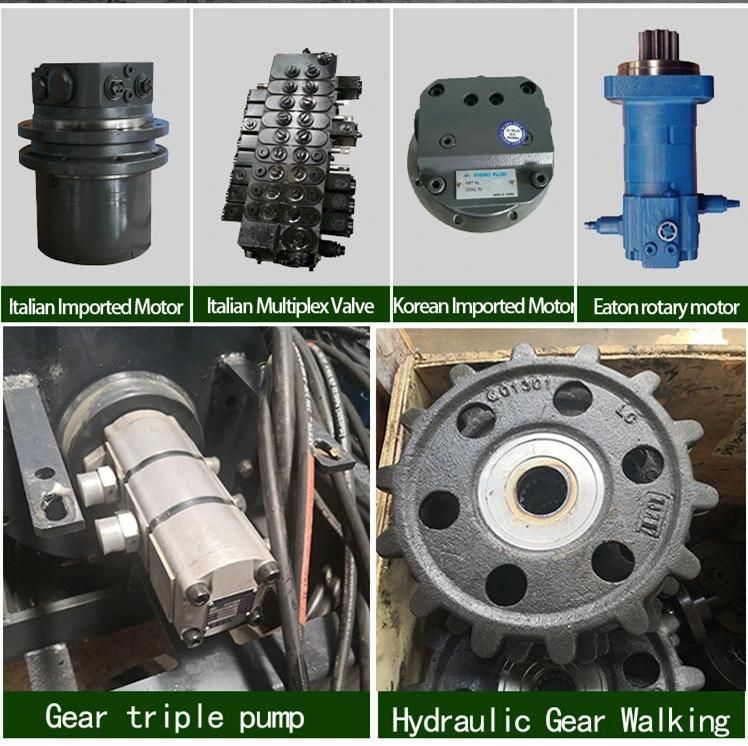

2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
4. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
5. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
6. Optional with tail or no-tail to meet the construction needs under different conditions.
7. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
8. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
Product Parameters:
| Model | OKW-2.6T |
| Total weight | 2580kg |
| Standard bucket capacity | 0.08m3 |
| Working device form | Backhoe |
| Engine Model | Laidong Three cylinder LL385B |
| Rated power/Speed | 22.0kw/2350rpm |
| Working pressure | 20Mpa |
| Rotation speed | 12rpm |
| Track width | 250mm |
| Total width | 1300mm |
| Total height | 2400mm |
| Total length | 4120mm |
| Platform ground clearance | 490mm |
| Maximum ground excavation Radius | 3690mm |
| Maximum excavation depth | 2630mm |
| Maximum excavation height | 3820mm |
| Maximum unloading height | 2320mm |
| Rear end radius of rotation | 1920mm |
Attachments:
It can equip with Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 400mm Standard Bucket, 500mm Leveling Bucket and other tools, machine utilization greatly improved.

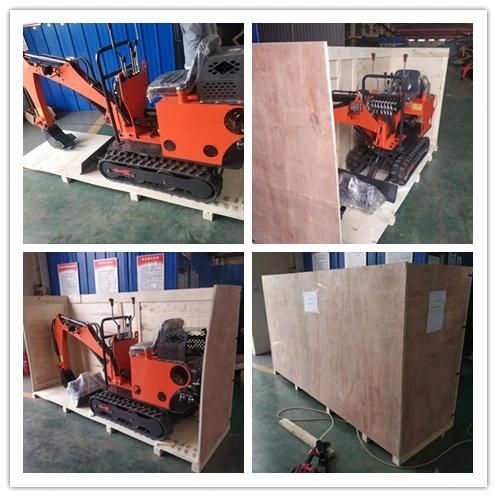

Our Packaging

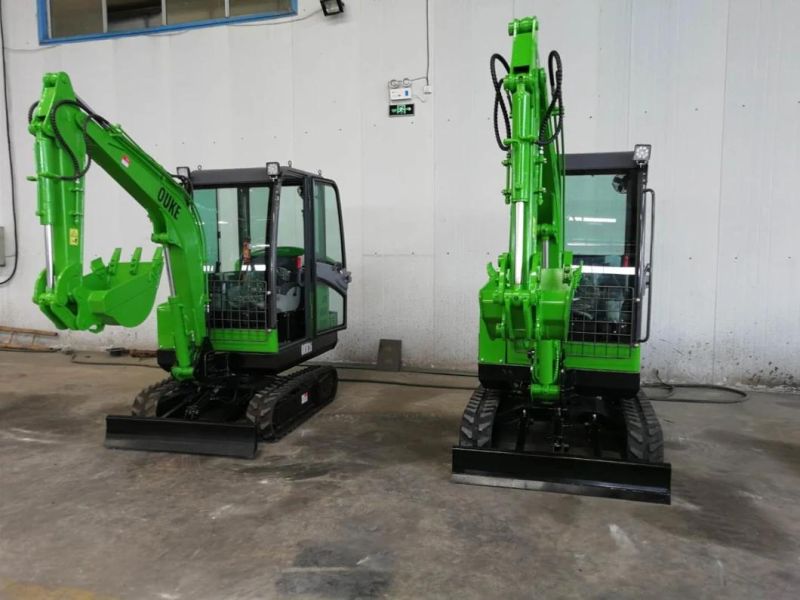

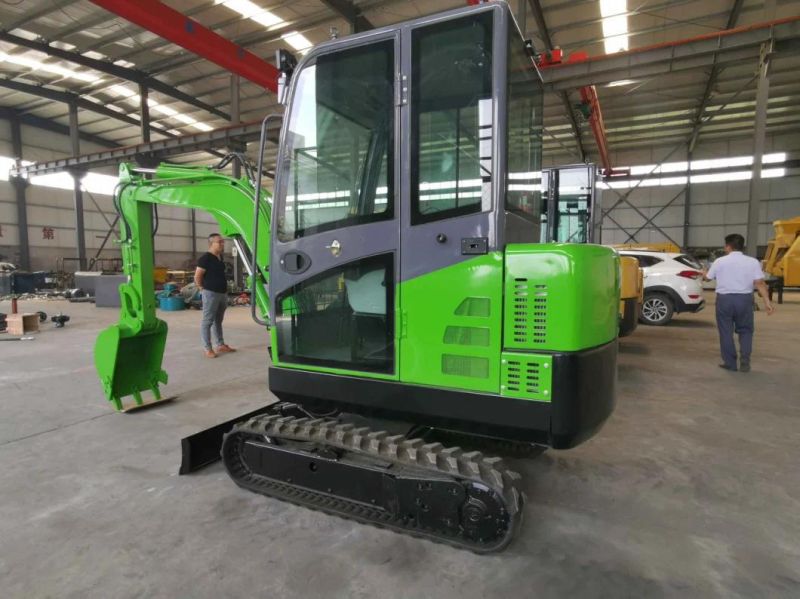

Our Products
