• Model NO.：OKW-2.6T
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000, EPA
• Condition：New
• Total Weight：2580kg
• Standard Bucket Capacity：0.08m3
• Engine Model：Laidong Three Cylinder Ll385b
• Rated Power/Speed：22.0kw,2350rpm
• Working Pressure：20MPa
• Rotation Speed：12rpm
• Working Device Form：Backhoe
• Maximum Excavation Height：3820mm
• Maximum Excavation Depth：2630mm
• Maximum Unloading Height：2320mm
• Ximum Ground Excavation Radius：3690mm
• Platform Ground Clearance：490mm
• Rear End Radius of Rotation：1920mm
• Track Width：250mm
• Transport Package：Wooden Case
• Specification：4120*1300*2400mm
• Trademark：OUKE
• Origin：Jining
• HS Code：8429521200
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. OKW-2.6T Size Medium-Sized Certification CE, ISO9001: 2000, EPA Condition New Total Weight 2580kg Standard Bucket Capacity 0.08m3 Engine Model Laidong Three Cylinder Ll385b Rated Power/Speed 22.0kw/2350rpm Working Pressure 20MPa Rotation Speed 12rpm Working Device Form Backhoe Maximum Excavation Height 3820mm Maximum Excavation Depth 2630mm Maximum Unloading Height 2320mm Ximum Ground Excavation Radius 3690mm Platform Ground Clearance 490mm Rear End Radius of Rotation 1920mm Track Width 250mm Transport Package Wooden Case Specification 4120*1300*2400mm Trademark OUKE Origin Jining HS Code 8429521200 Production Capacity 100 Sets Per Month

Product Description

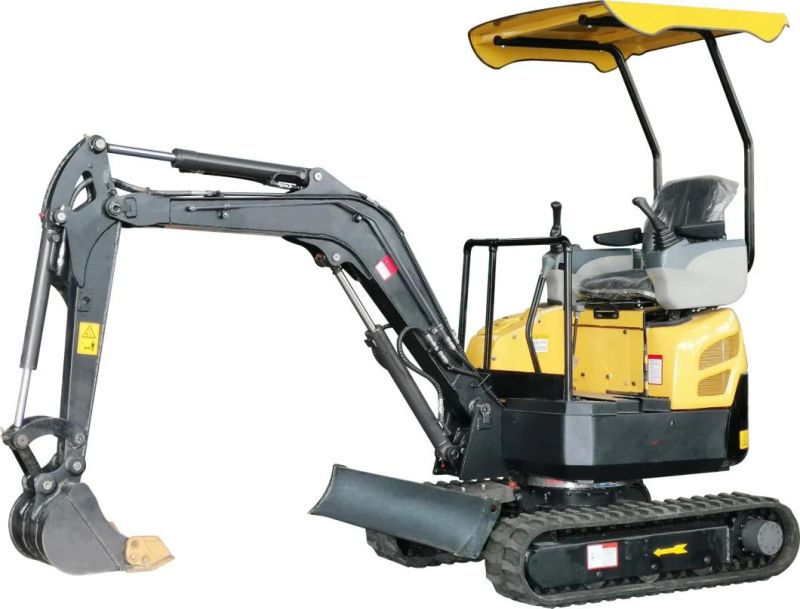

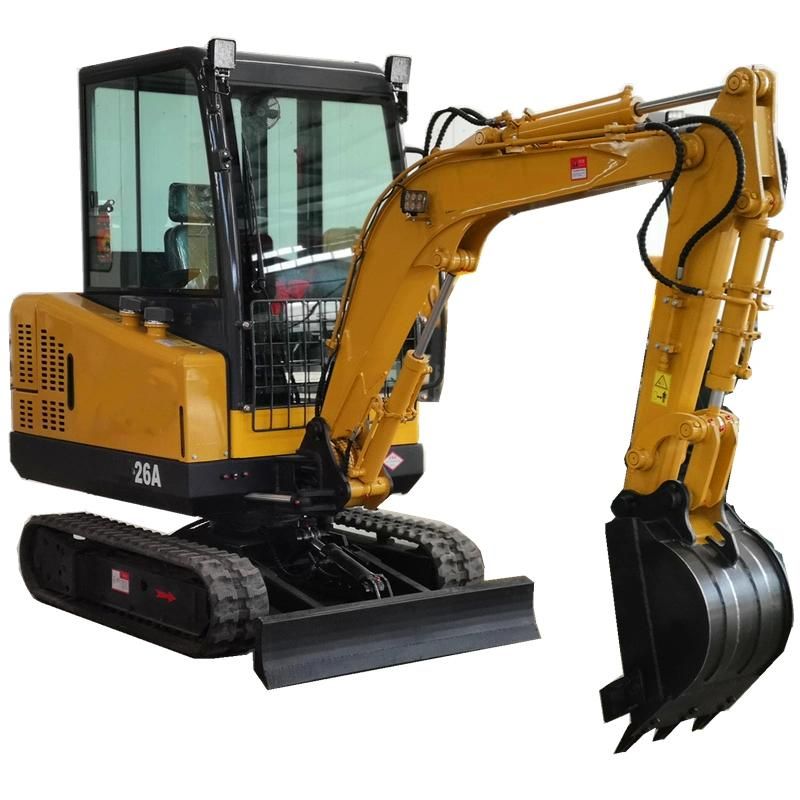

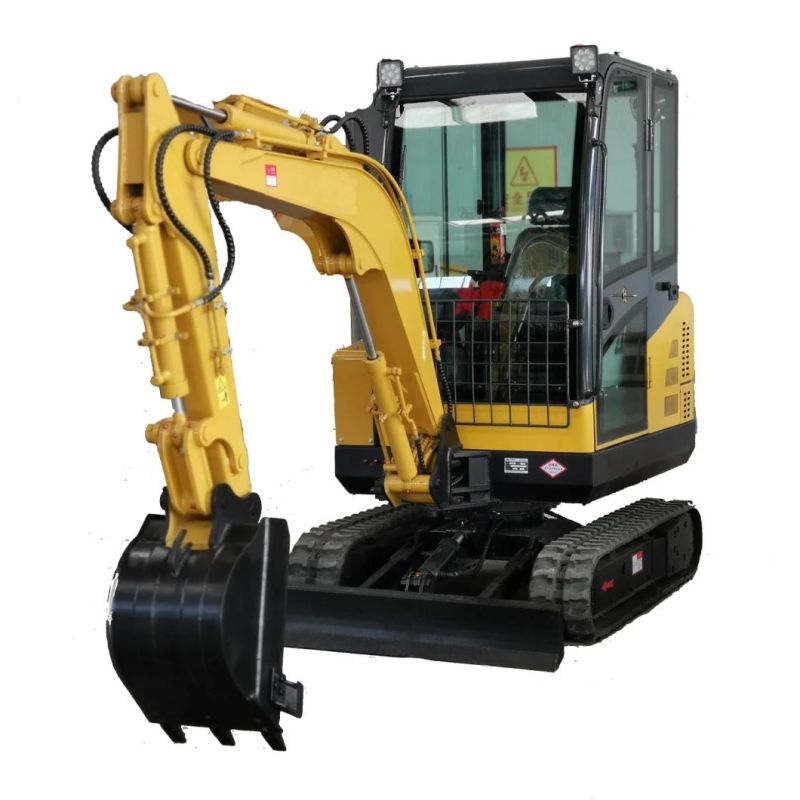

          2.6T crawler excavator long boom rubber crawler excavator machine manufacturer

Product overview:

1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
4. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
5. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
6. Optional with tail or no-tail to meet the construction needs under different conditions.
7. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
8. Made of German Continental  brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.

Product parameters:


Model	OKW-2.6T
Total weight	2580kg
Standard bucket capacity	0.08m3
Working device form	Backhoe
Engine Model	Laidong Three cylinder LL385B
Rated power/Speed	22.0kw/2350rpm
Working pressure	20Mpa
Rotation speed	12rpm
Track width	250mm
Total width	1300mm
Total height	2400mm
Total length	4120mm
Platform ground clearance	490mm
Maximum ground excavation Radius	3690mm
Maximum excavation depth	2630mm
Maximum excavation height	3820mm
Maximum unloading height	2320mm
Rear end radius of rotation	1920mm

Attachments:

It can equip with Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 400mm Standard Bucket, 500mm Leveling Bucket and other tools, machine utilization greatly improved.





Related product:
                                  2T Zero Tail Cheap Mini Excavator

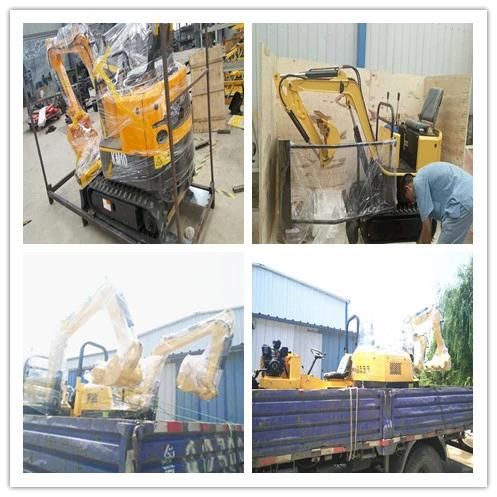

Packing and shipping:

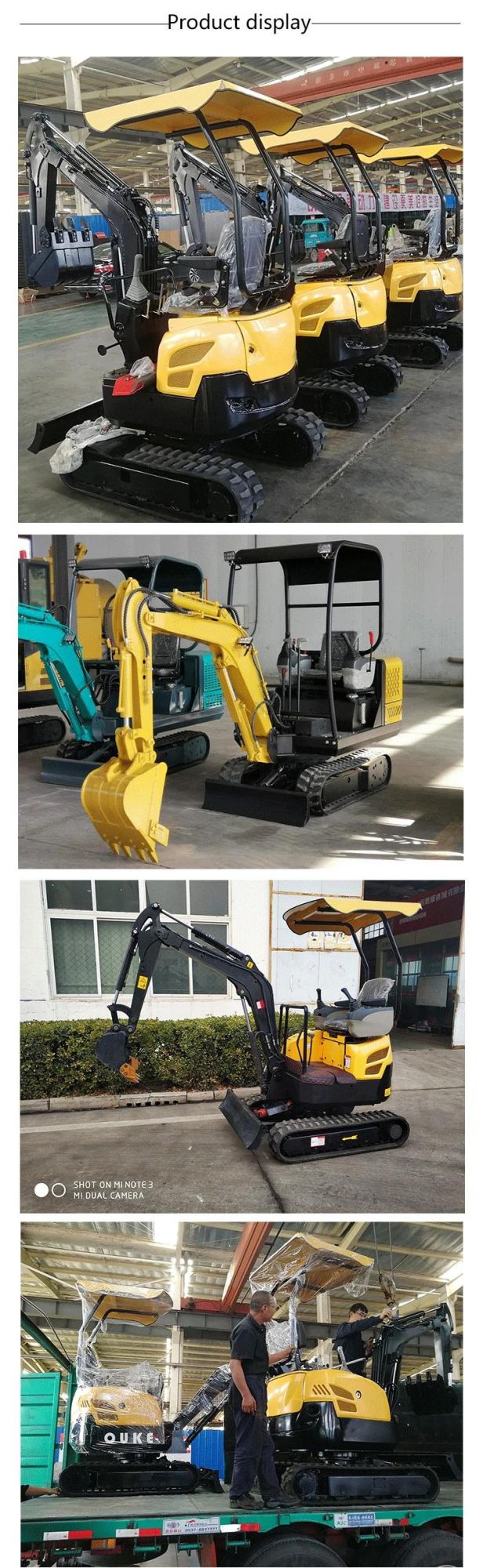

Workshop show:
