• Model NO.：JLAMD100
• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Weight：Apprx. 8500kg
• Driven by：Hydraulic System
• Work Unit：Pump, Bucket, Weed Cutter, Rake etc.
• Transport Package：Disassembled in Containers
• Specification：customized
• Trademark：JuLong
• Origin：Qingzhou City, Shandong, China
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. JLAMD100 Size Small-Scale Certification ISO9001: 2000 Condition New Weight Apprx. 8500kg Driven by Hydraulic System Work Unit Pump, Bucket, Weed Cutter, Rake etc. Transport Package Disassembled in Containers Specification customized Trademark JuLong Origin Qingzhou City, Shandong, China Production Capacity 50 Sets/Year

Product Description

Julong Amphibious Multi-Function Dredger
1. General Introduction
Julong amphibious multifunction dredgers are designed with pontoons and tracks, which can be used both on land and in water areas. It can be equipped with slurry pump, bucket, weed cutter, collecting rake and fork. The purposes are sand excavating, weed cutting, slurry pumping, weed collecting, etc.

2. General Specifications
Pontoon Length: 6m
Pontoon Width: 2.8m
Pontoon Height: 1.8m
Draft: ~1.3m
Working Depth: 1.5m
Track Width: 60cm
Driving Type: Hydraulic motor
Engine Power: 80KW

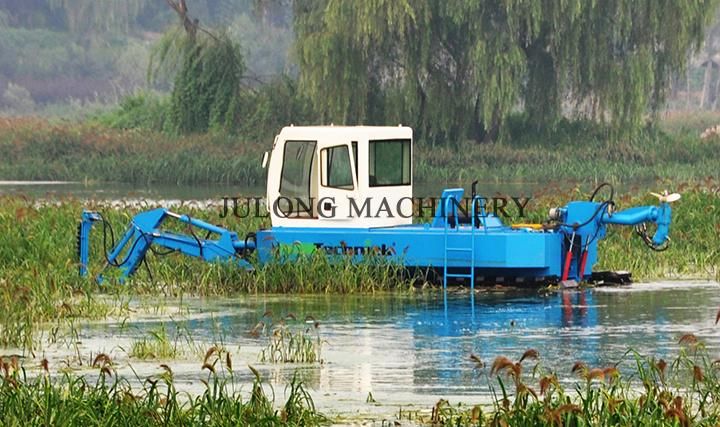

3. Photo of Dredger at Site


4. Dredger Features
1). Strong marine steel construction, approximately 8,500 kg, without attachments
2). Hydraulic track driven through hydraulic motors.
3). Forward crane ready for many attachments with available power up to 80 KW
4).Heavy duty Diesel engine certified to the latest standards of Tier IV emission and fuel consumption
5). Optimal configuration of power requirements and hydraulic unit (less operating costs)
6). Low ground pressure and good clearance on terrain, marches and swamps during on-land drives
7). Shallow vessel draft with low center of gravity for safe on-water maneuvering
8). High working range and wide swing radius of the hydraulic crane arm, ready for many attachments
9). Operating controls conveniently placed and adjustable to suit operator's seat position

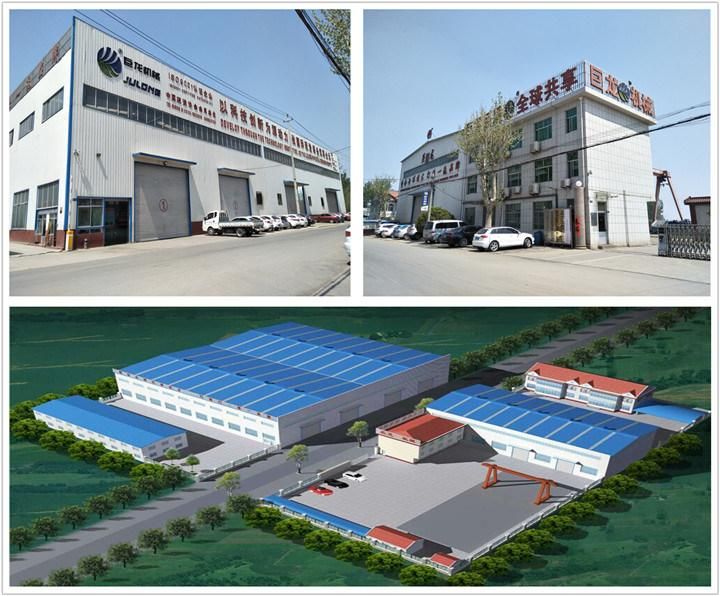

5. General Introduction about Julong Company
Qingzhou Julong Environment Technology Co., Ltd. is a professional manufacturer of dredgers, aquatic weed harvester, gold & iron mining machinery and sand processing machinery, with about 30 years' experience. With an excellent technology team, we can design and manufacture highquality dredgers and machinery according to customers' requests. Our products are famous for easy operation, reliable performance, low cost and long working life. JULONG machines have been exported to dozens of countries in Southeast Asia, South Asia, Africa, and South America.


6. Julong Certificates


Contact us
Ready dredgers are in Julong workshop.
Welcome to Julong for dredgers inspection.
