• Model NO.：AG200-5
• Engine Brand：Cummins Qsb6.7-C220
• Rated Power/Speed：164,2200 Kw,Rpm
• Emissions：Tier III
• Weight of Typical Type：16000kg
• Forward/Reverse Gears：5,5
• Speed Forward：6,10,16,28,38 Km,H
• Speed Reverse：6,10,16,28,38 Km,H
• Max.Hydraulic Pressure：18 MPa
• Transmission System Pressure：1.6-2.3 MPa
• Transport Package：Motor Grader Comply with Export Packaging Requirem
• Specification：SAG200-5
• Trademark：SANY
• Origin：China
• HS Code：842920900
• Production Capacity：50000

Basic Info.

Model NO. AG200-5 Engine Brand Cummins Qsb6.7-C220 Rated Power/Speed 164/2200 Kw/Rpm Emissions Tier III Weight of Typical Type 16000kg Forward/Reverse Gears 5/5 Speed Forward 6/10/16/28/38 Km/H Speed Reverse 6/10/16/28/38 Km/H Max.Hydraulic Pressure 18 MPa Transmission System Pressure 1.6-2.3 MPa Transport Package Motor Grader Comply with Export Packaging Requirem Specification SAG200-5 Trademark SANY Origin China HS Code 842920900 Production Capacity 50000

Product Description

Sany SAG200-5 motor grader is featured by the hydraulic drive, stepless speed change, and simplified operation. The 200hp hydraulic motor grader with German Bosch fuel injection leads to low exhaust emissions.

Composite transmission, Intelligence and high efficiency, Heavy load and reliability

Integrated with the mechanical and hydraulic transmission features wide speeds, high power shift efficiency and powerful working ability.

Self-adaptive load control and steering technology eliminates frequent gear shifting and ensures high working efficiency.

Reliable and durable Meritor rear axles feature imported bearings and extra rigid drive chain.

The high torque, overload protected circle drive motor and gearbox allow precise positioning of the moldboard and blade.

High precision circle bearing is maintenance free.

Self-diagnosis function, centralized electrical components and filters are among the operator and service friendly features



Specification of SANY SMG200-3 Small Road Constuction Used Motor Grader For Sale

ENGINEEngine model: Cummins QSB6.7-C220Emissions: Tier IIIRated power/speed: 164/2200 kW/rpmMax.torque/speed: 949/1500 N.m/rpmPOWER TRAINForward/Reverse gears: 5/5Speed forward: 6/10/16/28/38 km/hSpeed reverse: 6/10/16/28/38 km/hHYDRAULIC SYSTEMMax.hydraulic pressure: 18 MpaTransmission system pressure: 1.6-2.3 MpaOPERATING SPECIFICATIONSMax. front wheel turning angle: ±50°Max.front wheel tilt angle: ±17°Max.oscillation angle of front axle: ±16°Max.oscillation angle of tandem box: ±15°Min.turning radius: 7.4 mRear axle ground clearance: 400 mmBLADE RANGEMoldboard width×Arc radius: 3660×620 mmMax.blade position angle: ±90°Blade==Max.lift above ground: 480 mmBlade==Max.depth of cut: 715 mmBlade tip range: 27°-72°Circle rotation: 360°Max.penetrating angle: 63°RIPPERMax.scarifying depth: 435 mmRipper==Max.lift above ground: 595 mmMax.departure angle: 15°Ripper==Max.working width: 2060 mmDOZER PLATEDozer==Max.depth of cut: 229 mmDozer==Max.lift above ground: 614 mmDozer==Max.working width: 2740 mmWEIGHTSOperating weight (Standard): 16000 kgMax.operating weight: 17920 kgDIMENSIONSDimensions (Standard): 9000×2680×3260 mmDimensions: 10900×2740×3260 mm

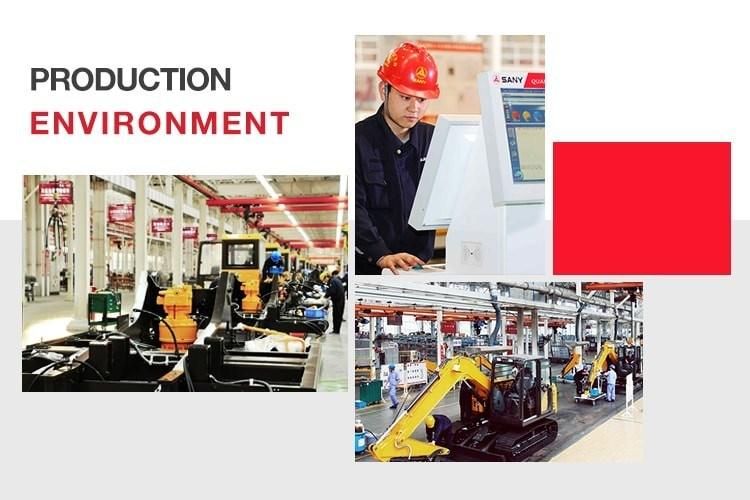

 Producing Environment
