• Model NO.：SD7
• Color：Yellow
• Shipping Method：Roro
• Transport Package：Nude Package
• Specification：ISO, CE
• Trademark：hbxg
• Origin：Shandong, China (Mainland)
• Production Capacity：1500 Units, Year

Basic Info.

Model NO. SD7 Color Yellow Shipping Method Roro Transport Package Nude Package Specification ISO, CE Trademark hbxg Origin Shandong, China (Mainland) Production Capacity 1500 Units/ Year

Product Description

ABOUT US:
As a leading Chinese machinery and truck exporter, we have a professional experience of 8years in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service.  We will always do our best to solve all the problems and put our customer's interests in the first place.

We can supply:
1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)
2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

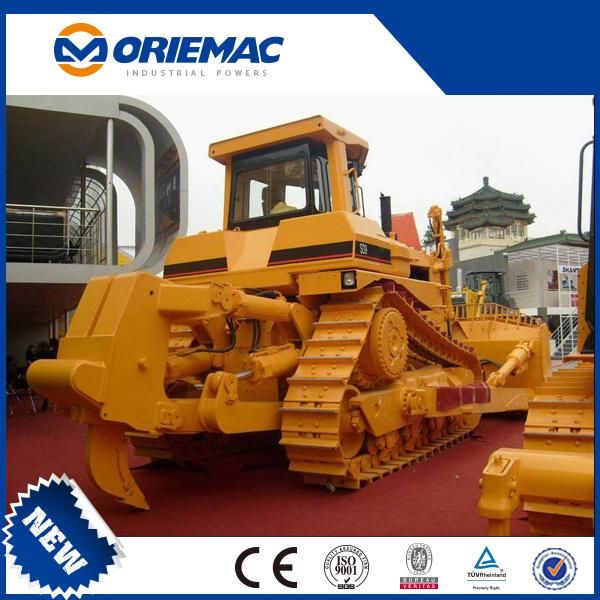

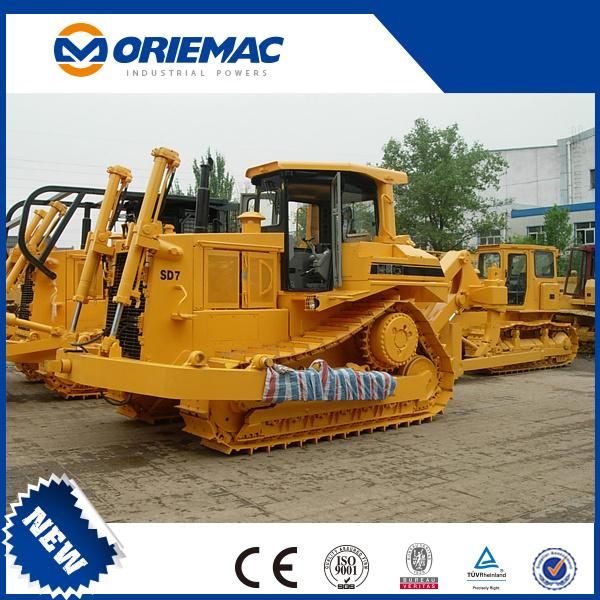

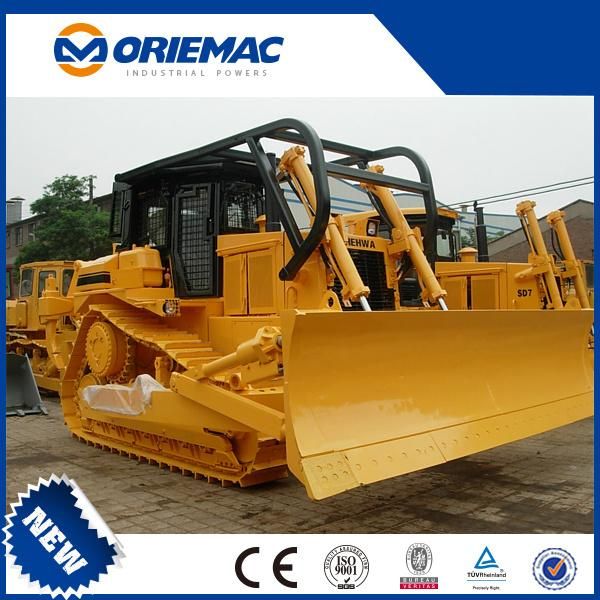

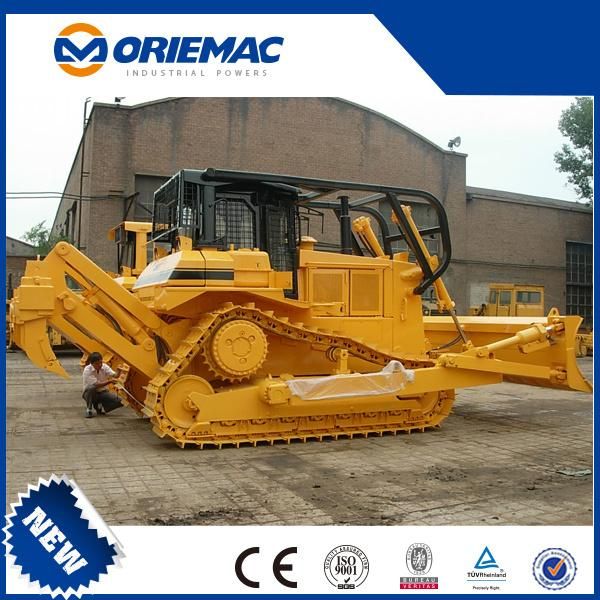

Cheap HBXG brand 230 HP hyaraulic bulldozer SD7
Main parametes:
1,General Specifications

Blade	Straight and Tilting
Operation weight:(kg)	23800(without ripper)
Ground pressure:(kpa)	71.9
Track gauge(mm)	1980
Min. ground clearance:(mm)	404
Gradient:	30°/25°
Dozing capacity:(m3)	8.4
Blade width:(mm)	3500
Max. digging depth:(mm)	498
Overall dimensions:(L×W×H)(mm)	5677×3500×3402

2,Undercarriage System

Type:	The track is triangle shape,the sprocket is elevated elastic suspended.
Number of track rollers(each side)	7
Pitch (mm)	216
Width of shoe (mm)	560

3,Gear

	1st	2nd	3rd
Forward (Km/h)	0-3.9	0-6.5	0-10.9
Backward (Km/h)	0-4.8	0-8.2	0-13.2

4,Engine

Engine Name:	Cummins NTA855-C280S10
Rated revolution:(rpm)	2100
Flywheel power:(kw)	169
Max.torque:(N.m/rpm)	1097/1500
Rated fuel consumption:(g/kw.h)	≤235

5,Implement Hydraulic System

Max. system pressure:(Mpa)	18.6
System output:(L/min)	194
Pump type:	Gears oil pump

6,Driving System

Torque converter:	Torque converter is power separating hydraulic-mechanic type.
Transmission:	Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch:	The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch:	The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive:	The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
