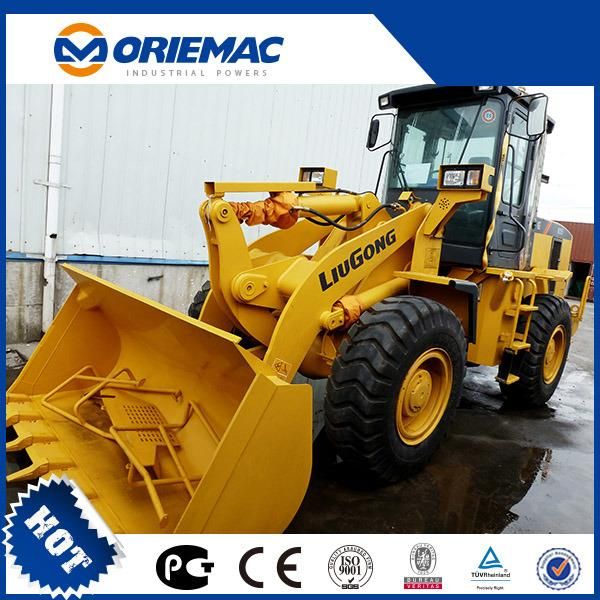

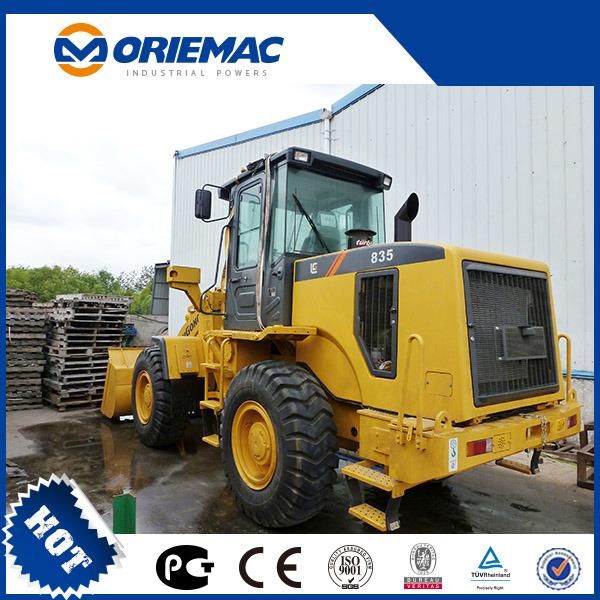

• Model NO.：835
• Transport Package：in Nude
• Specification：ISO; CE
• Trademark：LIUGONG
• Origin：Jiangxi, China
• HS Code：8701100000
• Production Capacity：3000

YUCHAI
CHINESE ZF GEARBOX, A/C, PILOT CONTROL, FOPS/ROPS CABIN, 3.0CBM BUCKET

Engine:6BT5.9
Model
Yuchai
Rated load
3000Kg
Operating weight
10200Kg
Rated bucket capacity
1.7m3
Max. breakout force
90kN
Max. dump clearance
3160mm
Dump reach
1050mm
Dump angle at any position
≥45°
Digging depth(with bucket bottom horizontal)
212mm
Min. turning radius
-----Outside of bucket
5600mm
-----Outside of rear wheel
5205mm
Oscillating angle of rear axle
±11°
Lifting time of bucket
≤5.8s
Lowering time of bucket
≤3.77s
Dumping time
≤1.43s
Working Equipment
Model of oil pump
CBGj2100
System pressure
16Mpa
Model of multi-way directional valve
DF25.2C
Pilot valve
DJS2-UX/UU
Axle And Tyre
Type of main reducer
Spiral bevel gear, single stage
Gear ratio of main reducer
5.286
Type of final reducer
Single stage planetary
Gear ratio of final reducer
4.75
total ratio
25.1
Max. tractive force
93.5kN
Tyre size
17.5-25
Transmission System
Torque Converter
Type
3-elements,single stage(Shantui)
Torque ratio
3.1
Cooling type
Pressure oil circulating
Gear box
Type
Power shift(China advance)
Gear shifts(Forward/Reverse)
F4/R2
Traveling speed(Km/h)
Forward/Reverse
7.7/9.5
Forward/Reverse
13/18
Forward
25
Forward
40
Braking System
Service brake
Air over oil activate 4 wheel brake with capliar disc brake
Air pressure
0.68Mpa
Parking brake
Draper -type soft axle control
Steering System
Type
Middle articulated frame. Co-axis flow amp.steering
Model of steering pump
CBGj2050
Model of redirector
BZZ5-E400C
System pressure
14MPa
Articulated steering angle
38±1°(L/R
